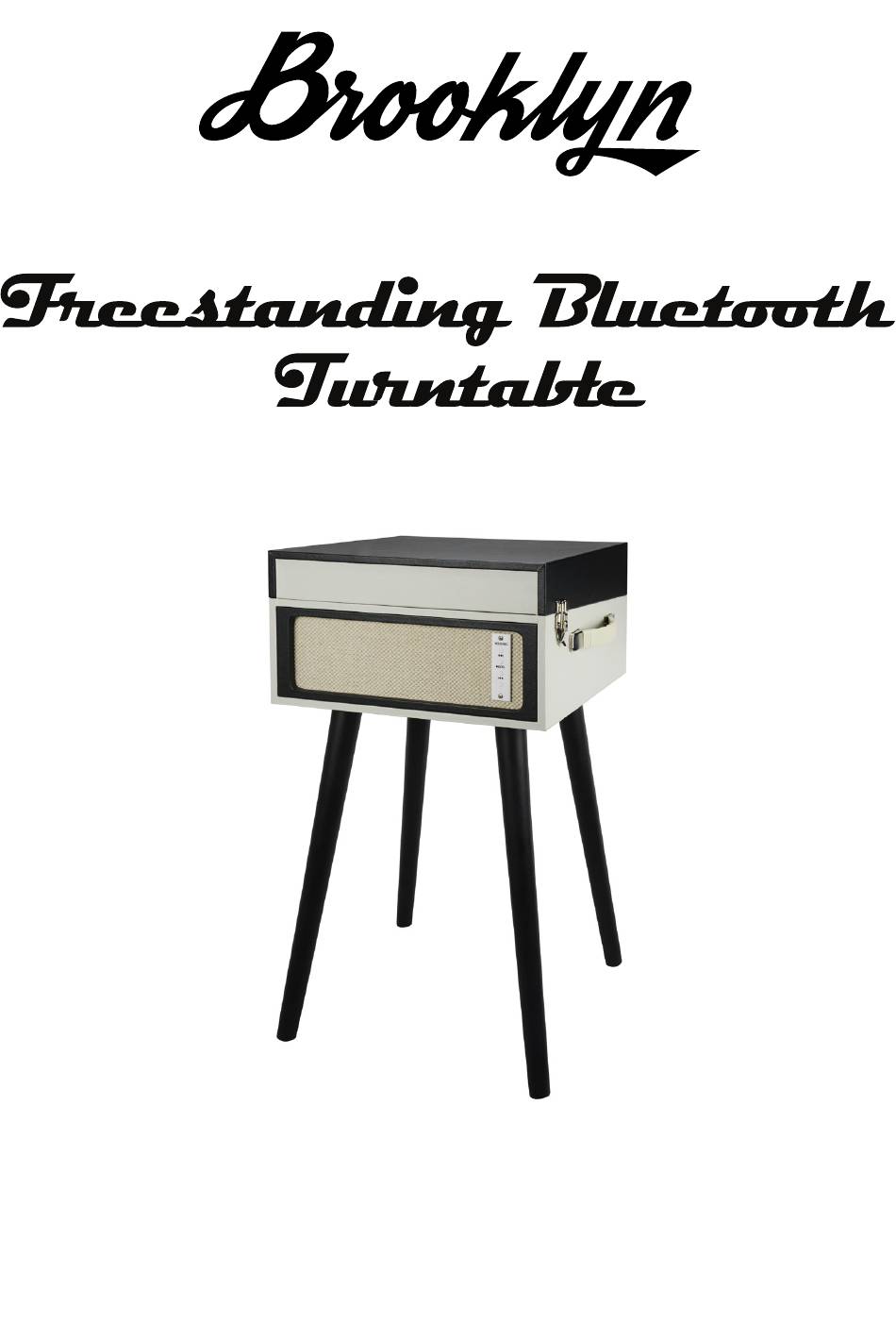

- Page 1 BTR80L Instruction Manual Please read this manual carefully before using, and keep it for future reference.
-
Page 3: Table Of Contents
Contents General Safety Product Overview Basic Operation Power Connection Mode Selection Phono (Record) Bluetooth USB/SD Card Encoding (recording) USB/SD Card Media Playback AUX IN Headphone Jack Specification Customer Support... -
Page 4: General Safety
General Safety Read this manual thoroughly before you start using the turntable. Store this manual, the completed warranty card, your receipt and the product packaging. The safety precautions instructions reduces the risk of fire, electric shock and injury when correctly complied to. Please follow all instructions and take notice of all warnings. - Page 5 General Safety (Cont.) IMPORTANT INFORMATION • Do not expose this product to rain or moisture as it may result in fire or an electric shock hazard • Do not temper or change or modify the product in any way. • Only use Accessories outlined and recommended by the manufacturer. •...
- Page 6 General Safety (Cont.) • If you notice any unusual odors or smoke around the unit, immediately disconnect the unit from the outlet and contact the service center. Failure to do so may result in fire or electric shock. • Please beware that Dust could accumulate over time on the unit and cause it to generate heat and or deteriorate insulation, which in turn may result in an electrical fire.
-
Page 7: Product Overview

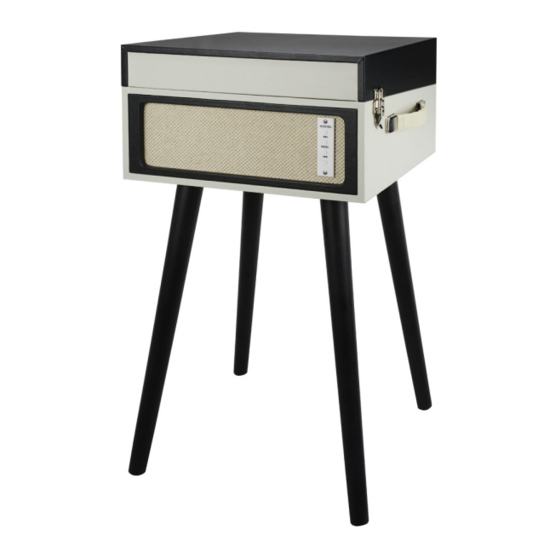

Product Overview 1. Lock Catch 10. Mode: Turntable/USB/SD/Bluetooth 2. Dust Cover 11. Next Music 3. 45rpm adaptor 12. Pause/Play/DEL 4. Speed Selection - 33, 45, 78 rpm 13. Previous Music 5. Auto Stop Control 6. Carrying Handle 7. Detachable Leg 8. -
Page 8: Basic Operation
Basic Operation Power connection 1. Plug in the DC plug provided into the back of the turntable, then the USB into a powered USB Port. Mode Selection This Turntable automatically detects the mode you want to use. Bluetooth - Default mode - will turn on automatically and will enter pairing mode. -
Page 9: Bluetooth
When powering on the unit, the turntable will automatically enter Bluetooth pairing mode. 2. Search for BTR80L on your smart device BT settings 3. Once connected, you can play any song you desire. 4. Turn the Power Dial to adjust the volume up or down. -
Page 10: Aux In
Basic Operation (Cont.) AUX IN Before starting - Please action the following: • To use this mode, please have a 3.5mm AUX cable, this is so you can play music from your device through the Turntable speakers. • Turntable will automatically change modes once AUX is plugged in. Insert AUX IN cable in the back of the turntable, into your device you wish to play music from. -
Page 11: Specification
Specifications Power Input 5VDC 1A USB Output 5VDC 0.5A Power Consumption Audio Output 5W*2 - Built-in Speakers Dimensions 380 (w) x 350 (d) x 705 (h) mm Weights Net: 6.63 kg / Gross: 7.68 kg... - Page 12 CUSTOMER HELPLINE: info@ayonz.com DISTRIBUTED BY: Ayonz Pty Ltd...
