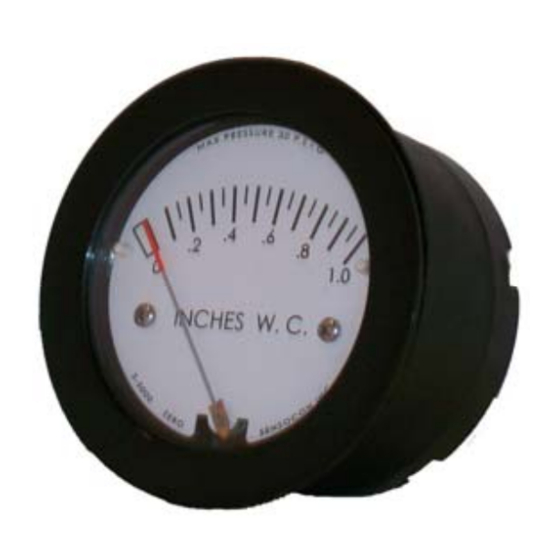

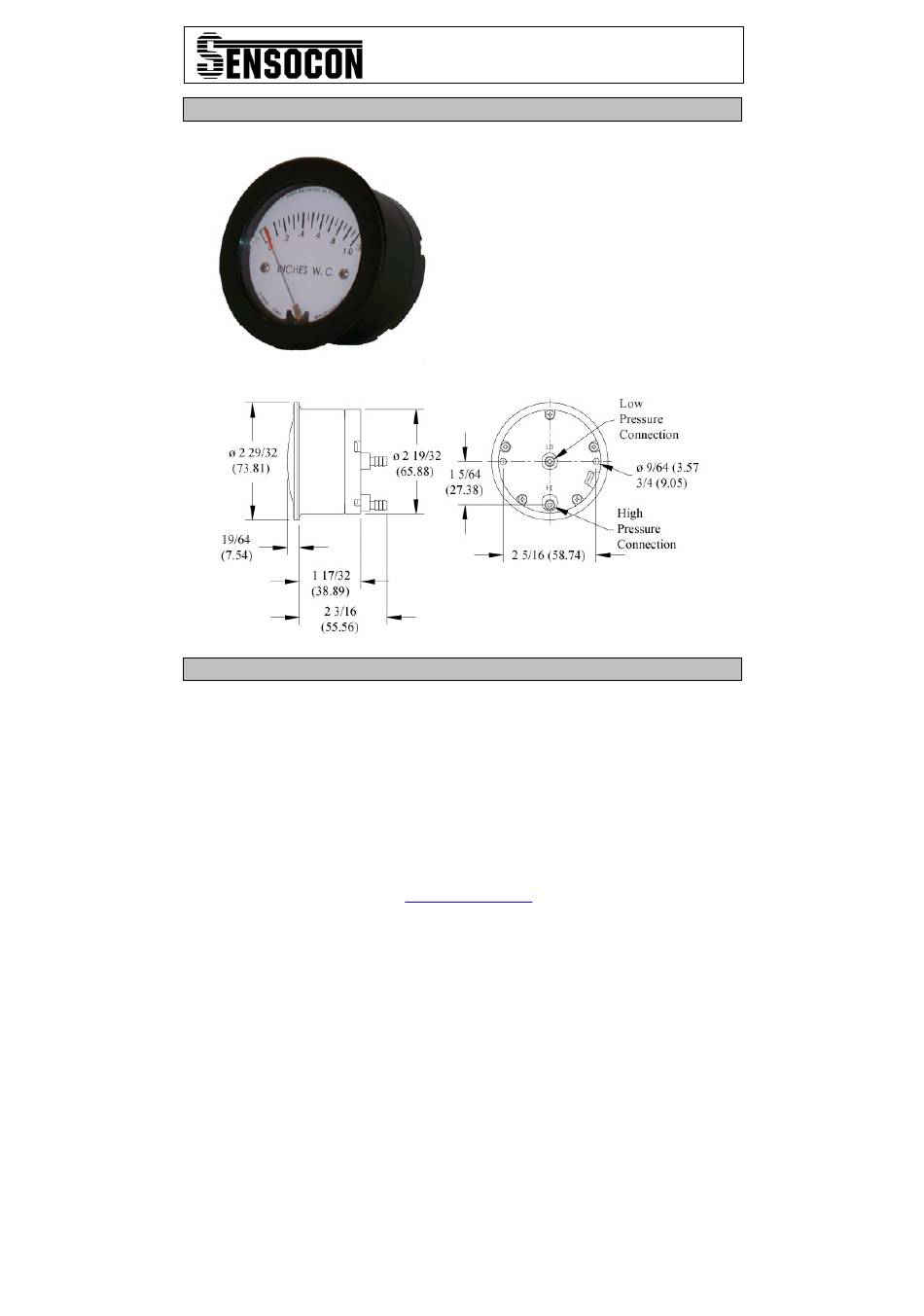

1. Specifications
2. Installation
•
Upon receipt please inspect the instrument for the intended application
pressure range.
•
Install the instrument in a location free from excessive vibration and where
the ambient temperature will be between 20°F and 120°F (-6.7°C to 49°C)
•
All standard S-5000 gauges are calibrated in the vertical position. To
maintain the specified accuracy, the gauge must be mounted in the vertical
position.
(863) 248-2800
Installation and Operation
Manual
Pressure Limits: 30 PSI (2.067 bar)
continuous to either pressure connection; 50
PSI (3.455 bar) surge.
Media Compatibility: Air and compatible
non corrosive gasses
Accuracy: +/- 5% full scale at 70°F (21°C)
Temperature Range: 20 to 120°F (-6.7 to
49°C)
Process Connections: barbed connections for
3/16" I.D. tubing
Housing: Glass-filled nylon, polycarbonate
cover.
Mounting: Vertical, consult factory for other
postitions
Weight: 6 oz (170 g)
www.sensocon.com
Bulletin 104-0
Series S-5000
- 1 -
Advertisement
Table of Contents
Summary of Contents for Sensocon S-5000
- Page 1 Install the instrument in a location free from excessive vibration and where the ambient temperature will be between 20°F and 120°F (-6.7°C to 49°C) • All standard S-5000 gauges are calibrated in the vertical position. To maintain the specified accuracy, the gauge must be mounted in the vertical position.
- Page 2 Installation and Operation Series S-5000 Manual 3. Mounting Surface Mounting Flush or Panel Mounting Drill two 5/32” (3.97 mm) holes on a Cut an opening in the panel 2 5/8” in horizontal line, 2 1/3” (59.26 mm) diameter. Install the mounting studs apart for mounting screws.
