Taga Harmony TWA-10B Instruction Manual

Wireless streaming adapter

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

TWA-10B

WIRELESS STREAMING ADAPTER

Instruction Manual

Edition 04-2022

Table of Contents

Need help?

Do you have a question about the TWA-10B and is the answer not in the manual?

Questions and answers

Summary of Contents for Taga Harmony TWA-10B

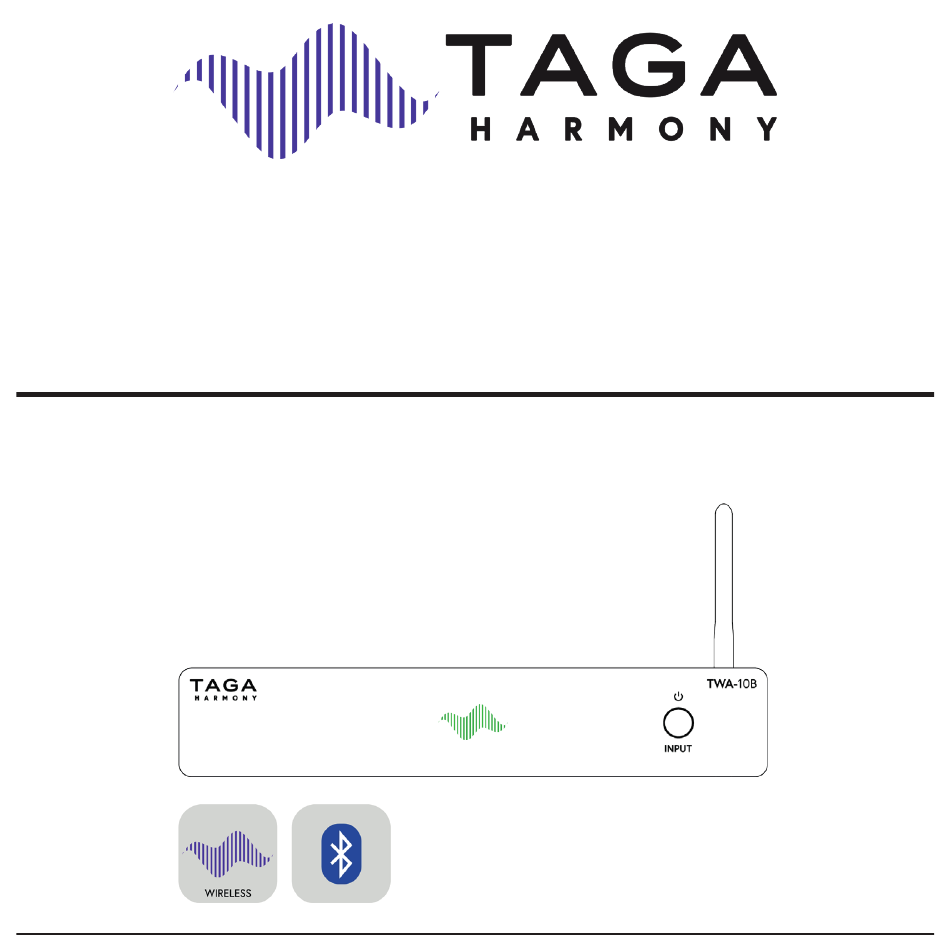

Page 1 TWA-10B WIRELESS STREAMING ADAPTER Instruction Manual Edition 04-2022...
Page 3 The TWA-10B can be quickly and easily connected to your existing audio system and transform it to a thrilling digital smart system! KEY FEATURES: ®...
Page 4 Introduction Cleaning Do not use strong or abrasive cleaners. Use a damp, soft cloth for cleaning. Specifications and the latest instruction manual edition Full technical specifications and the latest edition of the instruction manual are available on www.TagaHarmony.com...
Page 5: Table Of Contents
Contents Safety Instructions Front and Rear Panel Hooking Up the Streaming Adapter Input Indicator Status Connection Options - Bluetooth | Wireless (wi-fi) | LAN Wired ® Operation Control Application Playback from computers Interferences with tube devices Trademarks and Software Notice Kit Content Serial Number and MAC Address Specifications...
Page 6: Safety Instructions
Safety Instructions IMPORTANT READ THIS SECTION CAREFULLY BEFORE PROCEEDING! An exclamation mark in a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS OR THE POWER ADAPTER TO RAIN OR MOISTURE, AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD NOT BE PLACED ON THIS APPARATUS OR ON THE POWER ADAPTER.
Page 7 Safety Instructions 1. Read Instructions - All the safety and operating instructions 10. Grounding and Polarity - some units for proper operation or should be read before the product is operated. to take full advantage of their capabilities may require to be 2.
Page 8 Safety Instructions 16. Damage Requiring Service - Unplug this product from wall outlet 18. Safety Check - Upon completion of any service or repairs to this and refer servicing to qualified personnel under the following product, ask the service technician to perform safety check to conditions: determine that the products is in proper operating condition.
Page 9: Front And Rear Panel
Front and Rear Panel Front Panel: Input Indicator White – Network: Wireless (wi-fi) and Wired (LAN), Blue – Bluetooth ® Green – Spotify connect, Red – Standby mode Touch 2-function Button: - Standby Button To turn the unit ON (when it is OFF) - press once To turn the unit OFF - long press - Input (Source) Selection Button - short press to select inputs...
Page 10 Front and Rear Panel Rear Panel: Wireless (wi-fi and Bluetooth ) Antenna Socket ® Reset Button Short press once – reset the Wireless (wi-fi) connection Short press twice – reset the Bluetooth connection ® Long press – restore factory settings Wired connection to the local network device Analog Stereo RCA Output (R and L) Digital Coaxial Output...
Page 11: Hooking Up The Streaming Adapter
Hooking Up the Streaming Adapter Smartphone, tablet, etc. Amplifier etc. Soundbar etc. Wireless (wi-fi) Wireless RCA-RCA Digital antenna interconnect optical cable Smartphone, tablet, RJ45 Ethernet Digital USB type-C computer, etc. cable coaxial power cable cable Wired Power adapter (LAN) Router Receiver etc.
Page 12 If you want to connect to the local area network by wire: using an RJ45 Ethernet cable connect the Streaming Adapter to your local network device (router, access point etc.). Check “Connection Options” for more details. External audio equipment connection options: Signal TWA-10B Audio equipment Connection cable Output Input Analog...
Page 13: Input Indicator Status
Standby mode (the unit turned off) Connection Options The Streaming Adapter device name is “TWA-10B ####”, where #### is 4 last hex digits of its unique MAC address. BEFORE BEGINNING After turned on for the first time or after restoring factory setting, the Streaming Adapter will start in the Bluetooth input.
Page 14 Bluetooth devices. ® After a short time “TWA-10B ####” will appear on the screen. Select “Pair” on your audio source device to connect with the Streaming Adapter. After the connection is successful the Input Indicator will be illuminated continuously in blue and it will remain illuminated as long as the current connection is active.
Page 15 ® device. If your audio source device is not able to find the “TWA-10B ####” Bluetooth ® device or connect to it then reset the connection by short press twice the Reset Button.
Page 16 Connection Options use your location (GPS), to use Bluetooth – accept to continue. ® Note! The GPS use permission is required for the setup – once the setup is finished, you can disable it in the settings of your mobile device. Application will start searching for compatible devices and when found will list out all devices available for setup –...
Page 17 Connection Options 2.The device setup screen will be displayed with information about the status of the Input Indicator - make sure it is flashing in white (if it is not then reset your Wireless (wi-fi) connection - check “Operation” for more details), tap on indicator is blinking. Note! Occasionally, it may be required to reset your Wireless (wi-fi) connection again and repeat the search.
Page 18 Connection Options III. LAN WIRED CONNECTION (on mobile devices) Connect the Streaming Adapter with the RJ45 Ethernet cable to your local network device. Open the Control Application - the system will ask for your permission to use multimedia library and files, to find and connect to devices on your local network, to use your location (GPS), to use Bluetooth –...
Page 19: Operation
Operation Standby Mode When you connect the Streaming Adapter to the electrical outlet for the first time, it will start in the Standby mode. Turn ON – press once the Standby Button Turn OFF – long press the Standby Button Note! The Streaming Adapter will start in the last selected input before it was turned off (Bluetooth input is default –...
Page 20 Operation Reset When the Streaming Adapter is turned on. I. Wireless (wi-fi) connection reset – short press once the Reset Button to reset this connection. II. Bluetooth connection reset – short press twice the Reset Button to reset this ® connection.
Page 21: Control Application
Control Application This Streaming Adapter may be controlled from a mobile device by third-party applications, such as for instance 4STREAM or WiiM Home, which are available on the Apple App Store and the Google Play Store. ® ® 4STREAM WiiM Home...
Page 22 Control Application APPLICATION OPTIONS Note! Settings and operation in this manual are shown based on the 4STREAM application. Operation and user interface may vary depending on the mobile device model, its operating system, Control Application and its version. The application may not be available in your language, some options and descriptions may not be translated or incorrectly translated into your language.
Page 23 Control Application MAIN OPTION - DEVICE Top bar Play / Pause All Add Device Playback control Adding a new for all devices. Device to the list. When adding a new device, follow the instructions for connecting to the Wireless (Wi-Fi) or Wired (LAN) network provided in „Connection Options”. List of added Devices List of all added streaming Devices.
Page 24 Control Application Add / Remove a Device to Multiroom To add: - Tap on the icon of the device you want to be the Master device. - A list of available devices will pop out and you can select the device you want to add as the Slave device.
Page 25 Control Application Device Volume Settings Level Left and Right Channel You can configure playback according to below options: LR - Stereo L - Only the Left channel of the audio source device is output to both speakers R - Only the Right channel of the audio source device is output to both speakers Distortion and sound quality worsening may occur when the volume level is too high.
Page 26 Control Application Settings Rename: Change the device name. Speaker Info: Display device information EQ: Not active for this such as a wi-fi status, wi-fi Streaming Adapter. strength, IP an MAC Alarm Clock: address, SSID, firmware Setup up to 4 different alarm version and restore factory clocks with music of your choice.
Page 27 Control Application Track progress bar Information Volume Level...
Page 28 Control Application Preset Add / Remove from favorites Add to playlist Alarm Sleep Timer countdown to turn off the playback Play / Pause Repeat All playback Repeat the song Stop playback Random playback Previous / Next track Skip backward / forward Playlist and Add to Presets Content...
Page 29 Control Application MAIN OPTION - BROWSE Preset Preset Content 10 Preset content buttons. My library Favorites Quick access to your favorite playlists on your mobile device. You can preset up to 10 favorite playlists on the application for easy access. Note! Playlists are accessible only from the application.
Page 30 Control Application Music service List of added Streaming and Internet Radio Services Note! It may be required to register an account on a service provider platform in order to use their online streaming service. Some streaming services and internet radio may require paid subscription.
Page 31 Control Application Select source on Device Select the Network (Wi-Fi) or the Bluetooth input (source) for playback. ® To change from the Bluetooth source to Network, you can just choose one of the ® streaming / internet radio services or mobile device local storage music or any music via DLNA or UPnP streaming.
Page 32: Playback From Computers
Playback from computers There are several methods and computer programs compatible with this product which allow to play music from local storage, media library and online services. You can use a freeware PC music player for Windows to play files using UPnP protocol, ®...
Page 33: Trademarks And Software Notice
Third-party applications and software recommended in this manual are provided for your convenience only and should be used at your own risk. TAGA Harmony does not provide technical support for third party software and does not guarantee their proper operation.
Page 34: Kit Content
We strongly advise to contact a professional installer or dealer in order to install TAGA Harmony products. We recommend using high quality TAGA Harmony cables and other installation accessories. We reserve the right to change the technical data and the design of the product without...
Page 35 DA converter: ESS SABRE ES9023 [audio decode: up to 24bit / 192kHz] Audio features Audio output: Wi-Fi: 24bit / 192kHz [for Optical and Coaxial] Bluetooth 16bit / 44.1kHz [for Optical and Coaxial] ® Wi-Fi 802.11 b/g/n 2.4GHz, DLNA, UPnP Network features Bluetooth ®...
Page 36 EU declaration of conformity Your product is marked with the symbol shown on the left. As its manufacturer, hereby we declare that the product is in compliance with the following EU directives and regulations: 2014/53/EU (RED) & 1275/2008/EC (ErP) & 2015/863/EU (RoHS). The full text of the EU declaration of conformity is available from the manufacturer.
