TRAVEL ELECTRIC AND MANUAL SIT-TO-STAND SYSTEMS
USER GUIDE AND TROUBLESHOOTING
Control Panel
See figure 1 to identify the buttons of the control panel.

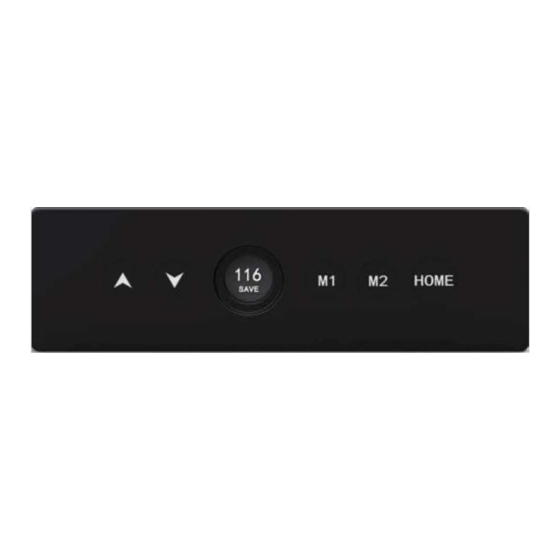

Figure 1: Control Panel
Operation:
UP: Touch and hold the UP button to move the desk up to the desired height. Release to stop.
DOWN: Touch and hold the DOWN button to move the desk down to the desired height. Release to stop.
DISPLAY SCREEN: Displays the height or error codes.
M1: Touch and hold the M1 button for 5 seconds at the desired height to save in memory.
M2: Touch and hold the M2 button for 5 seconds at the desired height to save in memory.
HOME: Touch the HOME button to move the desk to the home position of 720mm.
Note: The control panel enters sleep mode after 30 seconds. To reactivate, touch the UP or DOWN buttons.
Label
Find the label on the back of the handset. See figure 2 to identify the date of manufacture and generation
code on the label.
Figure 2: Label
Date of
Generation Code
Manufacture
1
Advertisement
Table of Contents
Summary of Contents for Workspace WA6-NO
- Page 1 TRAVEL ELECTRIC AND MANUAL SIT-TO-STAND SYSTEMS USER GUIDE AND TROUBLESHOOTING Control Panel See figure 1 to identify the buttons of the control panel. Figure 1: Control Panel Operation: UP: Touch and hold the UP button to move the desk up to the desired height. Release to stop. DOWN: Touch and hold the DOWN button to move the desk down to the desired height.
- Page 2 Programming and Adjustments Generation 1.0 (170107 and 170119) 1. Height calibration Touch and hold the DOWN button to move the desk to the lowest position (ensure all legs are fully retracted). b. Measure the physical height of the desk. Touch and hold the HOME button until the display screen flashes. d.
- Page 3 5. Set lower limit: ensure step 1 has been complete before attempting step 5. (Generation 2 only) Use the UP and DOWN buttons to move the desk to the desired minimum height. b. Touch and hold the HOME button until a beep sounds and the display screen flashes. Touch the M2 button to complete the setting.
- Page 4 NOTE: you may wish to change sensitivity levels depending on how much weight is on your desk top. Consider removing weight before selecting level 4 (Workspace recommend not to select level 4, CMS off mode, for desk protection and work life longevity).
- Page 5 4. ER4: Communication problem Check all cables for damage and check all connections are secure. Turn the power off. Wait for 30 seconds. Turn the power back on. If the problem persists then the control box or hand set could be damaged and further repair is required.
- Page 6 Operation (Movement and Levels) When the desk top moves up and down and appears to be under duress check that there are no objects obstructing the movement. This can include screens, screen glides and cabling. Ensure there are no obstructions around the hex rod in the manual version. If the desk moves only a short distance and then retreats 50mm, once again check for obstructions.
