SmartKitchen Mobile Gateway 3.0 User Manual

Gateway device with internet connection

USER MANUAL

MOBILE GATEWAY 3.0

Gateway device with Internet connection

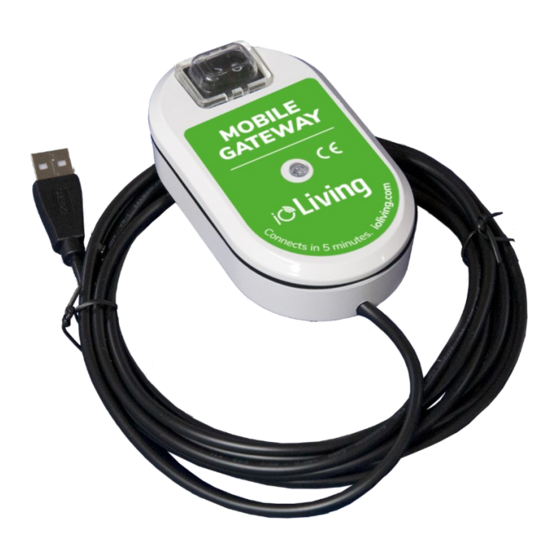

Mobile Gateway 3.0

The Mobile Gateway receives data from SmartKitchen measurement devices

and transfers it to the SmartKitchen cloud service via mobile network.

Dimensions:

Power supply:

Protection:

Status lights:

Temperature:

4G/LTE radio:

Bluetooth:

LoRa radio:

smartkitchen.solutions

1/2022

100*58*25 mm

Powered with included USB charger and rechargeable

battery. Battery capacity 30 hours.

IP65, protected against water jets

The LEDs (red, blue, and green) indicate the operation

of the device and possible error conditions

Operating temperature 0° - 40°C

Channels 3 and 20, Cat M1 and NB1

2.4 GHz

871.5 MHz

Support:

helpdesk@ioliving.com

1 (4)

Table of Contents

Need help?

Do you have a question about the Mobile Gateway 3.0 and is the answer not in the manual?

Page 1 MOBILE GATEWAY 3.0 Gateway device with Internet connection Mobile Gateway 3.0 The Mobile Gateway receives data from SmartKitchen measurement devices and transfers it to the SmartKitchen cloud service via mobile network. Dimensions: 100*58*25 mm Power supply: Powered with included USB charger and rechargeable battery.
Page 2 The Mobile Gateway does not transfer stored measurement data from the measurement devices, like other SmartKitchen Gateway devices do. If it is necessary to transfer the stored measurement data, it can be done with an Android phone using ioLiving Handy application.
Page 3 USER MANUAL MOBILE GATEWAY 3.0 Gateway device with Internet connection Operation of status lights You can view the operation of the Mobile Gateway with the cover light. The following table describes the operation of the indicator light in different situations.
Page 4 USER MANUAL MOBILE GATEWAY 3.0 Gateway device with Internet connection WHITE Constantly on = WHITE If the mobile network connection The device scans for available is lost for any reason, the scan mobile networks. can still occur after start-up. Manufacturer...
