Summary of Contents for YEKI YW-S08

  • Page 1 2.1 CH Soundbar Speaker System Sistema altoparlante soundbar 2.1 CH MODEL/MODELLO: YW-S08 2.1 CH Soundbar Speaker System Sistema altoparlante soundbar 2.1 CH MODEL/MODELLO: YW-S08 Instruction Manual Manuale di istruzioni Instruction Manual PLEASE READ REFORE OPERATING THIS EQUIPMENT Manuale di istruzioni...
  • Page 2: Important Safety Instructions

    Important Safety Instructions • Read these Instructions. • Keep these Instructions. • Heed all Warnings. • Follow all instructions. • Do not use this apparatus near water. • Clean only with a dry cloth. • Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. •...
  • Page 3: Check The Package Contents

    Remove all items from the packing. Retain the packaging. If you dispose of it please do so according to local regulations. The following items are included: RCA Stereo Audio Cable 1. Soundbar YW-S08 2. Remote control 6. Instruction manual 3. Mains adapter 7.
  • Page 4: Product Description

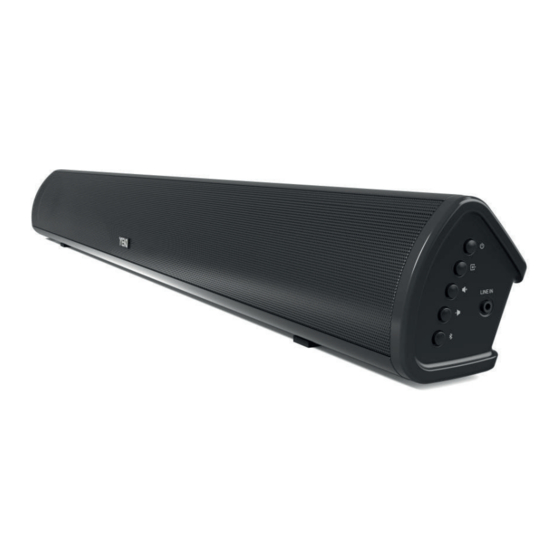

    Product description 10 11 12 13 1. Speaker drivers 7. Bluetooth pair button 2. LED indicator light 8. 3.5mm line in socket 3. The remote control sensor 9. HDMI(ARC) socket 4. Switch the unit on or off 10. AUX (RCA L/R) socket 5.
  • Page 5: Remote Control Batteries Installation

    Remote control (batteries installation) INPUT VOL+ VOL- PAIR MUSIC MOVIE DEFAULT button ---- Press the unit between On and Standby mode. button ---- Press to mute the sound. Press again resume. 3. BASS+/BASS- buttons ---- (It can adjust the Bass volume in mode of DEFAULT.) 4.
  • Page 6: Product Installation

    Product installation 1. Drill 2 parallel holes (Ø3-8mm each according to wall type) in the wall. The distance between 2 holes should be 430mm. 2. Firmly fix a dowel (included) into each hole in the wall if necessary. Dowels Dowels Solid wall(i.e., Solid brick, Solid concrete, Solid wood, Solid wooden battens)
  • Page 7: Using The Aux Connection

    AUX(L/R) Sockets of the unit. Then press the AUX button on the remote control or press the SOURCE button on the unit to choose the AUX function. Turn on your television set to use the YW-S08. white RCA stereo audio cable Using the MP3 LINK Connection (Line In) Plug one end of a 3.5mm audio input cable (included) into the Line in on the unit.
  • Page 8 Using the OPTICAL Connection You will need: An audio source with an optical audio output and a digital optical audio cable (not included) Connect the Digital Optical Audio cable to the optical output on the audio source and to the Optical Input on the speaker bar.
  • Page 9: Using The Usb Connection

    Using the USB Connection Connect your USB device to the USB jack on the soundbar. Press the “INPUT” button on the remote, and the LED indicator will be BABY BLUE. Play music files from the USB device through the Soundbar. Connecting to the Mains Supply Ensure that the power supply voltage is in the voltage of 100V~240V.
  • Page 10: Bluetooth Operation

    Select and press the BT button directly on the remote control or press the SOURCE button repeatedly to enter Bluetooth mode, indicated by a flashing blue light. Using the native controls on your Bluetooth device, selects the “YW-S08” in your Bluetooth settings to pair.
  • Page 11: Specifications

    Specifications Amplifier Power output Max power output 180W - (60W RMS) Frequency response 20Hz - 20KHz ± 3dB Input sensitivity 700mV Main unit Power supply Input: 100-240V ~ 50-60Hz Output: 20V 1.2A Standby power consumption 0.5W Full range speaker drivers Impedance: 4 Ohm (3 inches) Frequency response: 180Hz ~ 20KHz Dimensions...
  • Page 12: Note Importanti Sulla Sicurezza

    Note importanti sulla sicurezza • Leggete attentamente il manuale • Conservate il manuale per future consultazioni. • Tenete conto di tutte le avvertenze • Seguite tutte le istruzioni • Non utilizzate l’apparecchio vicino all’acqua. • Pulite solo con un panno asciutto •...
  • Page 13 Togliete tutti gli accessori dalla confezione. Conservate l’imballo. Quando lo gettate seguite le normative locali di smaltimento rifiuti. seguite le normative locali di smaltimento rifiuti. La confezione comprende: La confezione comprende: Cavo audio stereo RCA Cavo audio stereo RCA Soundbar YW-S08 Soundbar YW-S08 Telecomando Telecomando Manuale d’istruzioni Manuale d’istruzioni Alimentatore...
  • Page 14 izione prodotto Descrizione prodotto Descrizione prodotto 10 11 12 13 Altoparlanti 1. Altoparlanti 1. Altoparlanti 7. Tasto accoppiamento bluetooth 7. Tasto accoppiamento bluetooth 7. Tasto accoppiamento bluetooth LED indicatore 2. LED indicatore 2. LED indicatore 8. Presa ingresso linea jack 3.5mm 8.
  • Page 15 Remote control (batteries installation) Telecomando (installazione delle batterie) INPUT VOL+ VOL- PAIR MUSIC MOVIE DEFAULT Per accendere il prodotto o metterlo in modalità stand-by Tasto mute, per togliere il suono o riattivarlo BASS+/BASS- Consente di regolare il volume dei bassi in modalità DEFAULT INPUT Per selezionare la modalità...
  • Page 16 Installazione prodotto Fate col trapano 2 fori paralleli (Ø3-8mm ciascuno a seconda del materiale del muro) nella parete. La distanza tra i due fori deve essere di 430mm. Se necessario (a seconda del tipo di muro) inserite saldamente un tassello (incluso) in ciascun foro .
  • Page 17 Utilizzate il cavo Audio Stereo RCA per collegarvi all’ingresso stereo RCA(L/R) della TV. La presa di uscita audio va collegata alle prese AUX (L/R) dell’unità. Poi premete il tasto AUX sul telecomando o il tasto SOURCE sull’unità per scegliere la funzione AUX. Accendete la vostra televisione per utilizzare l’ YW-S08. white RCA stereo audio cable Utilizzare il collegamento MP3 LINK (Line In) Collegate un’estremità...
  • Page 18 Utilizzare la connessione OTTICA Avrete bisogno di: una sorgente audio con un’uscita audio ottica e un cavo audio ottico digitale (non incluso). Collegato il cavo audio ottico digitale alla sorgente audio e all’ingresso ottico sulla barra altoparlante. Premete il tasto POWER/SOURCE sul pannello laterale o il tasto POWER direttamente sul telecomando per accendere l’unità.
  • Page 19: Collegamento All'alimentazione

    Utilizzo della connessione USB. Collegate il vostro dispositivo USB alla presa USB sulla SOUNDBAR. Premete il tasto “INPUT” sul telecomando e l’indicatore LED diventerà AZZURRO. Eseguite file musicali da dispositivi USB tramite la Soundbar. Collegamento all’alimentazione Assicuratevi che il voltaggio di alimentazione sia 100V~240V. Questo apparecchio è...
  • Page 20: Modalità Bluetooth

    Premete il tasto BT direttamente sul telecomando o il tasto SOURCE ripetutamente fino a selezionare la modalità Bluetooth, indicata da una luce blu lampeggiante. Utilizzando i comandi del vostro dispositivo Bluetooth, selezionate “YW-S08” nelle vostre impostazioni Bluetooth per effettuare l’accoppiamento.
  • Page 21: Condizioni Di Garanzia

    Specifications Specifiche Tecniche Amplificatore Potenza Potenza massima 180W - (60W RMS) Risposta in frequenza 20Hz - 20KHz ± 3dB Sensibilità in ingresso 700mV Unità principale Alimentazione Tramite alimentatore di rete: Tramite alimentatore di rete: Input: 100-240V ~ AC 50-60Hz Input: 100-240V~ AC / 50-60Hz Output: DC 20V 1.2A Output: DC 20V 1.2A...
  • Page 22 DICHIARAZIONE DI CONFORMITA’ EU EU COMPLIANCE DECLARATION Il fabbricante, KARMA ITALIANA SRL, dichiara che il tipo di apparecchiatura radio tipo soundbar YW S08 / YW S08B è conforme alla direttiva 2014/53/UE. Il testo completo della dichiarazione di conformità UE è disponibile al seguente indirizzo Internet: www.karmaitaliana.it Hereby, KARMA ITALIANA SRL declares that the radio equipment type soundbar YW S08/ YW S08B is in compliance with Directive 2014/53/EU.
  • Page 23 Questo simbolo vi avverte della presenza di istruzioni d’uso e manutenzione importanti, nel manuale o nella documentazione che accompagna il prodotto This symbol alerts you of the presence of important operating and maintenance instructions, in the manual or in the documentation accompanying the product I marchio CE indica che il prodotto è...
  • Page 24 Importato da: KARMA ITALIANA SRL Via Gozzano 38 bis 21052, Busto Arsizio (VA) - Italy made in PRC www.karmaitaliana.it...
