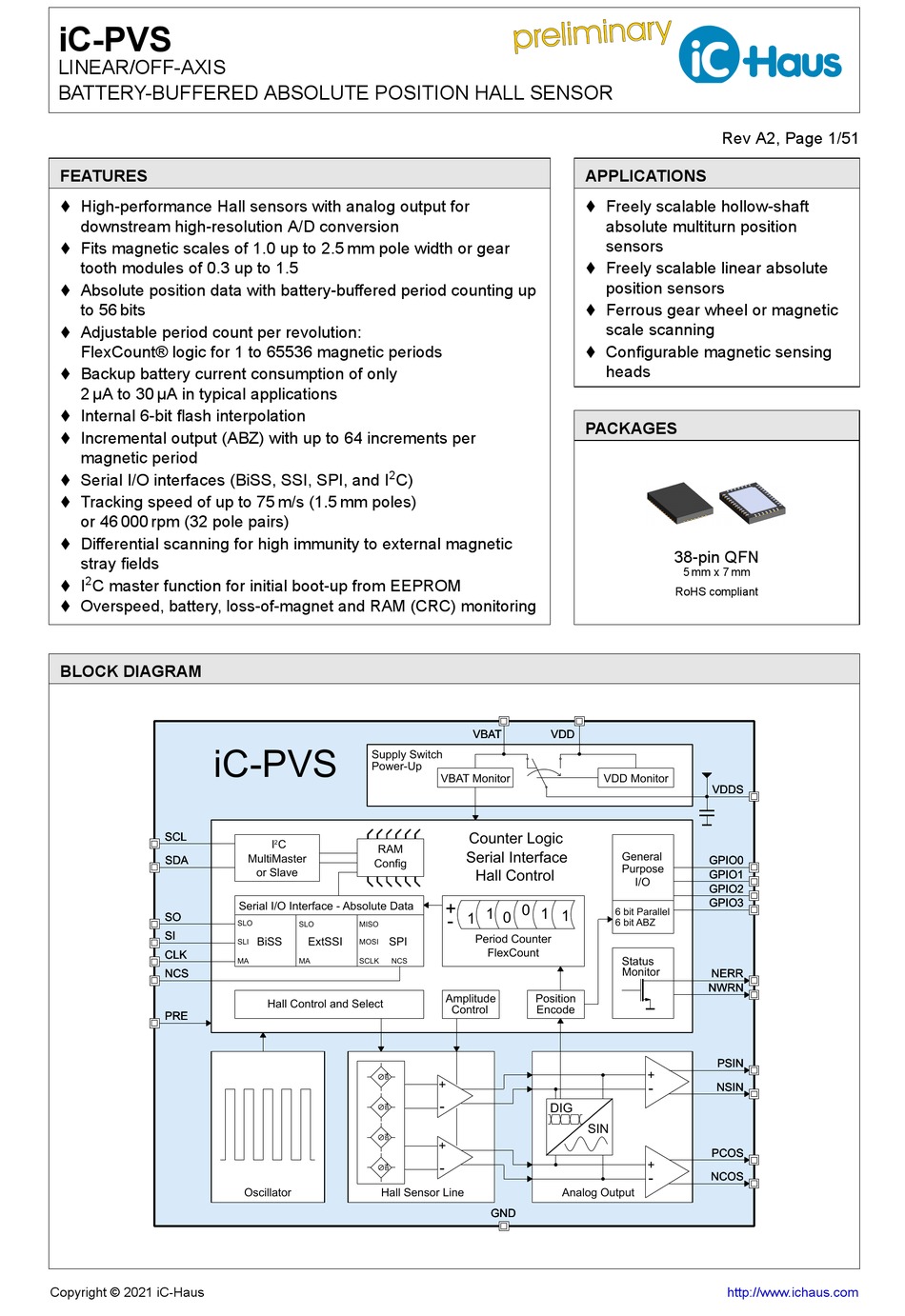

iC-PVS
LINEAR/OFF-AXIS
BATTERY-BUFFERED ABSOLUTE POSITION HALL SENSOR
FEATURES
High-performance Hall sensors with analog output for
•
downstream high-resolution A/D conversion
Fits magnetic scales of 1.0 up to 2.5 mm pole width or gear
•
tooth modules of 0.3 up to 1.5
Absolute position data with battery-buffered period counting up
•
to 56 bits
Adjustable period count per revolution:
•
FlexCount® logic for 1 to 65536 magnetic periods
Backup battery current consumption of only
•
2 µA to 30 µA in typical applications
Internal 6-bit flash interpolation
•
Incremental output (ABZ) with up to 64 increments per
•
magnetic period
Serial I/O interfaces (BiSS, SSI, SPI, and I
•
Tracking speed of up to 75 m/s (1.5 mm poles)
•
or 46 000 rpm (32 pole pairs)
Differential scanning for high immunity to external magnetic
•
stray fields
2
I
C master function for initial boot-up from EEPROM
•
Overspeed, battery, loss-of-magnet and RAM (CRC) monitoring
•
BLOCK DIAGRAM
iC-PVS
SCL
SCL
SCL
SDA
SDA
SDA
SO
SO
SO
SI
SI
SI
CLK
CLK
CLK
NCS
NCS
NCS
PRE
PRE
PRE
Copyright © 2021 iC-Haus
2
C)
Supply Switch
Power-Up
I
C
2
RAM
MultiMaster
Config
or Slave
Serial I/O Interface - Absolute Data
SLO
SLO
MISO
BiSS
ExtSSI
SPI
SLI
MOSI
MA
MA
SCLK
NCS
Hall Control and Select
B
B
B
B
Oscillator
Hall Sensor Line
APPLICATIONS
Freely scalable hollow-shaft
•
absolute multiturn position
sensors
Freely scalable linear absolute
•
position sensors
Ferrous gear wheel or magnetic
•
scale scanning
Configurable magnetic sensing
•
heads
PACKAGES
VBAT
VBAT
VBAT
VDD
VDD
VDD
VBAT Monitor
VDD Monitor
Counter Logic
Serial Interface
Hall Control
+
0
1
1
1
0
-
1
Period Counter
FlexCount
Amplitude
Position
Control
Encode
+
-
DIG
SIN
+
-
Analog Output
GND
GND
GND
Rev A2, Page 1/51
dra_qfn38-1_pack_2, 2.4:1
38-pin QFN
5 mm x 7 mm
RoHS compliant
VDDS
VDDS
VDDS
General
GPIO0
GPIO0
GPIO0
Purpose
GPIO1
GPIO1
GPIO1
I/O
GPIO2
GPIO2
GPIO2
GPIO3
GPIO3
GPIO3
6 bit Parallel
6 bit ABZ
Status
Monitor
NERR
NERR
NERR
NWRN
NWRN
NWRN
PSIN
PSIN
PSIN
+
-
NSIN
NSIN
NSIN
PCOS
PCOS
PCOS
+
-
NCOS
NCOS
NCOS
http://www.ichaus.com
