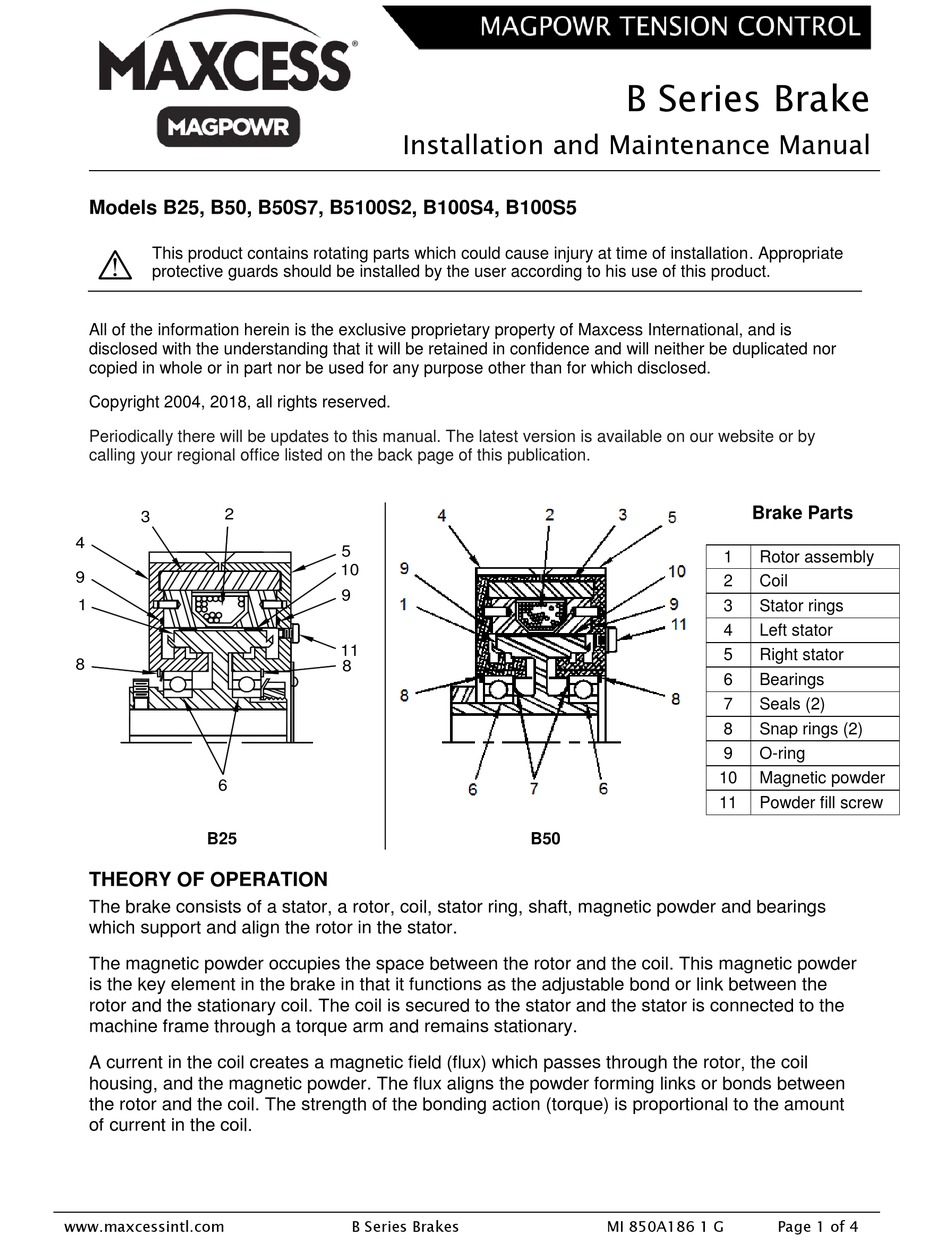

Maxcess MAGPOWR B Series Installation And Maintenance Manual

Models B25, B50, B50S7, B5100S2, B100S4, B100S5

This product contains rotating parts which could cause injury at time of installation. Appropriate
protective guards should be installed by the user according to his use of this product.
All of the information herein is the exclusive proprietary property of Maxcess International, and is
disclosed with the understanding that it will be retained in confidence and will neither be duplicated nor
copied in whole or in part nor be used for any purpose other than for which disclosed.
Copyright 2004, 2018, all rights reserved.
Periodically there will be updates to this manual. The latest version is available on our website or by
calling your regional office listed on the back page of this publication.
2
3
4
9
1
8
6
B25
THEORY OF OPERATION
The brake consists of a stator, a rotor, coil, stator ring, shaft, magnetic powder and bearings
which support and align the rotor in the stator.
The magnetic powder occupies the space between the rotor and the coil. This magnetic powder
is the key element in the brake in that it functions as the adjustable bond or link between the
rotor and the stationary coil. The coil is secured to the stator and the stator is connected to the
machine frame through a torque arm and remains stationary.
A current in the coil creates a magnetic field (flux) which passes through the rotor, the coil
housing, and the magnetic powder. The flux aligns the powder forming links or bonds between
the rotor and the coil. The strength of the bonding action (torque) is proportional to the amount
of current in the coil.
www.maxcessintl.com
Installation and Maintenance Manual
5
10
9
11
8
B Series Brakes
B Series Brake
B50
MI 850A186 1 G
Brake Parts
1 Rotor assembly
2 Coil
3 Stator rings
4 Left stator
5 Right stator
6 Bearings
7 Seals (2)
8 Snap rings (2)
9 O-ring
10 Magnetic powder
11 Powder fill screw
Page 1 of 4
