Mar-20
About the Borum brand
Our "heavy duty commercial" range of Borum Industrial equipment has been manufactured to exacting standards for the past 34
years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport,
mining, earthmoving and railway environments. Our Borum Industrial range of equipment is focused on achieving superior
professional standards, reliability, quality, and are covered by a 12 month trade use warranty.

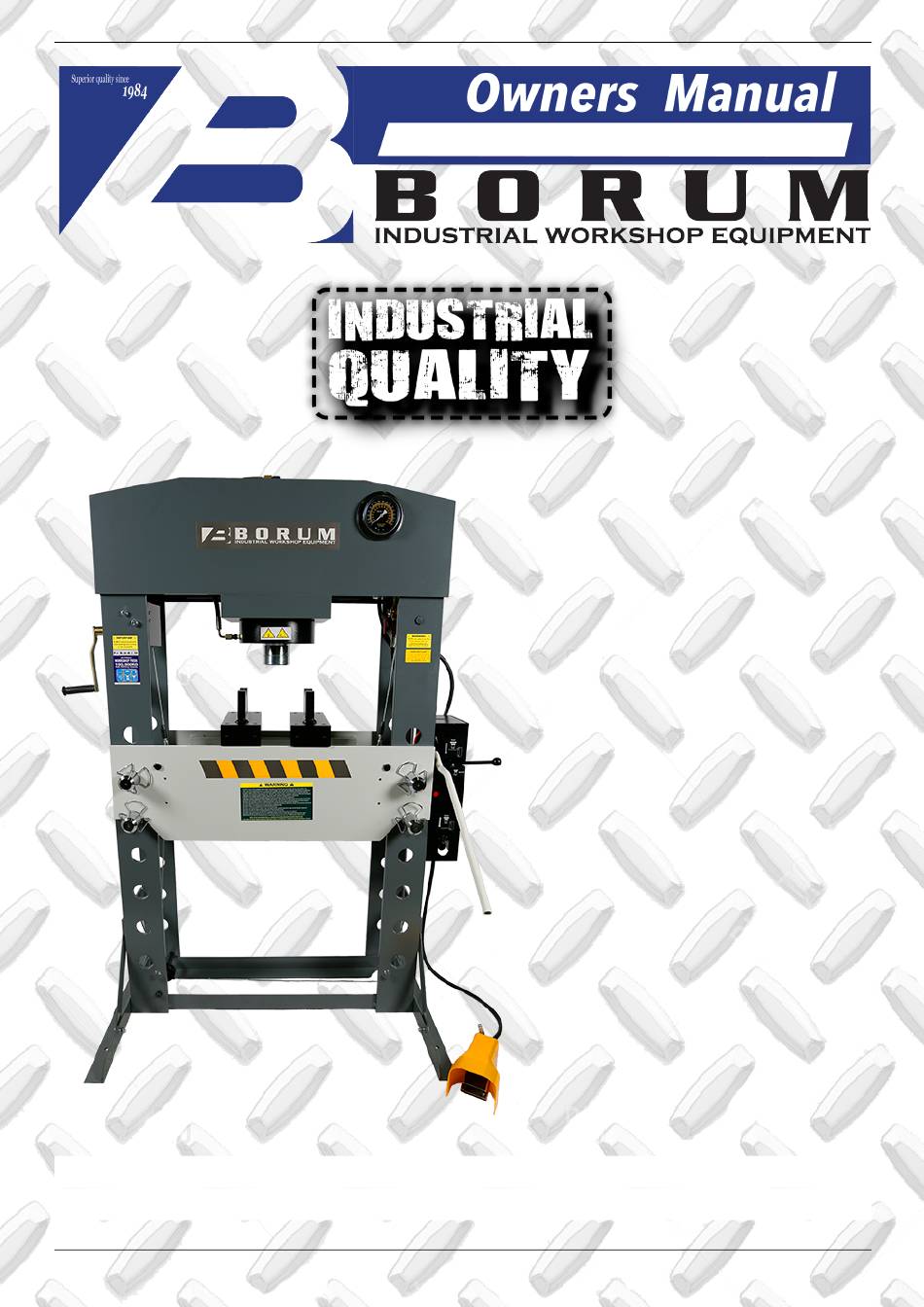

100,000KG AIR HYDRAULIC PRESS
Made in China to TQB Brands Pty Ltd specifications
Visit us at www.tqbbrands.com.au
Specifications
•
Safe Working Capacity: 100,000kg
•
Working Range: 113-813mm
•
Overall Height: 2048mm
•
Overall Width: 1199mm
•
Overall Depth: 990mm
•
Bed Width: 787mm
•
Piston Ram Stroke: 300mm
•
Bed Height Settings: 6
•
Operating Air Pressure: 110-125psi
•
Nett Weight: 652kg
•
Crate: 1150x380x2044mm
•
Gross Weight: 762kg
BSP100TA
Advertisement
Related Manuals for Borum BSP100TA
Summary of Contents for Borum BSP100TA
- Page 1 About the Borum brand Our “heavy duty commercial” range of Borum Industrial equipment has been manufactured to exacting standards for the past 34 years. We specify industrial quality components and design to ensure a long and durable working life in commercial transport, mining, earthmoving and railway environments.
-
Page 2: Table Of Contents
Whilst every effort has been made to ensure accuracy of information contained in this manual, the Borum policy of continuous improvement determines the right to make modifications without prior warning. -
Page 3: Standard Operating Procedure
1. Use a qualified person to maintain the press in good condition. Keep it clean for best and safest performance. 2. Only use this Borum Workshop Press on a surface that is stable, level, dry and not slippery, and capable of sustaining the load. Keep the surface clean, tidy and free from unrelated materials and ensure that there is adequate lighting. -
Page 4: Assembly, Operation, Preventitive Maintenance
Includes a dial gauge for dual metric/tons pressure readings. "Borum Industrial" Air Hydraulic Workshop Presses are available in a variety of capacities and sizes. The press frames are designed for maximum strength, reliability and durability. The strong frames and powerful high-pressure hydraulics will provide years of dependable service in many applications. - Page 5 Mar-20 BSP100TA 3. ASSEMBLY 11.1 BASE ASSEMBLY 11.1.1 Disassemble the hex bolt M12*30(M), washerM12(O), spring washerM12(N), hex nut M12(P) from part A of the press frame body. Then assemble the base to the body frame by the above parts. (refer to Fig 1) 11.1.2 Fix the 4 supports (L) to the body frame (A) by using hex bolt...
- Page 6 Mar-20 BSP100TA 11.2.3 Then connect the oil hose (P17) to 1/2” connector (refer to fig.5). Once the oil supply hose is connected, open the oil tank valve to allow the flow of oil and check for leaks. 11.2.4 Remove the plug from the hose fittings (P18, P19) and oil hose (P20、...
- Page 7 Mar-20 BSP100TA RAM MOVEMENT 12.1 Insert the ram movement handle (G) to the worm connecting shaft (M1) 12.2 Turn the handle clockwise, and the ram moves left (Direction 12.3 Turn the handle (G) anti-clockwise, and the ram moves right (Direction B) BED HEIGHT ADJUSTMENT 13.1...
- Page 8 Mar-20 BSP100TA AIR PURGE (Bleed the hydraulic system) 15.1 Bleed Air Manually 15.1.1 Turn the selector valve lever (I) to position 2. Fig.10 15.1.2 Insert the Pump Handle tube (J) to the socket as process 14.2, pump the handle tube (J) no less than twenty cycles.
- Page 9 Mar-20 BSP100TA PISTON’S EXTENSION & RETRACTION 16.1 Ram extension can be operated either manually or by air. 16.1.1 To operate using compressed air: 16.1.1.1 Connect the air hose (P52) of air foot valve to workshop air compressor supply. (Fig.11) 16.1.1.2 Turn the selector valve lever(I) to position 3. (Fig.10) 16.1.1.3 Depress the air foot valve (P54) to commence operation.
- Page 10 Mar-20 BSP100TA PRESS SETUP 17.1 Position ram piston according to Section 12 ‘Ram Movement’, so that it is centred to workpiece. 17.2 Adjust the bed (19) according to Section 13 ‘Bed Height Adjustment’ to the appropriate working height (as close to the retracted ram piston as possible, then insert the pins (21) to the holes of body frame and lock the circlips (22).(Fig.12 &...
- Page 11 Mar-20 BSP100TA 4. BEFORE USE • Prior to each use conduct a visual inspection checking for abnormal conditions, such as cracked welds, leaks, and damaged, loose, or missing parts. • Before the first use, ensure the base is secured to the floor using anchor bolts.
- Page 12 • Owners and /or operators should be aware that repair of this product may require specialised equipment and knowledge. 8. STORAGE This Borum Workshop Press should always be stored in a dry location on a level surface with the piston ram fully retracted and the compressed air supply disconnected. 9. SERVICE & REPAIR Any Borum Industrial Workshop Press found damaged in any way, or found to be worn or operates abnormally should be removed from service until repaired by an authorised service agent.
-
Page 13: Parts Diagram
Mar-20 BSP100TA PARTS DIAGRAM Made in China to TQB Brands Pty Ltd specifications P a g e | 12 Visit us at www.tqbbrands.com.au... -
Page 14: Parts List
Mar-20 BSP100TA PARTS LIST DESCRIPTION Q'TY DESCRIPTION Q'TY DESCRIPTION Q'TY Ram Assembly Circlip Oil Hose 1 Frame Moving Device Oil Hose Bolt Bolt Oil Hose 3 Spring Lock Washer Oil Hose 1 Cover Flat Washer Oil Hose 2 Screw Cable... -
Page 15: Warranty
BSP100TA WARRANTY BORUM Industrial products have been carefully tested and inspected before shipment and are guaranteed to be free from defective materials and workmanship for a period of 12 months from the date of purchase except where tools are hired out when the guarantee period is ninety days from the date of purchase.
