Aculux CTA4-125 Installation Instructions

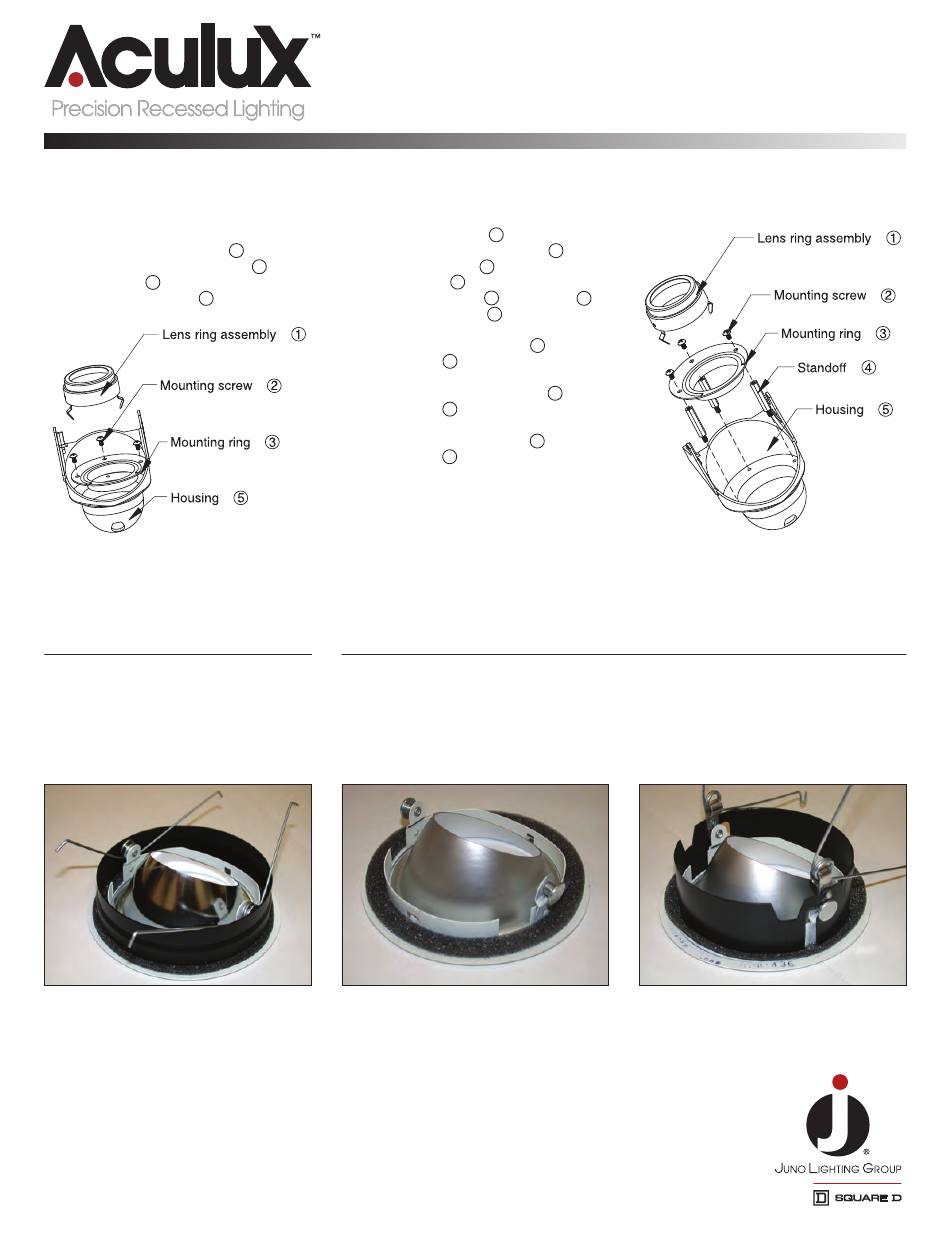

A. STANDOFF TO HOUSING ASSEMBLY
STEP 1:
• Turn off power to fixture.
• Remove lens ring assembly 1 from unit.
• Remove three mounting screws 2 from
mounting ring 3 .
• Remove mounting ring 3 and put it
aside.
B. CHOOSE FOR CTA4-125 OR CTA4-200
FOR CTA4-125
1. Install adapter over Trim:
Install adapter over trim by holding
torsion springs together to get ring over
trim. Wider diameter of adapter ring
faces down. Completed assembly
should look like picture shown below.
WARRANTY
Juno Lighting Group warrants that its products are free from defects in material and workmanship. Juno Lighting Group's obligation
is expressly limited to repair or replacement, without charge, at Juno Lighting Group's factory after prior written return authorization has been
granted. This warranty shall not apply to products which have been altered or repaired outside of Juno Lighting Group's factory. This warranty
is in lieu of all other warranties, expressed or implied, and without limiting the generality of the foregoing phrase, excludes any implied warranty
of merchantability. Also, there are no warranties which extend beyond the description of the product on the company's literature setting forth
terms of sale.
Product Services Phone (888) 387-2212
1300 South Wolf Road • Des Plaines, IL 60018 • Phone 800-323-5068 • www.junolightinggroup.com
INSTALLATION INSTRUCTIONS
FOR CEILING THICKNESS ADAPTER
STEP 2:
• Install three standoffs 4 provided with
male threaded end into housing 5 .
• Place mounting ring 3 on top of the
three standoffs 4 .
• Attach mounting ring 3 to standoffs 4
with the three screws 2 removed in
Step 1.
• Snap the lens ring assembly 1 into the
mounting ring 3 and adjust the lamp aim
to desired position.
• Remove the lens ring assembly 1 from
mounting ring 3 to gain access to thumb
screw to secure lamp aim position.
• Snap the lens ring assembly 1 to the
mounting ring 3 .
FOR CTA4-200
1. Remove two torsion springs
Springs can be removed by bending the
coil backward or cutting the springs from
trim. Trim should look like picture below
when complete.
2. Attach adapter to trim
Slide adapter over shoulder rivets and
turn clockwise to lock adapter in place.
© 2008 Juno Printed in USA Rev 06/08 P4028-02 pg 1 of 2
