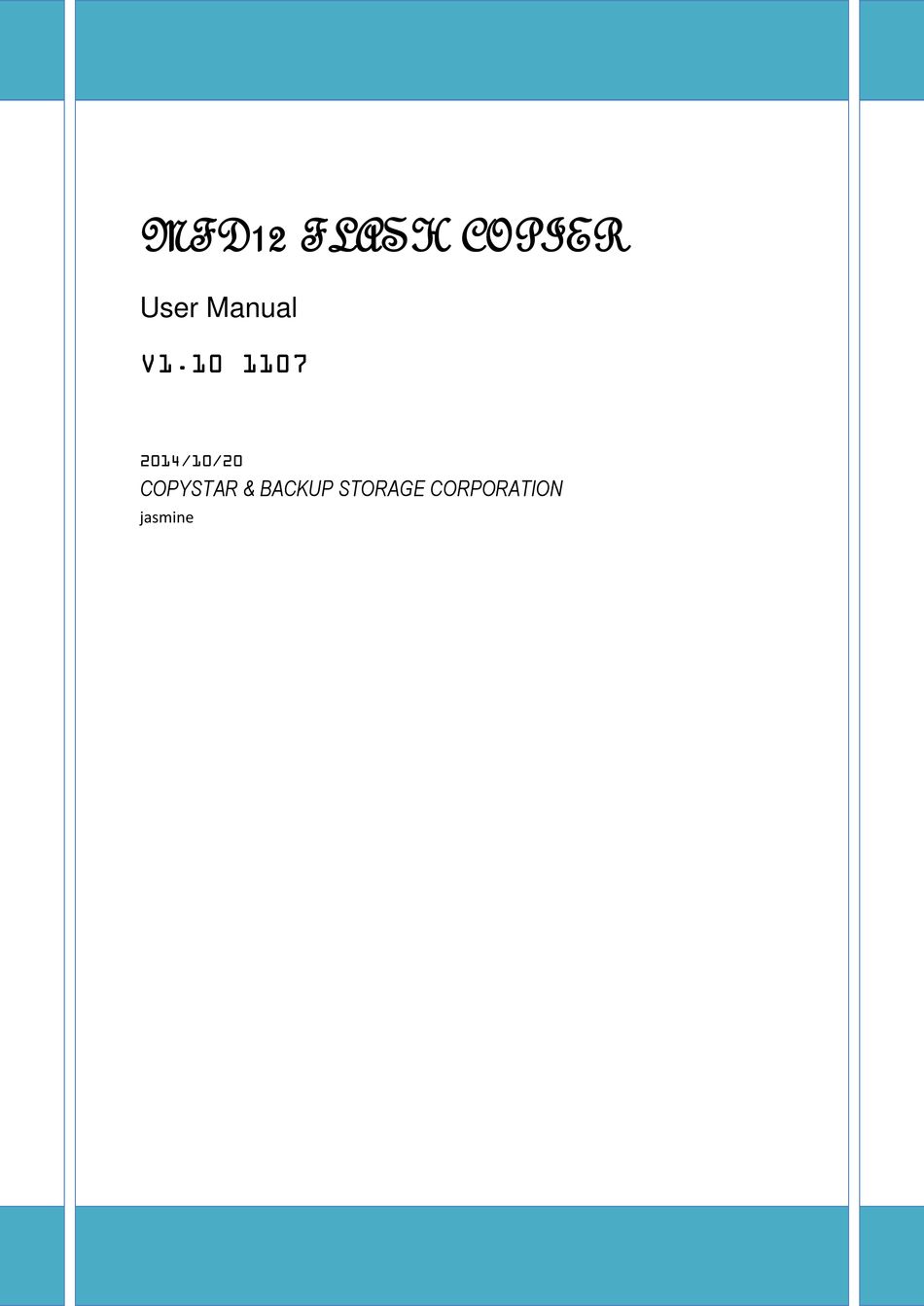

MFD12 FLASH COPIER
User Manual
V1.10 1107
2014/10/20
COPYSTAR & BACKUP STORAGE CORPORATION
jasmine
0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MFD-12 and is the answer not in the manual?

Questions and answers

Summary of Contents for Copystar MFD-12

  • Page 1 MFD12 FLASH COPIER User Manual V1.10 1107 2014/10/20 COPYSTAR & BACKUP STORAGE CORPORATION jasmine...
  • Page 2: Table Of Contents

    Table of Contents INTRODUCTION ...................... 2 FEATURES ......................2 SPECIFICATION ...................... 3 OPEN BOX ......................4 APPEARANCE ......................4 5.1 MFD12 FRONT VIEW ..................4 5.2 MFD12 BACK VIEW .................... 5 PANEL ........................6 6.1 DUPLICATING ....................6 FUNCTION TREE ..................... 7 MAIN FUNCTION .....................
  • Page 3 9.17 BTN. SOUND ..................... 15 9.18 SHOW EXE TIME ..................15 9.19 SHOW BINAEY BASE ................. 15 9.20 CMD TIME OUT..................16 9.21 TRANS. SIZE ..................... 16 9.22 MAX UDMA MODE ..................16 9.23 SET WRITE PAT..................16 9.24 DEVICE INFO .....................
  • Page 4: Introduction

    Memory including SATA DOM( SATA Slim) 7 pin or 22 pin, CFAST, IDE DOM ( IDE Slim), M-SATA, M.2.. The MFD-12 Duplicator the content of a Master Flash Drive to up to 12 drives simultaneously. With ultra fast copy speeds of up to 9GB/min, the NFD-12 is one of the fastest cloning Flash systems available.
  • Page 5: Specification

    HPA. (3) RESIZE COPY: RESIZE mode is used to copy between Source and Target drives of different capacities. The Resize mode allows for copying from a smaller capacity Source to larger capacity Target drives. Resize copy supports the following file systems: FAT, FAT32, NTFS.
  • Page 6: Open Box

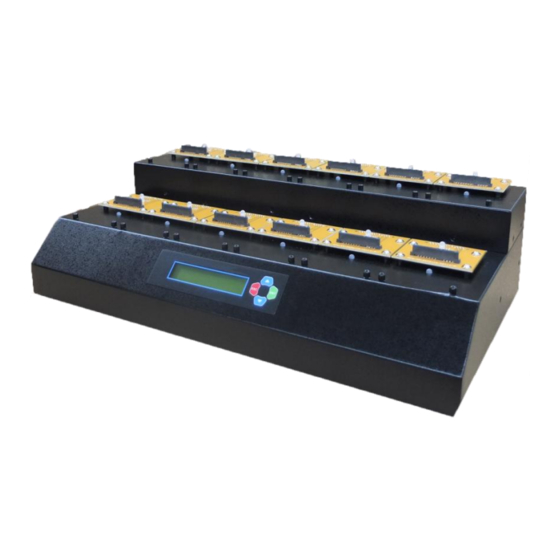

    4. OPEN BOX If any of the following items are missing, please contact the COPYSTAR and replacement parts will be shipping to you ASAP. MFD12 Flash Duplicator  AC Power Cord   User Manual 5. APPEARANCE 5.1 MFD12 FRONT VIEW...
  • Page 7: Mfd12 Back View

    5.2 MFD12 BACK VIEW...
  • Page 8: Panel

    6. PANEL 6.1 DUPLICATING TARGETS QUANTITY [DISK] COPY (T : 11 ) COPY FUNCTION 135M 6.49% 7492M DATA SIZE WORKING SPEED PROGRESS...
  • Page 9: Function Tree

    7. FUNCTION TREE OPERATION MENU SETUP MENU BRIEF COPY SET TO DEFAULT NO CAP CHECK TRANS. SIZE RESIZE COPY UPDATE FIRMWARE HPA CHECK MAX UDMA MODE DISK COPY FORMAT UPDATE DISK DCO CHECK SET WRITE PAT. VERIFY SET COPY CHECK SUM CHECK DEVICE INFO ERASE SET COMPARE...
  • Page 10: Main Function

    8. MAIN FUNCTION 8.1 BRIEF COPY BRIEF mode copies only the sectors that contain data and skips any blank sectors. This mode is the fastest copy mode; it support the following system Win 8, Win 7, Win Vista, Win 2000/98/95, MAC 10.X, Ubuntu, Fedora, Red Hat, FAT12/16/21/64, exFAT, NTFS, HFS, HPFS, EXT 1/2/3/4, XFS, GPT, LVM, UFS, HPA.
  • Page 11: Erase

    8.5 ERASE ERASE deletes all information on any connected Target Flash drives by writing zeros into each sector of the hard drive, sector by sector. 8.6 DIAG. The Diagnostic feature allows you to run tests to verify the health of your target flash drives.
  • Page 12: Setup Manual

    9. SETUP MANUAL 9.1 SET TO DEFAULT Restore MFD-12 to default value. 9.2 UPDATE FIRMWARE Update MFD-12 firmware. 9.3 FORMAT UPDATE DISK The FORMAT UPDATE DISK operation allows you to format a flash drive in FAT 32. This flash drive can be used to store new firmware for upgrading machine.
  • Page 13: Set Compare

    ] – Copy enabled (default).  DISK , BRIEF or RESIZE modes will perform a Copy operation. ] – Copy disabled.  FULL, BRIEF or RESIZE modes will not perform a Copy operation. Note: To perform a Copy & Compare operation, set both the SET COPY and SET COMPARE options.
  • Page 14: Optimize Log Tab

    9.8 OPTIMIZE LOG TAB It allowed to optimize log table and make the copy more effective. 9.9 SET DOD ERASE 9.9.1 [000]ERS DOD CYCLES ERASE deletes all information on any connected Target flash drives by writing zeros and /or specific patter into each sector of the flash drive, sector by sector. DOD ERASE, Cycle [ErsDOD] X003 times.
  • Page 15: Cap Check

    9.11 NO CAP CHECK The duplicator has a built in capacity check function which will check the capacity of the Master drive and the Target drive(s) during Full or Brief copy processes and determine whether the drives’ capacities are the same. Tap the ‘ENT’...
  • Page 16: Check Sum Check

    Protected Area, is a partition on the hard drive that is not normally visible to an operating system. Tap the ‘ENT’ button to change this option’s setting.  [ ] – DCO Check is disabled (default). The system will not check for DC partitions.
  • Page 17: Smart Warning

    If the drivers do not qualify by SMART CHECK , the drives will be rejected by the duplicator. 9.16 SMART WARNING The SMART WARING option allows you to configure the system check the disk with S.M.A.R.T. function in different level [0] ,[1],[2]. That detects and reports on various indicators of drive reliability, with the intent of enabling the anticipation of hardware failures before copy.
  • Page 18: Cmd Time Out

    The default value is Decimal.  9.20 CMD TIME OUT CMD TIME OUT, it allows to enable Error Handling Process when happened Read/Write error on the device. It will be according to the setting numbers to retry the device. 9.21 TRANS. SIZE TRANS.
  • Page 19: System Info

    9.25 SYSTEM INFO Display MFD-12 Version. 9.26 TOTAL COPY COUNT TOTAL COPY COUNT keeps track of the total number of successful and unsuccessful duplications produced by the system. This is a running count that includes all copy modes. Tap the ‘ENT’ button to view the total copy count.
  • Page 20: Set Read Test

    time. 9.27.3 SET READ TEST Checks the ability to read data to sectors on the target flash drives for a period time. 9.27.4 SET RANDOM READ Checks the ability to random write data to sectors on the target flash drives for a period time.
  • Page 21: Traditional

    9.28.2 TRADITIONAL Push Up or Down button to change English or Chinese, and push ENT for confirmation. Push ESC to escape.
