Summary of Contents for Blaupunkt GTr 8120 A

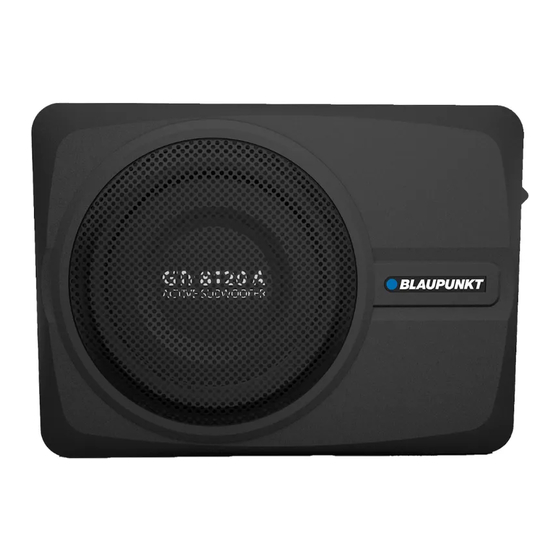

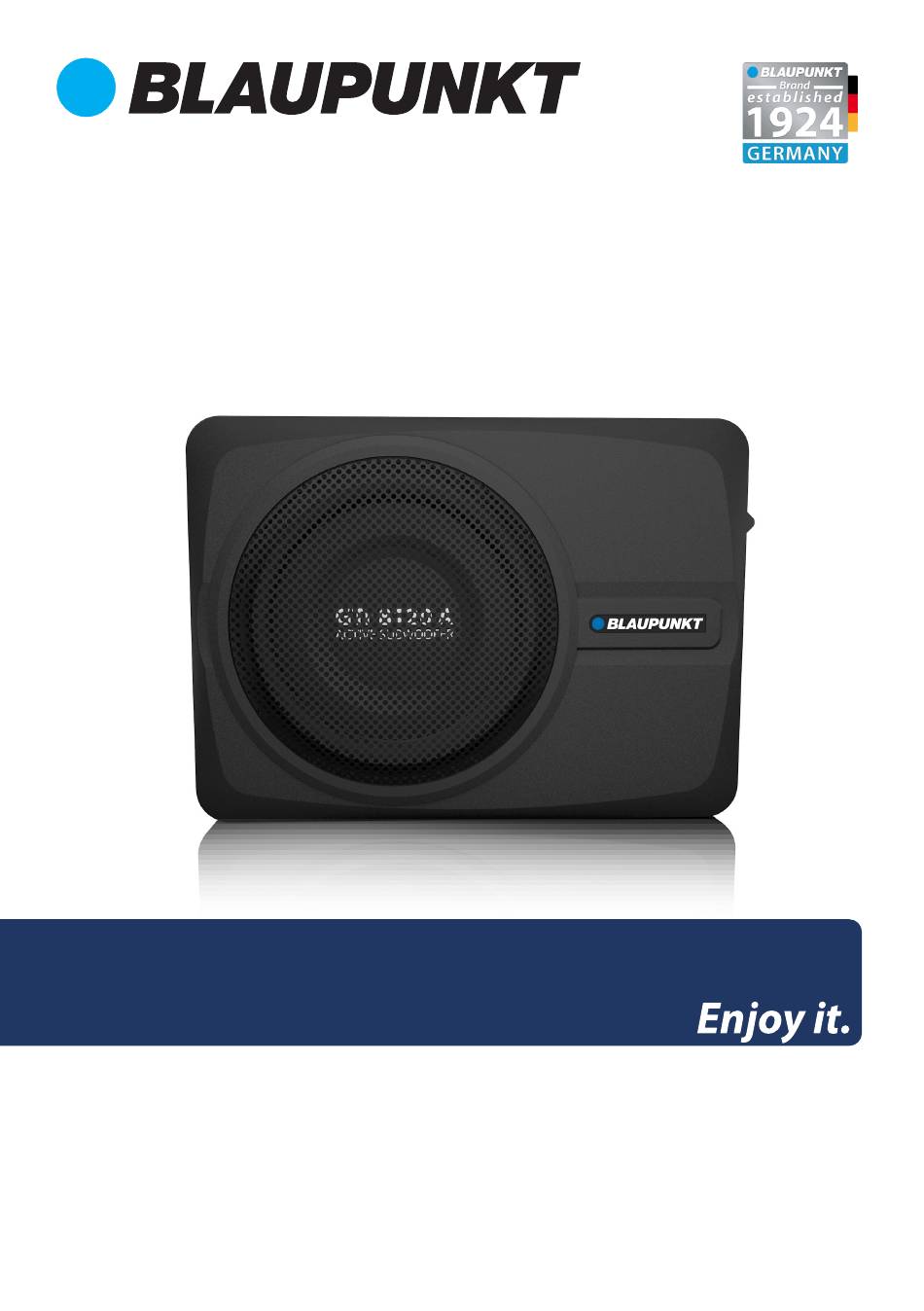

- Page 1 ACTIVE SUBWOOFER GTr 8120 A Operating and Installation Instructions...
- Page 2 Disclaimer Ensure cross section of the cable is no less • than 2.5mm2 if the positive and negative In no event shall Blaupunkt be liable for any cables are too long. direct, indirect, punitive, incidental, special • Incorrect installation may result in malfunc- consequential damages, to property or life, tion of the device or the car sound system.
- Page 3 FUNCTIONS CONTROLLING DIAGRAM Power Light Fuse Phase (00~ 1800) Ground (Chasis) Low Pass (50Hz~ 150Hz) Remote Bass Boost (0 ~ +12dB) +12V Battery Input Gain (Min ~ Max) Auto Power On Remote Control Input Protection LED Light Low Level Input High Level Input INSTALLATION...
- Page 4 SPECIFICATION 330.0 GTr 8120 A ACTIVE SUBWOOFER Subwoofer Amplifier • Max. Output Power : 300W • Amplifier Technology : Class AB • Speaker Size : 8.0” • Normal Output Power (RMS) : 120W • Cone Composition : Aluminium • Max. Output Power : 300W •...
- Page 5 WIRING DIAGRAM Select either Diagram 1 or Diagram 2 for installation. Avoid audio interference by using one audio inputs only. Diagram 1 (High Level Input) Metal part of vehicle body P-CONT FUSE LEFT (+) RIGHT (+) RIGHT (-) LEFT (-) REMOTE CONTROL Diagram 2 (Low Level Input) Metal part of...
- Page 6 Examine if your wiring is similar to Diagram 1 or Diagram 2 in case of device operation or performance failure. The following table indicate other possible problems and solutions. Refer to an authorized Blaupunkt dealer if problem persist. Problem Solution Amplifier power Examine if the ground connection is intact.
- Page 8 Designed and engineered by Blaupunkt Competence Centre 1 113 21 014 41 01...
