Summary of Contents for FiT 500010

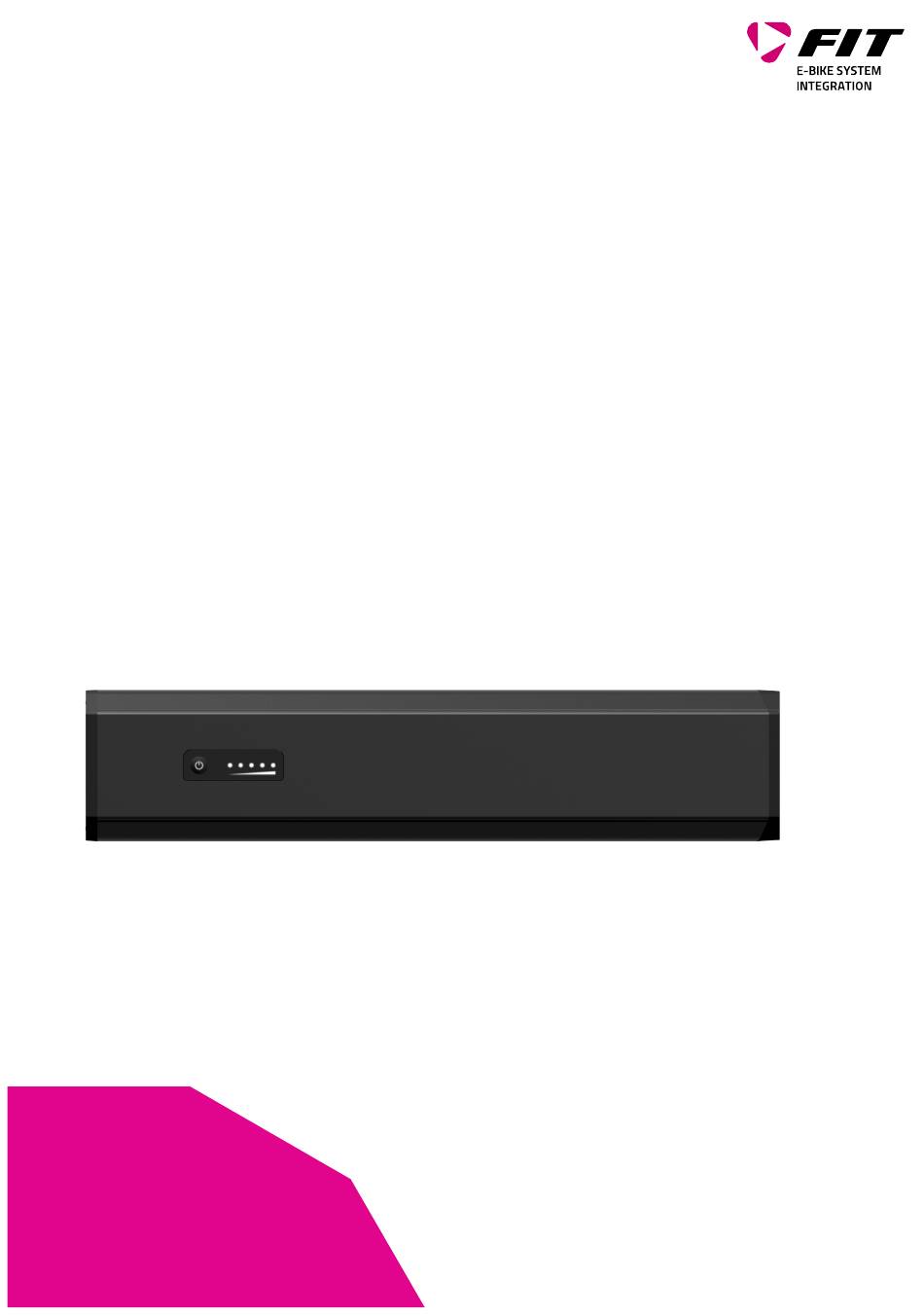

- Page 1 INSTRUCTION MANUAL BATTERY TP FIT 36 V 500010 | 500016 Biketec GmbH Luzernstrasse 84 NETWORKED CH-4950 Huttwil CUSTOMISED T +41 62 959 53 00 INTELLIGENT info@biketec.ch fit-ebike.com...
-
Page 2: Table Of Contents
TP FIT 36 V ........ - Page 3 INSTRUCTION MANUAL TP FIT 36 V 11 RECYCLING AND DISPOSAL 11.1 DISPOSAL ........... . . 16...
-
Page 4: Preface
1 PREFACE Dear FIT customer, The FIT system offers many useful functions and options and we are pleased that you have decided to choose our system. Please read through the operating instructions carefully to ensure you use the system safely and get off to a quick start. -
Page 5: About These Operating Instructions
INSTRUCTION MANUAL TP FIT 36 V 2 ABOUT THESE OPERATING INSTRUCTIONS 2.1 MANUFACTURER Biketec GmbH Luzernstrasse 84 CH-4950 Huttwil fit-ebike.com/en-en/ 2.2 LANGUAGE The original operating instructions are written in German. A translation is invalid without the original operating in- structions. -
Page 6: Safety Instructions
Charge the battery with original FIT chargers only. Risk of fire cannot be ruled out if non-original FIT chargers are used. Use the battery in e-bikes with the FIT system only. This is the only way that the battery will be protected from dan- gerous overloading. -
Page 7: Product And Technical Specifications
TP batteries blend stylishly into the down tube and can be easily inserted or removed without any tools. The batteries are interchangeable thanks to their plug-and-play system. The battery can be conveniently charged while in the bike or when removed. Safe and reliable in their operation, the batteries are perfectly matched to the FIT system. -
Page 8: Technical Data
INSTRUCTION MANUAL TP FIT 36 V 4.4 TECHNICAL DATA 4.4.1 TP FIT 36 V Rechargeable battery TP 500 FIT 36 V TP 630 FIT 36 V Product code 500010 500016 Cell configuration 10S4P 10S5P Capacity (minimum) 13.4 16.7 Energy (nominal) -
Page 9: Transportation And Storage
INSTRUCTION MANUAL TP FIT 36 V 5 TRANSPORTATION AND STORAGE 5.1 TRANSPORTATION Exclamat CAUTION Remove battery before transportation. There is a risk of injury if the drive system is switched on unintentionally. 5.1.1 TRANSPORTING E-BIKES Never use bicycle racks which use the e-bike’s handlebars or frame to hold the e-bike in an upside-down position. -
Page 10: Break In Operation
INSTRUCTION MANUAL TP FIT 36 V 5.3 BREAK IN OPERATION INFO-CIR NOTICE The battery discharges when not in use. This can cause irreparable damage to the battery. The battery must be recharged every 6 months. The battery may become damaged if it is connected permanently to the charger. Never connect the battery to the charger permanently. -
Page 11: Fitting
INSTRUCTION MANUAL TP FIT 36 V 6 FITTING 6.1 FITTING THE BATTERY 6.1.1 INSERTING THE BATTERY 1. First insert the lower section of the battery. 2. Ensure that the locking mechanism is open. 3. Push the battery upwards into its end position. The engaged slider holds the battery in position. -
Page 12: Display And Settings
INSTRUCTION MANUAL TP FIT 36 V 7.2 DISPLAY AND SETTINGS 7.2.1 CHARGE LEVEL CHECK ON BATTERY 1. Battery level LEDs Indicate how much e-bike battery capacity is left. An error code is displayed in the event of a fault. You will find the error table later in these instructions. -
Page 13: Error Messages
INSTRUCTION MANUAL TP FIT 36 V 8 ERROR MESSAGES 8.1 BATTERY ERROR CODES Flash sequence for the battery Description Action charge level LEDs after pressing the battery charge level button Permanent Error The battery has The battery needs to be replaced. -
Page 14: Cleaning And Servicing
INSTRUCTION MANUAL TP FIT 36 V 9 CLEANING AND SERVICING 9.1 BASIC CLEANING 9.1.1 CLEANING THE BATTERY Exclamat CAUTION Risk of fire and explosion due to penetration by water The battery is only protected against simple spray water. Penetration by water can cause a short circuit. -
Page 15: Troubleshooting, Fault Clearance And Repair
INSTRUCTION MANUAL TP FIT 36 V 10 TROUBLESHOOTING, FAULT CLEARANCE AND REPAIR 10.1 TROUBLESHOOTING AND FAULT CLEARANCE 10.1.1 DRIVE SYSTEM OR DISPLAY DOES NOT START UP If the display and/or the drive system do not start up, proceed as follows: 1. -
Page 16: Repair
INSTRUCTION MANUAL TP FIT 36 V Symptom Cause Remedy The assisted The battery does not perform as This does not indicate a problem. journey distance well in winter weather. is too short. The journey distance can be 1. Check battery is charged. - Page 17 INSTRUCTION MANUAL TP FIT 36 V 11 RECYCLING AND DISPOSAL 11.1 DISPOSAL Mechanical and electrical devices, accessories and packaging should be taken for recycling in an environ- mentally responsible manner. Do not dispose of them in the household waste! For EU countries only: According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation in national law, chargers that can no longer be used must be collected separately and recycled in an environmentally responsible manner.
