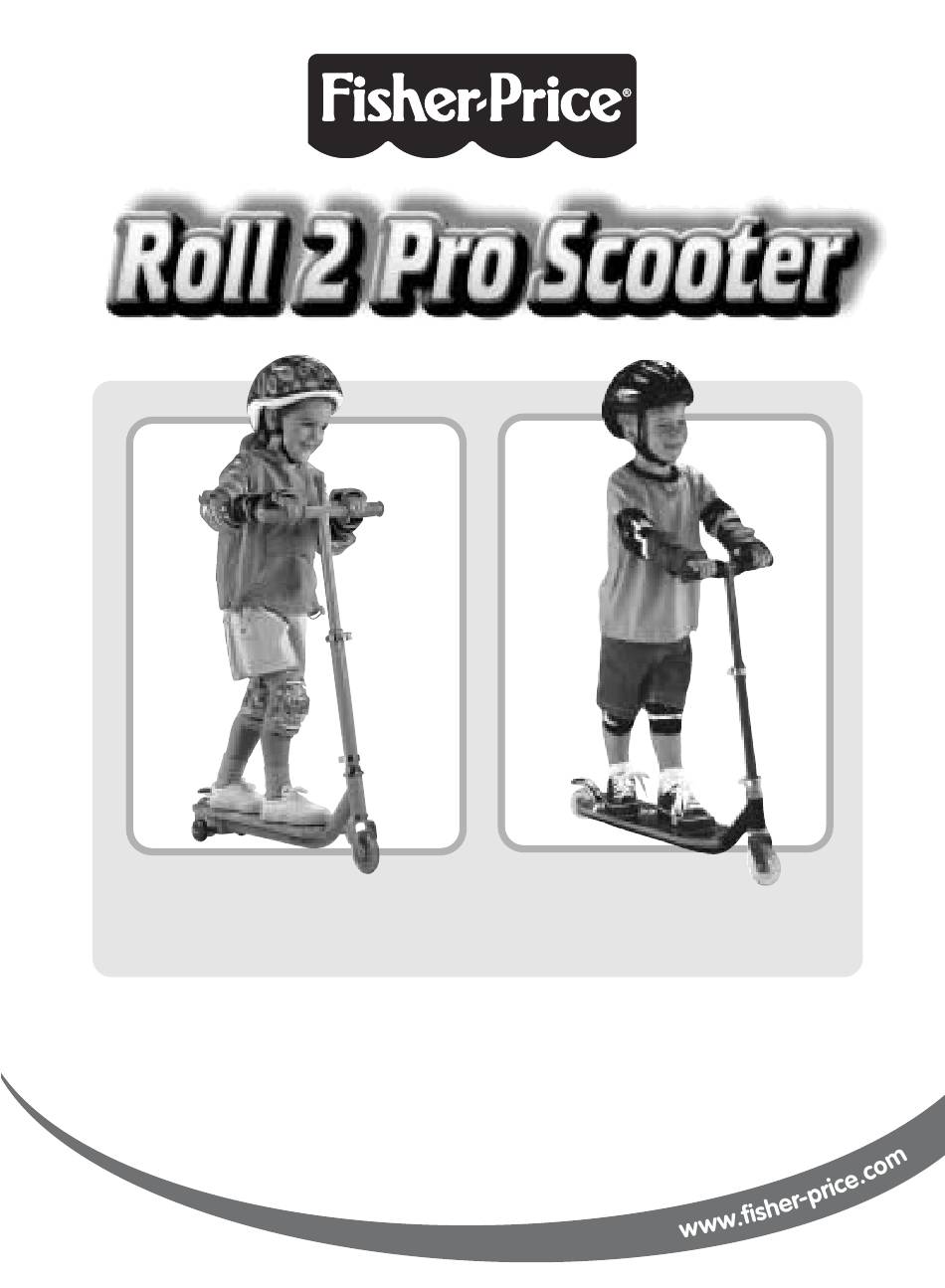

Product Numbers: 78558, 76927
Advanced
Beginner
without training wheels
with training wheels
(Helmet, wrist guards and protective pads not included.)
Please keep this instruction sheet for future reference,
as it contains important information.
Adult assembly is required.
Tool needed for assembly: One Allen Wrench (included)
and a Phillips Screwdriver (not included).
Tool needed for removal of training wheels
Two Allen Wrenches (included).
Ages 5+. Weight Limit: 150 lbs. (68 kg).
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Fisher-Price Roll 2 Pro
Summary of Contents for Fisher-Price Roll 2 Pro
- Page 1 Product Numbers: 78558, 76927 Advanced Beginner without training wheels with training wheels (Helmet, wrist guards and protective pads not included.) Please keep this instruction sheet for future reference, as it contains important information. Adult assembly is required. Tool needed for assembly: One Allen Wrench (included) and a Phillips Screwdriver (not included).
- Page 2 WARNING To prevent injury: • Keep away from cars and streets. • Protective equipment should be worn, including helmet, wrist guards, knee pads and elbow pads. • Never allow more than one rider. IMPORTANT! Please take a few moments to review the following safety tips with your rider.
- Page 3 Assembly Assembly Slot Hole Handlebar Press Handle Button Tube • While pressing the button on the handlebar, insert it into the end of the handle tube. • Push the handlebar into the handle tube until the button "clicks" into Handle Tube the hole in the handle tube.
- Page 4 Assembly Assembly Clamp Clamp • Tighten the bolt in the clamp with an Allen wrench. • Pull the handle tube up to be sure it M5 x 7mm Screw is secure. If it is not secure, please SHOWN ACTUAL SIZE review assembly steps 3-5.
-
Page 5: Handle Height Adjustment
Handle Height Adjustment Handle Height Adjustment Handlebar Thumb Handlebar Clamp • Open the handle tube clamp to unlock the handle tube. • Lift or lower the handle tube so that the handlebar is at a comfortable height for your child. •... - Page 6 WARNING To prevent injury: • Keep away from cars and streets. • Protective equipment should be worn, including helmet, wrist guards, knee pads and elbow pads. • Never allow more than one rider. Beginner Beginner Rear Brake • To stop the scooter, your child should press down with one foot on the rear brake, as shown.
- Page 7 Advanced Advanced Spacer Training Wheel For advanced use, remove the training wheels! • While holding one training wheel in place with an Allen wrench, • Make sure your rider stands in the loosen the other training wheel middle of the board. with another Allen wrench.
- Page 8 NEW ZEALAND 16-18 William Pickering Drive, Albany 1331, Auckland. ASIA Mattel East Asia Ltd, Room 1106, South Tower, World Finance Centre, Harbour City, Tsimshatsui, HK, China. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, NY 14052 U.S.A. PRINTED IN CHINA ©2004 Mattel, Inc.
