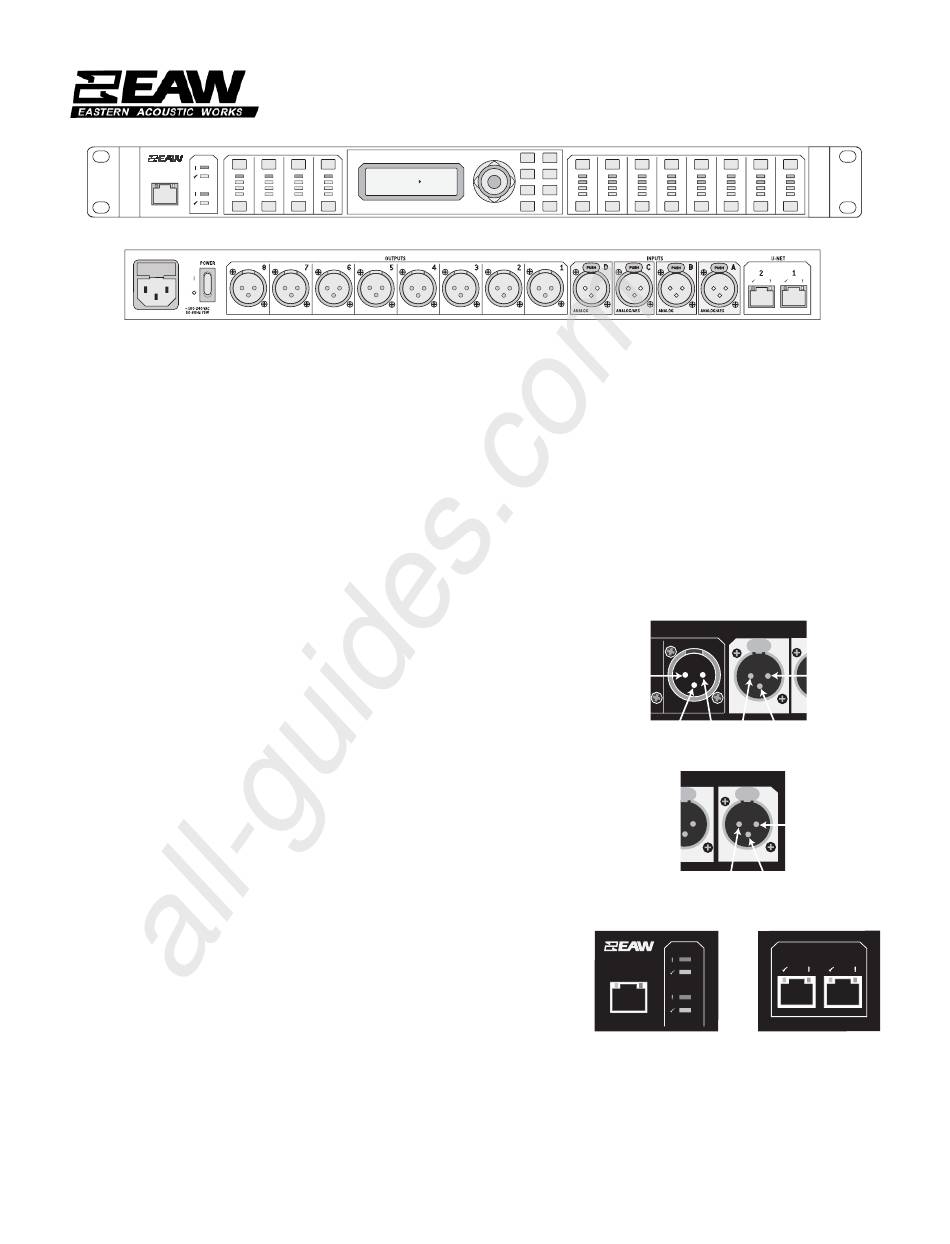

EAW UX8800 Quick Start

U-NET

1
A

ETHERNET

Clip
-6
2
-12
Sig
MUTE
1 B a s i c Ta s k s
· Connect audio signal cables, power cable, and, if needed, computer cable.
· Select the operating mode, input signal type(s), and temperature/humidity conditions.
· Select the signal source(s) for each input channel.
· Select the loudspeaker type for each input channel and assign the output channel(s).
· Adjust the amplifier and listening distance parameters for the output channel(s).
· Adjust input channel EQ, gain, polarity, and delay.
· For Generic Processing, use EAWPilot to adjust output channel EQ, gain, polarity, limiting, and delay.
2 H a r d w a r e I n s t a l l a t i o n
2.1

AC MAINS

Universal power supply maximum operating range is 100 V to 240 V, 50 Hz to 60 Hz
Use supplied IEC-type ac mains cable with Nema connector for nominal 115 V or with Schuko connector for nominal 230 V.
2.2

INPUTS A TO D

Cable: 2 conductor plus shield
Mating Connector: XLR-3 male
Analog:
Pin 1 Shield
Pin 2 Signal + or high
Pin 3 Signal - or low
Digital (AES/EBU):
Pin 1 Signal ground (shield)
Pin 2 Signal
Pin 3 Signal
2.3

OUTPUTS 1 TO 8

Cable: 2 conductor plus shield
Mating Connector: XLR-3 female
Analog:
Pin 1 Shield
Pin 2 Signal + or high
Pin 3 Signal - or low
2.4 ETHERNET
For control of the processor using EAWPilot.
Cable: Ethernet CAT-5 cable or better
Mating Connector: RJ-45
Wiring Configuration: Crossover (supplied ) for direct to computer connection
Standard for connection to a hub or switch
2.5 U-NET
For networking audio and computer control between multiple U-Net enabled products.
Cable: Ethernet CAT-5 cable or better
Mating Connector: RJ-45
Wiring Configuration: Standard or crossover (supplied): the ports auto-sense the wiring
3 E AW P i l o t S o f t w a r e I n s t a l l a t i o n
Install the EAWpilot™ program on a computer with the Microsoft® Windows operating system: XP, 2000, NT, ME, or Windows 98.
See EAWPilot's Help file for EAWPilot's operating instructions.
All manuals and user guides at all-guides.com
UX8800 DIGITAL SIGNAL PROCESSOR
QUICK START - Loudspeaker Processor Mode
INPUT CHANNELS
UX 8800
Speaker / System Processor
B C D
Crossover
Clip Clip Clip
SELECT
Limiter
-6 -6 -6
-12 -12 -12 EQ
Sig Sig Sig
MUTE MUTE MUTE

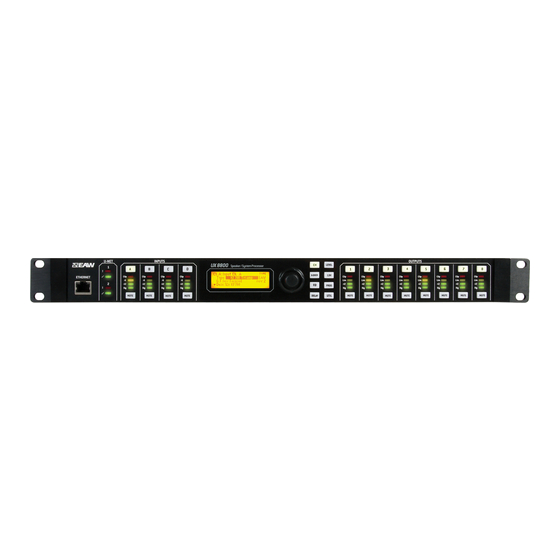

UX8800 Front Panel
UX8800 Rear Panel
OUTPUT CHANNELS
CH LEVEL
1 2 3 4 5
X-OVER LIM
Clip Clip Clip Clip Clip
Lim Lim Lim Lim Lim
-12 -12 -12 -12 -12
EQ PROG
Sig Sig Sig Sig Sig
DELAY UTIL MUTE MUTE MUTE MUTE MUTE
2
1 Shield
3-
Output
PUSH
ANALOG
U-NET U-NET
1
ETHERNET ETHERNET
2
FRONT PANEL
Ethernet Port / U-Net Indicators
6 7 8
Clip Clip Clip
Lim Lim Lim
-12 -12 -12
Sig Sig Sig
MUTE MUTE MUTE
1
D PUSH
PUSH
C
1 Shield
ANALOG/AES
ANALOG
2+ 2+ 3-
ANALOG
Input
B A
PUSH
1 Signal Earth
(cable shield)
ANALOG/AES
2 Signal 3 Signal
DIGITAL
Input
U-NET U-NET
2 1
REAR PANEL
U-Net Ports
