Table of Contents
- 1 Step 1 - Disconnect Power from Time Switch
- 2 Step 2 - Attach Antenna to Modem
- 3 Step 3 - Connect Modem to Time Switch
- 4 Step 4 – Reconnect Power to Time Switch & Modem
- 5 Step 5 - Verify Signal Strength
- 6 External Antenna Mounting Instructions
- 7 Omnidirectional, Turret-Style Antenna
- 8 Yagi Wide-Band Directional Antenna
- Download this manual
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RTC M2M
Summary of Contents for RTC M2M

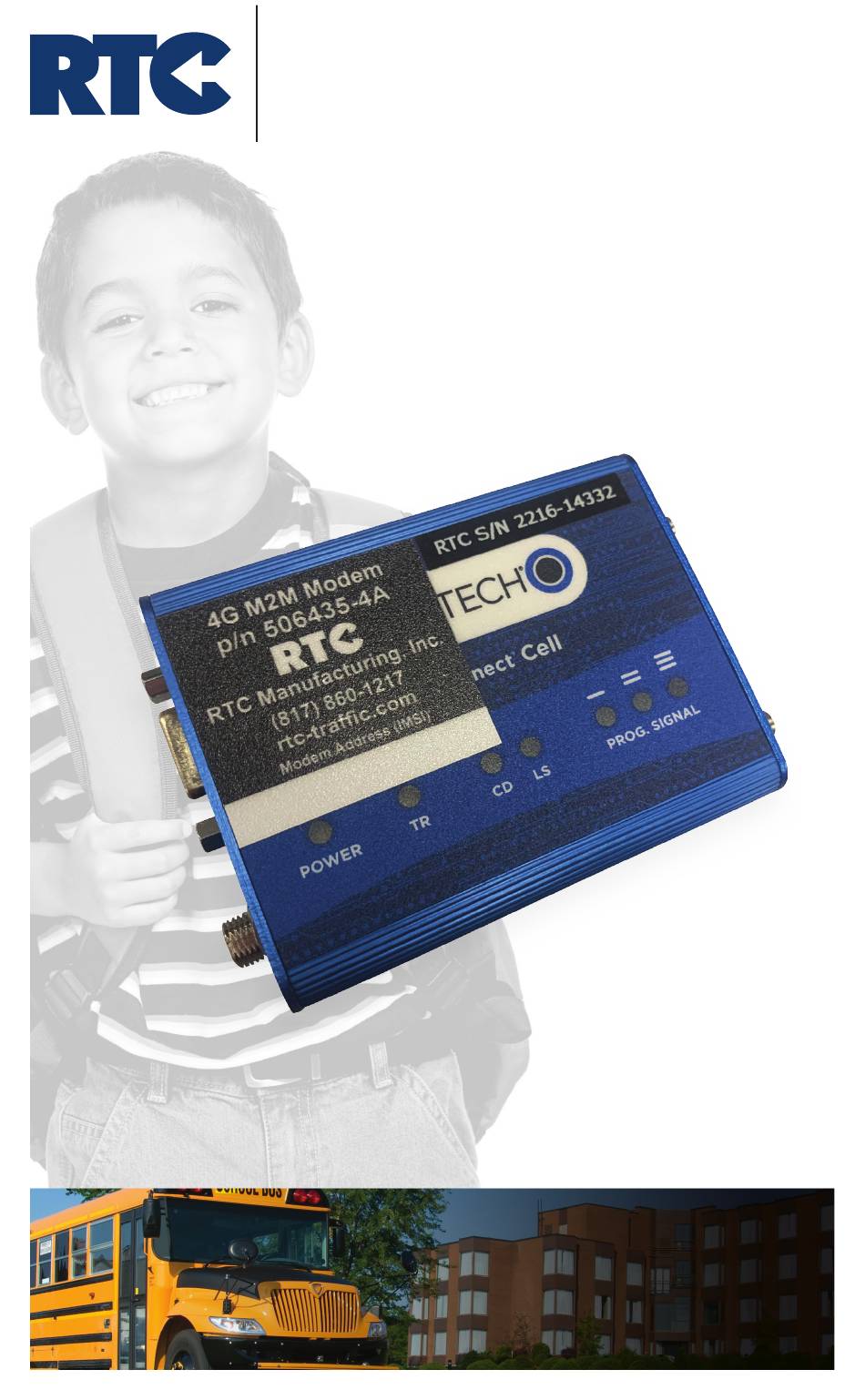

- Page 1 M2M 4G MODEM Installation Guide Pedestrian Safety Since 1987 RTC-TRAFFIC.COM 22108/0425...
- Page 2 Connect the 50-OHM “paddle” antenna to the female SMA antenna connector (labeled “CELL” on the modem). NOTE: RTC provides two alternate antennas with all orders to be used in areas with weak signal strength. Always install the “paddle” antenna first. Signal strength testing and alternate antenna installation is covered later in this guide.
- Page 3 STEP 4 – RECONNECT POWER TO TIME SWITCH & MODEM Reconnect the wiring harness to the bottom of the time switch, which will provide power to the time switch and the modem. Under typical operating conditions, the “POWER” LED on the modem will be solid. The “LS” LED will be steady ON as the modem searches for a connection and flash slowly when a connection is made.
- Page 4 (if required) NOTE: Limited quantities of the following alternate external antennas are provided with orders of cell modems from RTC. Additional antennas can be provided, if necessary. Please call RTC to request (800) 782-8721. OMNIDIRECTIONAL, TURRET-STYLE ANTENNA Install and test the signal strength of this antenna just like the “paddle” antenna. If it returns signal strength -95dB or better (i.e.
