ConvaQuip
S I T - T O - S T A N D L I F T
ConvaQuip STS600E
MODELS
ConvaQuip STS600E-D
Ensure the product has been assembled according to the
instructions in this manual.
All operators should have received or read and understood the
instructions for safe and proper operation of the patient lift.

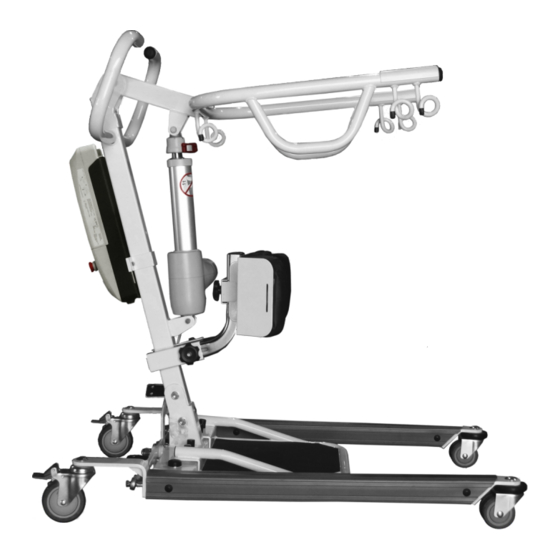

*ConvaQuip STS600E shown
