Summary of Contents for Eldes LAN MESSENGER

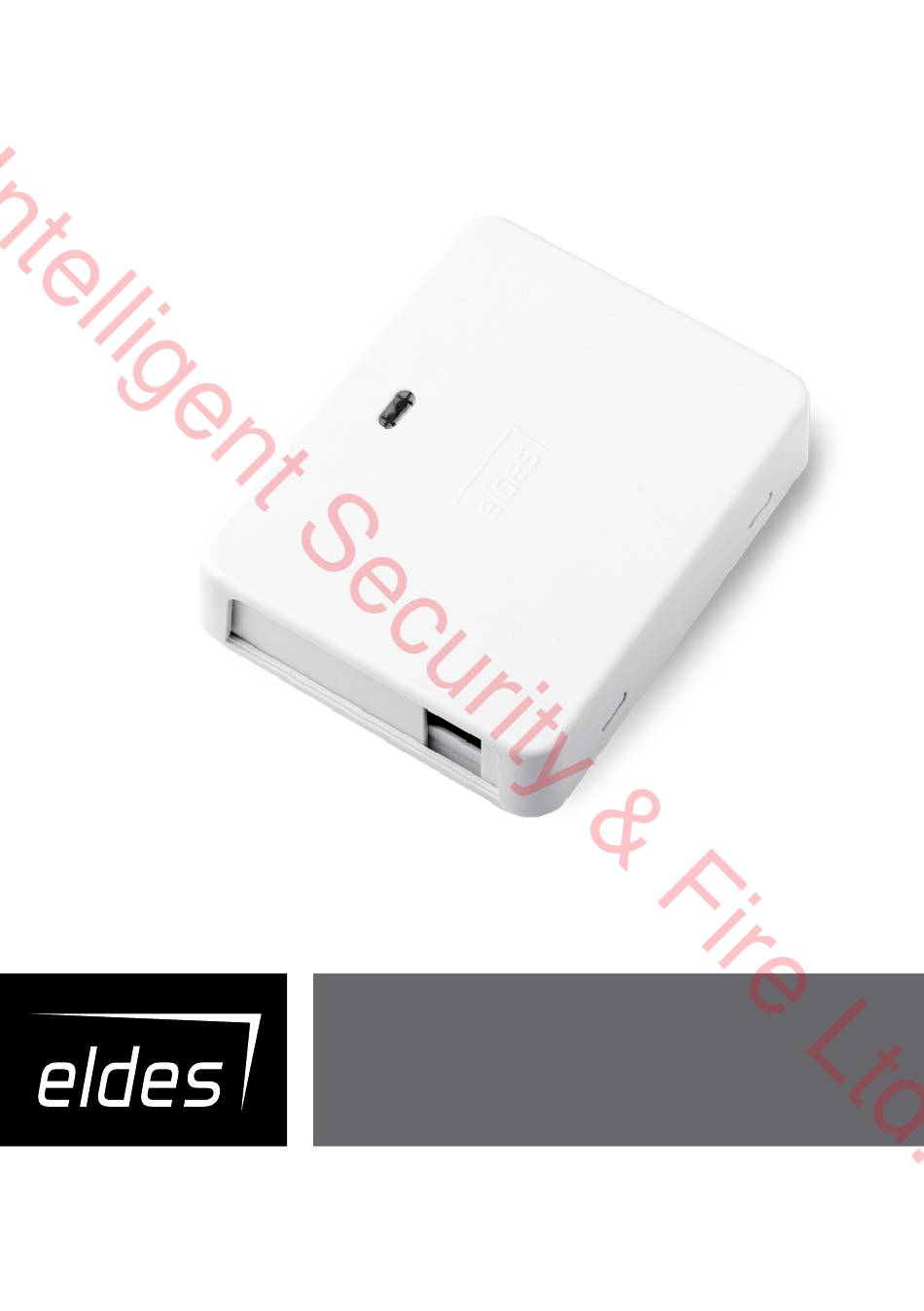

- Page 1 LAN MESSENGER ETHERNET AUTO DIALLER...
-
Page 2: Table Of Contents
“ELDES UAB”. “ELDES UAB” reserves the right to update or modify this document and/or related products without a warning. Hereby, “ELDES UAB” declares that the Ethernet auto dialler LAN MESSENGER is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at www.eldes.lt. -
Page 3: General Information
The buyer agrees that the device will reduce the risk of fire, theft, burglary or other danger but that it does not guarantee against the LAN MESSENGER is a micro-controller based device used to inform users regarding the state changes on digital inputs and control up to 2 electrical appliances connected to the open-collector outputs. -
Page 4: Main Unit, Led Indicator & Connector Functionality
Digital input terminal Electrical 3V power supply terminal appliance LAN (green) Green light-emitting diode indicating Ethernet activity LAN (yellow) Yellow light-emitting diode indicating Ethernet status +12V Alarm system or other appliance LAN MESSENGER Ethernet Auto Dialler LAN MESSENGER Ethernet Auto Dialler... -
Page 5: Installation
3. INSTALLATION 4. GENERAL OPERATIONAL DESCRIPTION LAN MESSENGER uses the Ethernet interface for connection to the Internet and event transmission by EGR100 protocol to up to 3 preset • The device should be installed indoors, in stationary environment ONLY. destination IP addresses. -
Page 6: Configure
Delay time, the device will immediately attempt to transmit it to the destination IP address, regardless of Delay time being in progress. Default value is 180 seconds. Value range is 1... 65535 seconds. Z1...Z4 – Input number: LAN MESSENGER Ethernet Auto Dialler LAN MESSENGER Ethernet Auto Dialler... - Page 7 Digital – The device measures the input voltage resulting in input state (violated/restored) change in accordance with the Thresh- User name – User name required for authorization to log in to LAN MESSENGER web server. Default user name is 1234.
- Page 8 · Wrong EGR100/ESR100 -based software configuration. EGR100/ESR100 - based software · TCP/UDP port not forwarded on the router for LAN MESSENGER device’s IP address and/or your ISP is permanently blocking a certain TCP/UDP port (-s). For product warranty repair service please, contact your local retail store where this product was purchased.
- Page 9 Made in the European Union www.eldes.lt...
