Eduard F4F-4 Quick Start Manual
Detail set for 1/72 airfix a02070 kit
Hide thumbs
Also See for F4F-4:
- Assembly manual (18 pages) ,
- Manual (5 pages) ,
- Quick start manual (4 pages)
Advertisement
Quick Links
1/5

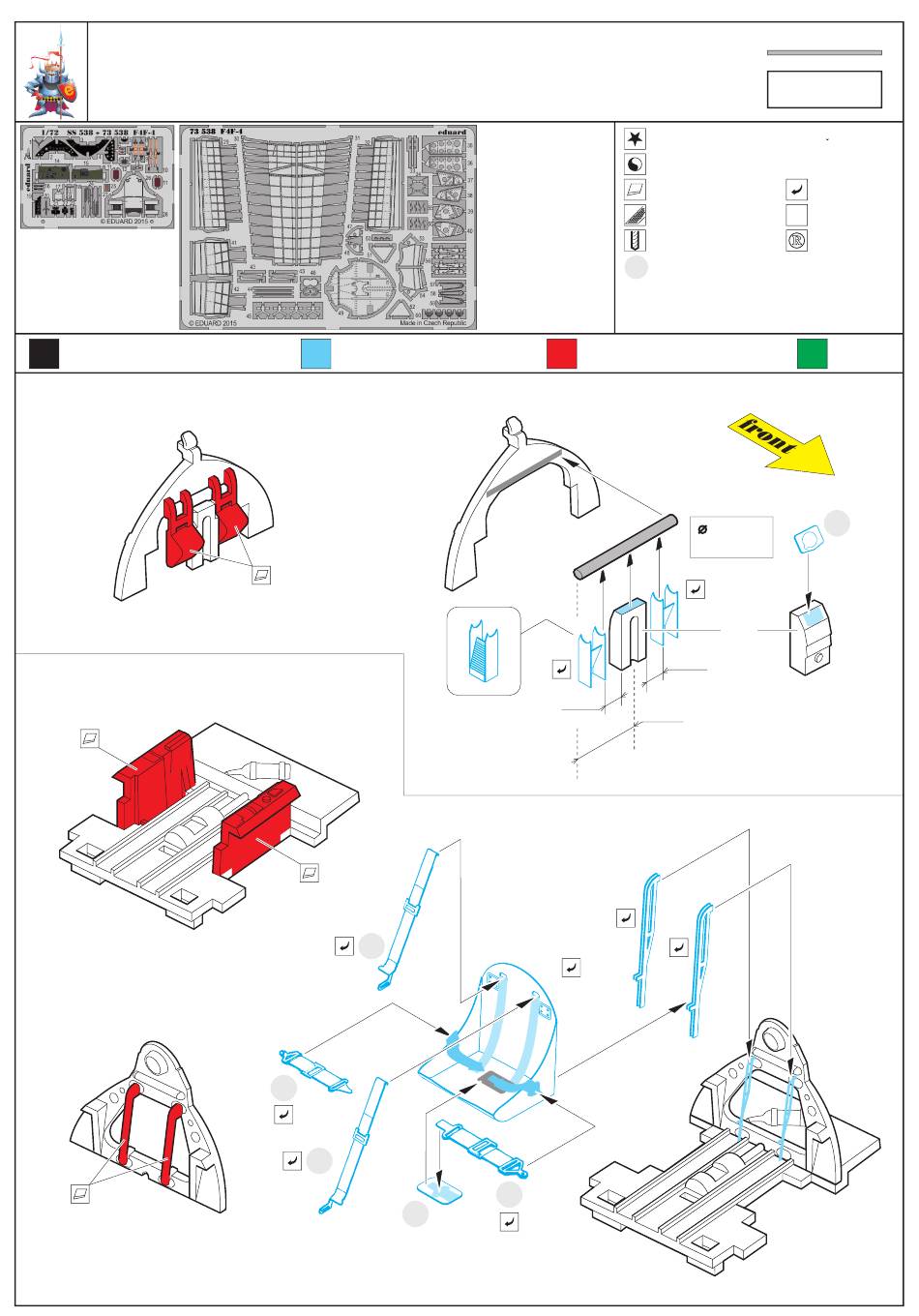

detail set for 1/72 AIRFIX A02070 kit • sada detailů pro stavebnici 1/72 AIRFIX A02070
ORIGINAL KIT PARTS
PŮVODNÍ DÍLY STAVEBNICE
B10
All manuals and user guides at all-guides.com

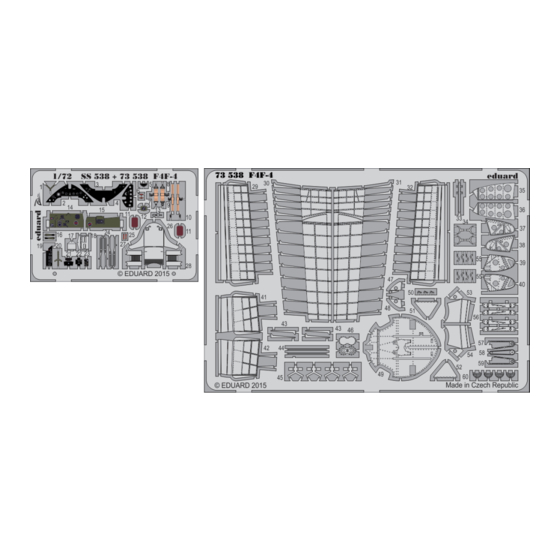

PHOTO-ETCHED PARTS
LEPTANÉ DÍLY
A8
10
7
A5
9
F4F-4
B10
28
1mm
26
8
11
APPLY EXPRESS MASK AND PAINT BEFORE GLUING
POUŽÍT EXPRESS MASK NABARVIT PRED SLEPENÍM
SYMETRICAL ASSEMBLY
SYMETRICKÁ MONTÁŽ
REMOVE
ODSTRANIT
GRIND
OBROUSIT
DRILL HOLE
VRTAT OTVOR
COLORED ETCHED PARTS
1
LEPTANÉ BAREVNÉ DÍLY
ETCHED PARTS
1
LEPTANÉ NEBAREVNÉ DÍLY
ORIGINAL KIT PARTS
1
PŮVODNÍ DÍLY STAVEBNICE
PARTS TO BE REMOVED
DÍLY K ODSTRANĚNÍ
plastic
- 1mm
l - 10mm
27
B10
1mm
5mm
24
24
73 538
eduard
73 538
BEND
OHNOUT
OPTION
?
VOLBA
REPLACE
NAHRADIT
FILL
TMELIT
12
A5
A8
