- Page 1 DExx-vd_isl Quick Start Guide This document is copyright © VGP Media Ltd 2022 All rights reserved worldwide VideoGameperfection.com is a trading name of VGP Media Ltd Registered in Republic of Ireland number 637539...
-
Page 2: Table Of Contents
Dexx-vd_isl Quick Start Guide VideoGamePerfection.com DExx-vd_isl – Quick Start Guide Contents Important safety information......................3 Overview............................4 Connectors and external controls....................5 Remote control..........................6 Getting started..........................7 Preparing the SD card.......................10 Powering on and testing......................14 Getting to know your DExx......................16 One scaler, three modes......................16 Changing modes........................17 Connecting a console, PCB or other hardware.................17 Scanlines...........................18... -
Page 3: Important Safety Information
Important safety information Please observe the following safety precautions when using your DExx-vd_isl board. Follow the instructions for your DE10 Nano – Ensure you are using the correct power supply for your DE10 Nano and following all relevant safety guidelines as supplied with your DE10 Nano kit. Turn off the power before connecting/disconnecting the board –... -
Page 4: Overview

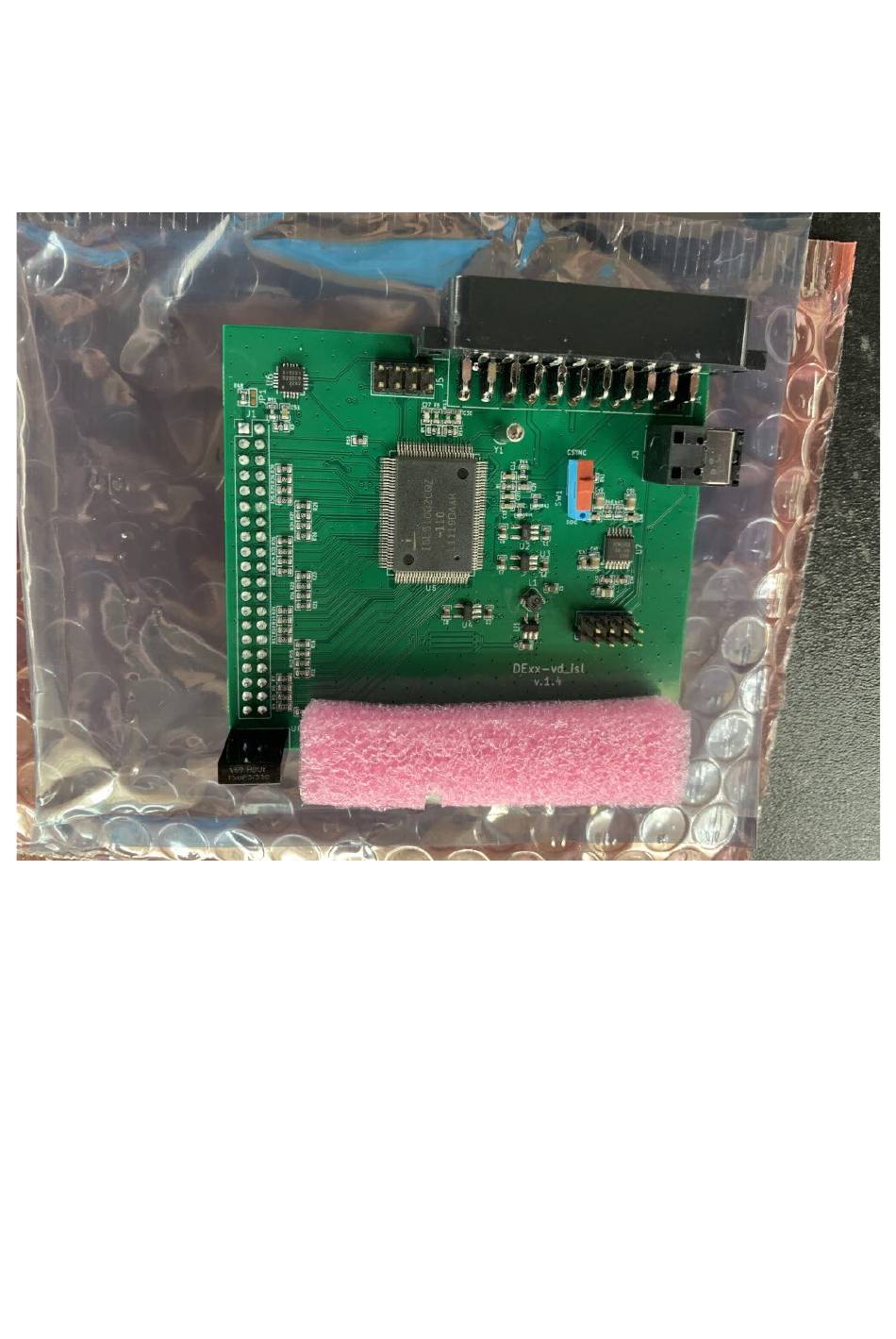

Dexx-vd_isl Quick Start Guide VideoGamePerfection.com Overview Page 4... -
Page 5: Connectors And External Controls
Connectors and external controls In the overview picture you can see the following features on your DExx-vd_isl board. SCART Input – Connect an RGB SCART source to this input. Note the input must be RGB or YPbPr, S-video and composite SCART sources are not supported and require transcoding into RGB first. -
Page 6: Remote Control
Dexx-vd_isl Quick Start Guide VideoGamePerfection.com Remote control The DExx-vd_isl uses the same IR remote as the OSSC. The button mappings are very similar, and can be seen below. Page 6... -
Page 7: Getting Started
Getting started Start by carefully removing any add on boards or MiSTer components from your DE10 Nano board, if applicable. A USB hub expansion such as the BlisSTer can be left in place but please disconnect all cables. Disconnect any Ethernet or USB cables and, if MiSTer software is installed, remove your MiSTer system SD card and store it away safely. - Page 8 Dexx-vd_isl Quick Start Guide VideoGamePerfection.com Orient your DE10 Nano board so that the Ethernet connector is at the front, and the HDMI and power connectors are at the back. Leave the video and power connectors disconnected for now. Note the pin sockets highlighted in yellow, we will need those later. Carefully place the connector from the DExx on to the connector on the right of the DE10 Nano board, as highlighted in red in the picture above, with the SCART socket on the DExx pointing to the back.
- Page 9 meaning there should be no exposed pins at either end. Connect the male end of the jumper cable to the DE10 Nano as shown in the picture below. Check that the jumper cable is inserted into the correct place. Refer to the previous picture where the correct pin sockets are highlighted in yellow.
-
Page 10: Preparing The Sd Card
Dexx-vd_isl Quick Start Guide VideoGamePerfection.com Preparing the SD card The DExx requires operating software/firmware to be installed on an SD card. This SD card needs to be prepared with a bootloader the first time you use it. Start by downloading the latest version of the bootloader and firmware from the link here:- https://github.com/marqs85/DExx-vd_isl/blob/master/board/de10-nano/software/bootloader/ sd_image/sdcard_cv.img?raw=true... - Page 11 Insert your MicroSD card into your PCs card reader and make a note of the drive letter or assignment. Now, in the Etcher software, click on “Select Target”. The window shown below will appear.
- Page 12 Dexx-vd_isl Quick Start Guide VideoGamePerfection.com Be sure to select the correct destination drive from the list. All data on the destination will be erased, so triple check that you have the right one before clicking on “Select (1)”. Now, click on “Flash!”. Depending on your OS and how your computer is configured, you may need to grant permission for the file to be written or enter your administrator password.
- Page 13 You can now remove the MicroSD card and insert it into the SD card socket on the DE10 Nano board. These steps to prepare the SD card only need to be done once per SD card. Future firmware updates can be copied directly to the SD card using your operating system of choice. See “Firmware Updates”...
-
Page 14: Powering On And Testing
Dexx-vd_isl Quick Start Guide VideoGamePerfection.com Powering on and testing With the software installed and the hardware assembled, we can now perform a functional test of the DExx. Start with all of your devices powered off. Connect the SCART input cable between the DExx and your retro console or computer and the HDMI cable between the DE10 Nano and your display. - Page 15 You should now see a picture from your analogue video device. Verify that audio is working correctly by starting a game or test software. We recommend Artemeo’s 240p test suite which is available for several retro video games consoles and includes a useful audio test. You can download this software here:- https://junkerhq.net/xrgb/index.php?title=240p_test_suite Congratulations, you have now set up your DExx-vd_isl board and you can start experimenting...
-
Page 16: Getting To Know Your Dexx
Dexx-vd_isl Quick Start Guide VideoGamePerfection.com Getting to know your DExx All settings for the DExx are configured using the on-screen menu. To call up the menu at any time, press the Menu On/Off button on the remote. The root or top level menu is shown below. You can return to the top level menu at any time by pressing the “Back”... -
Page 17: Changing Modes
Changing modes To change between line multiplier and scaler mode, navigate to the top level menu and then select “Output opt.” and press “OK”. you should now see the options shown below. Use the left and right navigation buttons on the remote to change between “Line multiplier” and “Scaler”. -
Page 18: Scanlines
Dexx-vd_isl Quick Start Guide VideoGamePerfection.com Scanlines Vintage games consoles such as the Sega Megadrive and Nintendo SNES used a special screen mode which resulted in alternating lines on a CRT display being left blank. Typically when people in the retro-gaming communities refer to scanlines, they mean the blank lines between parts of an image on a CRT that were a result of this screen mode. - Page 19 You can now choose the output resolution based on the input resolution. The most common input resolutions are 240p for NTSC region retro consoles and 288p for PAL/European region consoles. There is no right or wrong setting for the output resolution, results will vary based on the scaler and processing in your television or monitor.
-
Page 20: Framelock
Dexx-vd_isl Quick Start Guide VideoGamePerfection.com Usually the best results in scaler mode are obtained by choosing the highest resolution supported by your display. If you do not get a picture, or the picture intermittently disappears or blanks, choose a lower resolution. Framelock Framelock is an important option to understand. -
Page 21: Fine Tuning The Image
Details of this modification will be available on the wiki. Please note that doing this modification may invalidate the warranty on your DE10 Nano and VideoGamePerfection.com/VGP Media cannot be held responsible for this. Remember, routing your DExx’s video output through equipment such as home theatre receivers or video processors can in many instances add input lag. -
Page 22: Troubleshooting
Dexx-vd_isl Quick Start Guide VideoGamePerfection.com Troubleshooting Symptom Possible Cause Solution Image has a vertical flicker/shimmer Interlace source connected Set deinterlace mode to motion effect adaptive, see page 20. Horizontal jitter/wobble on image Fine tuning required Try adjusting low pass filter settings. See the wiki for recommendations Missing pixels in the image Wrong optimal mode selected... -
Page 23: More Information
If your DExx malfunctions, please contact us via e-mail or through our website to arrange repair or replacement. All DExx units sold by VideogamePerfection.com/VGP Media come with one years warranty. Outside of warranty, we can service and repair most faulty units.
