Manual for WDF710Q WiFi module
1. Introduction
WDF710Q is a Wi-Fi module compliant with IEEE802.11 b.g.n MAC/baseband/radio optimized for low-
power applications. The core chipset is from Atheros, part number QCA6006.
2. Hardware Architecture:
2.1 Main Chipset Information
Item
IEEE802.11 b.g.n
mac/baseband/radio
2.2 Circuit Block Diagram
The major internal and external block diagram of WDF710Q is illustrated in Figure 1-1.
2.3 Module output power information
802.11 b
802.11 g
802.11 n
Version 1.0

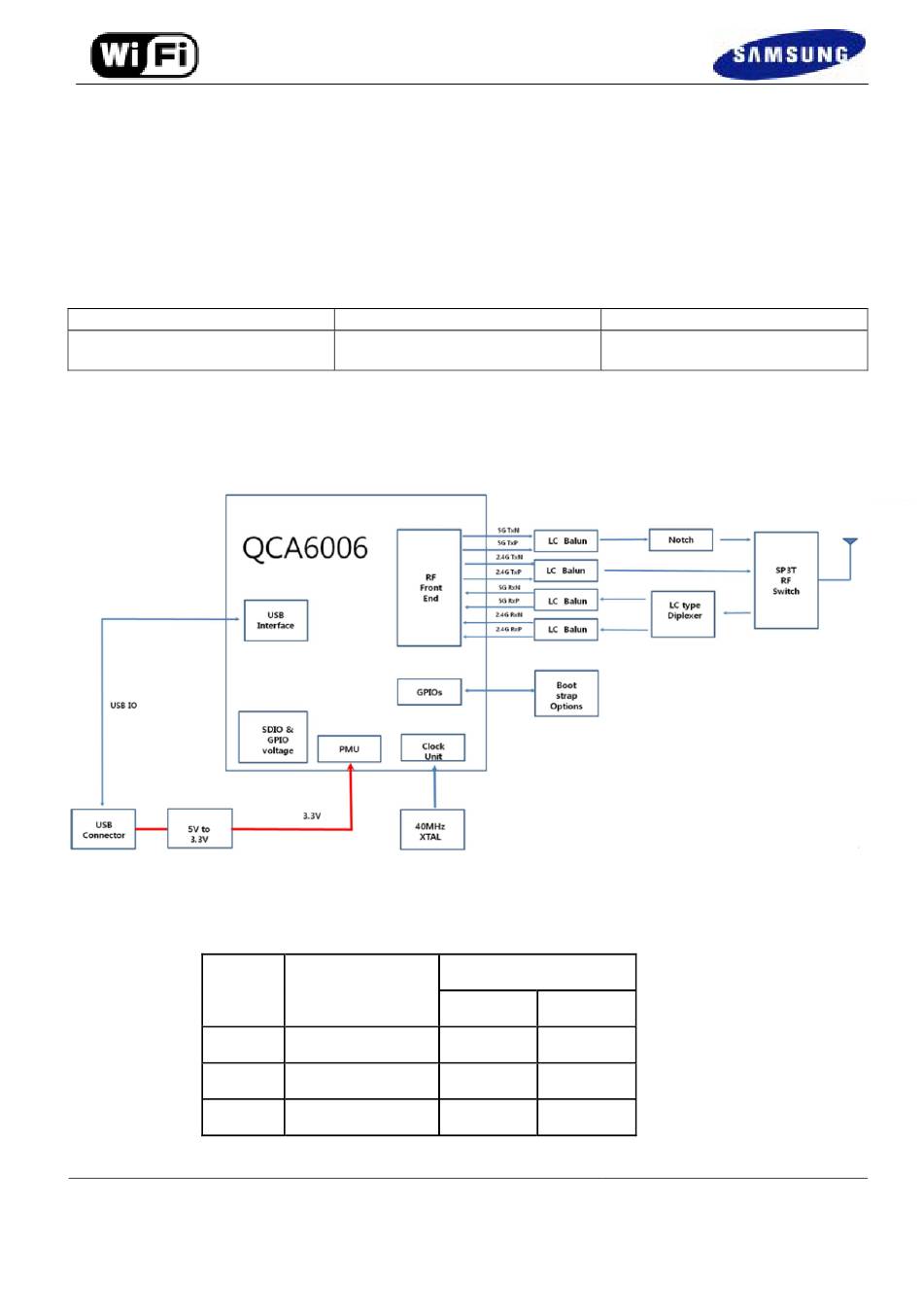

Figure 1-1 WDF710Q block diagram and System Interface
Data rate
11Mbps
54Mbps
65Mbps (MCS7)
Samsung Electronics
Vendor
Atheros
TX power
2.4G
5G
18dBm
14dBm
10dBm
13dBm
8dBm
Part Number
QCA6006
page 1 of 5
Advertisement
Table of Contents
Related Manuals for Samsung WDF710Q
Summary of Contents for Samsung WDF710Q
- Page 1 IEEE802.11 b.g.n Atheros QCA6006 mac/baseband/radio 2.2 Circuit Block Diagram The major internal and external block diagram of WDF710Q is illustrated in Figure 1-1. Figure 1-1 WDF710Q block diagram and System Interface 2.3 Module output power information TX power Data rate 2.4G...
- Page 2 3. Operational Description WDF710Q is the 802.11 b/g/n RF Module that acts as a communication controller for users of a wireless device to connect to WiFi TV. This uses IEEE 802.11n network with 13 channels at 2.4GHz and 27channels at 5GHz - Features >IEEE 802.11n, Single stream 1x1...
- Page 3 13.9 13.8 HT20MCS2 16.7 16.8 16.7 13.9 13.8 HT20MCS3 16.8 16.9 14.1 14.2 HT20MCS4 16.1 16.1 15.6 12.7 13.2 HT20MCS5 15.1 14.9 15.2 10.8 11.2 11.2 HT20MCS6 14.1 HT20MCS7 13.2 13.4 13.3 Version 1.0 Samsung Electronics page 3 of 5...
- Page 4 Label for end product must include “Contains FCC ID: WDF710Q” or “A RF transmitter inside, FCC ID: WDF710Q” Version 1.0...
- Page 5 5. Installation This radio module must be installed in a device and not allow the user to replace nor modify it. Top view 5 Pin Connector Connected with Cable Version 1.0 Samsung Electronics page 5 of 5...
