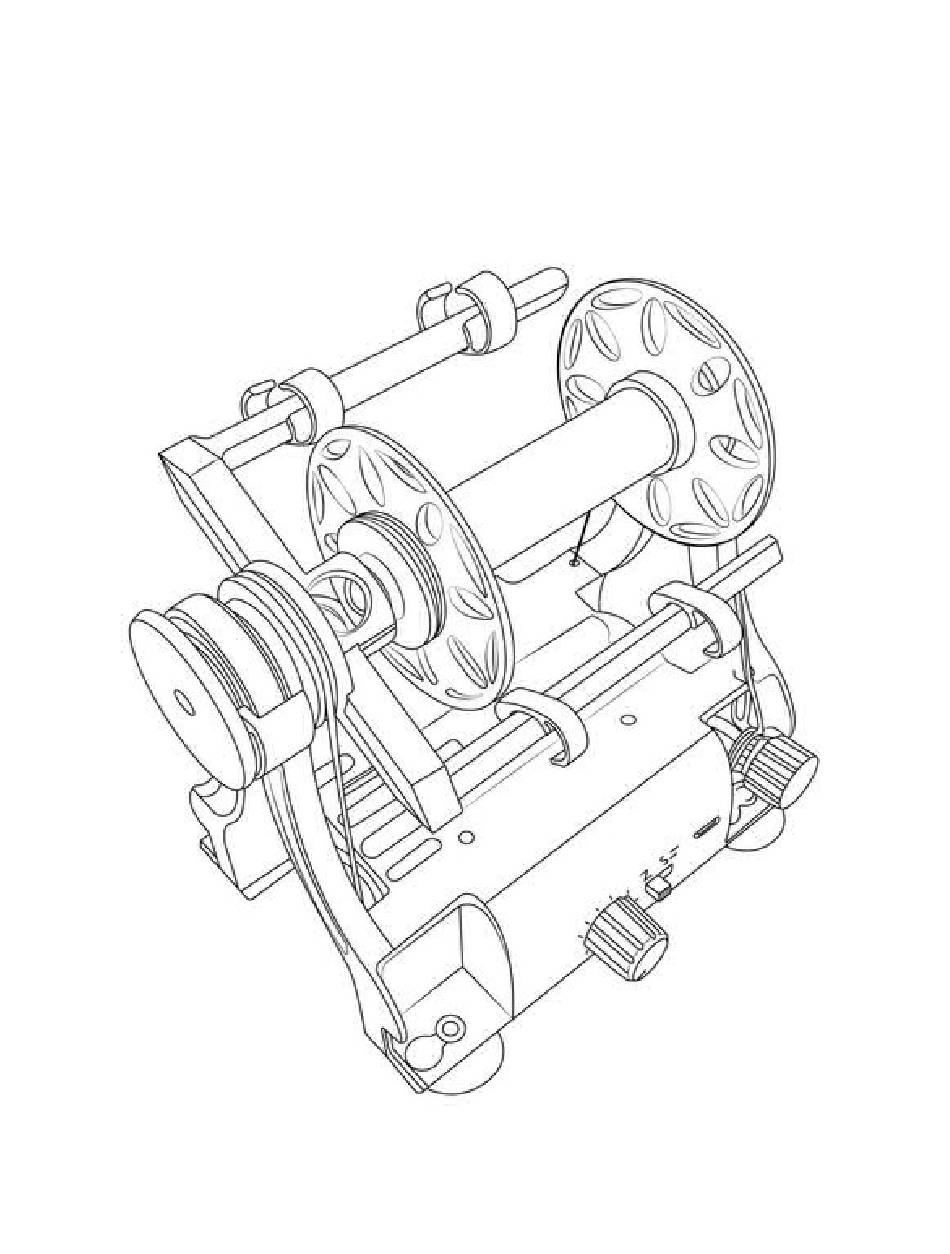

- Page 1 Electric Eel Wheel Nano 2 User Manual February 7, 2022 Thanks for joining the EEW community! The EEW Nano 2 is an ultra portable and affordable e-Spinner. This guide will help you get started with your new spinning wheel.
-
Page 2: Parts List
Safety This product has moving parts, and injury can result if used improperly. Before you plug in the wheel, set the speed control to zero by turning the dial counterclockwise as far as it can go. Be mindful of your surroundings and don’t let any objects touch the spinning parts on the product while it is running. -
Page 4: Initial Setup
Initial Setup When you receive the EEW, you need to spend a few minutes putting together some parts. No tools are required for this assembly. First, assemble the bobbins. Screw the bobbin disks onto a bobbin tube. Next, slide a bobbin onto the flyer. Put a metal bearing onto the back of the flyer and slot the whole flyer assembly into the base. - Page 5 3) Plug the other end of the USB switch into the EEW Nano 2’s power plug. 4) Plug the power supply into the wall, or if you're using a battery pack turn it on now. 5) Slowly turn the speed dial clockwise to increase the speed of the flyer.
- Page 6 Adjusting Uptake Uptake pulls the yarn you are spinning onto the bobbin. With too little uptake, the yarn will not feed onto the bobbin. With too much uptake, the wheel will pull the yarn out of your hands too soon, and your yarn will be under-twisted and prone to breaking.
- Page 7 Tension Dial Effect on Tension Effect on Effect on String Uptake Yarn Twist Clockwise Tightens tension More Fewer twists string uptake Counter- Loosens tension Less uptake More twists clockwise string Z and S Twist The twist switch sets the direction of the twist added to the yarn as it is spun or plied.
- Page 8 Threading the Flyer Tie a piece of yarn onto your bobbin disk as shown below so it can’t slip. You will use this yarn as a leader for your roving. Thread this lead yarn through the hooks on the flyer arms. Then use the orifice hook to pull the leader out to the front of the wheel.
- Page 9 Changing Bobbins To remove a bobbin: 1) Remove the tension string from the bobbin. 2) Remove the drive belt from the drive belt groove on the flyer. 3) Lift off the flyer and remove its rear bearing. 4) Slide the bobbin off the flyer. Install a new bobbin by reversing these steps.
- Page 10 Orifice Reducer An orifice reducer is installed on the front of your flyer. When you spin thinner yarn, leave it in place to reduce the yarn's wobble as it moves through the orifice. For thicker yarn, remove it by sliding it out of the orifice.
-
Page 11: Other Resources
Other Resources www.dreamingrobots.com/eew-battery-power has USB battery • options if you want to spin without a wall plug. • www.dreamingrobots.com/eew-nano has updated instructions and videos for the EEW Nano 2. There is also an FAQ that will help answer common questions. •... - Page 12 Electric Eel Wheel Nano 2 www.dreamingrobots.com/eew-nano EEW Nano 2 User Manual brought to you by:...
