Summary of Contents for GLP Santinel WiFi

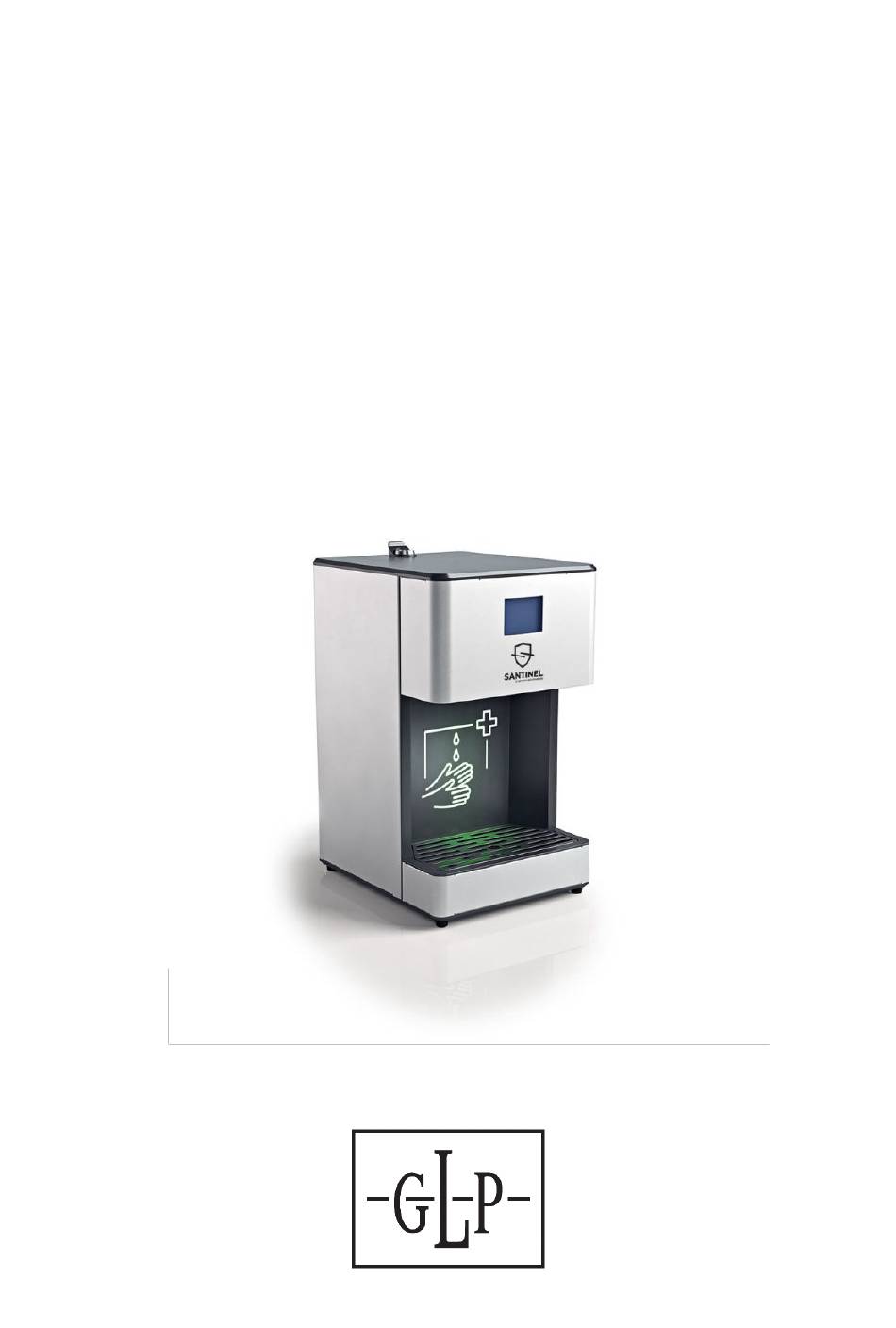

- Page 1 Santinel WiFi Santinel Cellular Hand Disinfecting Station User Manual User Manual Rev. 20220607-1 – Firmware V. 1.0.0...
- Page 2 GLP® Santinel WiFi / Cellular - Hand Disinfecting Station User Manual © 2020-22 German Light Products GmbH. All rights reserved. The marks ‘GLP’ and ‘German Light Products’ are trademarks registered as the property of German Light Products GmbH in Germany, in the United States of America and in other countries.
-
Page 3: Table Of Contents
9. Cleaning and maintenance ............25 Suggested maintenance intervals ........... 25 Cleaning the housing ..............25 Cleaning the nozzle ..............26 GLP Service and Support ............26 10. Troubleshooting ................27 11. Technical Specifications .............. 28 12. Dimensions ..................30... -
Page 4: Safety
If you have any questions about the product, contact your GLP® supplier for assistance. Your GLP supplier will be happy to help. Areas of application •... -
Page 5: General
• Use the product only as directed in this user manual. Observe all markings in this user manual and on the product. • Refill the product with hand disinfectant from GLP only. • Ensure that there is free and unobstructed airflow around the product. -
Page 6: Disinfectant Safety
Do not reapply power until the product has been repaired and made safe by a technician authorized by GLP. • If a fuse blows, replace it with one of the original type and rating only. If new fuses blow, disconnect the product from power and send it to a technician authorized by GLP for repair. - Page 7 German Light Products® • Product overview Figure 1. Overview A. Access flap H. Disinfectant fluid container B. Backlit LCD display Container cap with fluid hose connector C. Standby button (on left-hand side of housing) J. Fuse holder D. Dispensing area K.
-
Page 8: Features
2. Features The Santinel from GLP is an automatic hand sanitizer designed for permanent or temporary indoor use that provides protection with a viricidal, disinfecting agent. The disinfectant is suitable for use against a wide range of bacterial and viral pathogens including coronaviruses belonging to the group coronaviridae. -
Page 9: Preparing For Use
Physical installation The Santinel is suitable for mounting on the Santinel Tower Stand accessory available from GLP, on a horizontal surface or on a vertical surface using the Santinel Wall Mount also available from GLP. Mounting upright on a level surface The Santinel may be placed upright on a level surface. - Page 10 Do not screw a foot out of the base so far that it becomes unstable Figure 4. Santinel on Storage Tower or falls out. GLP Santinel User Manual...
-
Page 11: Installing Batteries
German Light Products® 3. Open the storage compartment door and note the positions of the two camlock fasteners (arrowed in Figure 4) in the top of the stand. 4. Place the Santinel onto the stand as shown in Figure 4, passing the camlock fasteners into the receptacles in the bottom of the Santinel. -
Page 12: Connecting To Mains Power
If the Santinel appears to be completely shut down even though power is applied, the main fuse may have blown. Disconnect the Santinel from power before replacing the fuse. Replace only with a fuse of the same type and rating. GLP Santinel User Manual... -
Page 13: Using The Santinel
German Light Products® 4. Using the Santinel Warning! Read ‘Safety’ starting on page 4 for important safety information that you must understand before you install or operate the fixture. Switching on and off See ‘Product overview’ on page 7. The main power ON/OFF switch is located under the locking flap on top of the Santinel. - Page 14 • The disinfecting area lights up with a green light as a signal to the user to remove their hands. • When the user has removed their hands, the Santinel goes back to its ‘Ready to dispense’ state as described above. GLP Santinel User Manual...
-
Page 15: Control Panel
German Light Products® 5. Control panel The Santinel features a control panel (see Figure 7) with four buttons underneath the locking flap on top of the dispenser. The control panel and LCD display on the front of the Santinel let you read out information and change settings to configure the Santinel. -
Page 16: Lcd Display While Using The Control Panel
Santinel is activated. To reset the counters, open the control menus and go to Information → Counters, then press and hold [ENTER] for 3 seconds (or press [MENU/BACK] to cancel and escape). GLP Santinel User Manual... - Page 17 German Light Products® Dispense Duration – Adjust the amount of fluid per process You can adjust the amount of disinfectant fluid dispensed at each activation by adjusting the length of time disinfectant is dispensed. To adjust dispensing time, open the control menus and go to Dispense Duration → Set Value, then use [UP] and [DOWN] to increase or decrease the duration of each dispensing operation in 0.1 second steps.
- Page 18 • Counter readouts. To reset the counters when replacing the disinfectant container, press and hold [ENTER] for 3 seconds (or press [MENU/BACK] to exit the counters without resetting them). To exit the information menus, press [MENU/BACK]. GLP Santinel User Manual...
-
Page 19: Santinel Web Interface And Smartphone App
Your GLP supplier will be happy to give you details. WiFi configuration The Santinel WiFi can be connected to a WiFi network and you can use the Santinel app to control the Santinel WiFi remotely. For this the Santinel need to be connected to a WiFi network with internet access. - Page 20 Santinel app, you need to pair the Santinel device with a Santinel account using account pairing. To do this: 1. Connect the Santinel to the Internet (when a Santinel WiFi or Santinel Cellular is powered on, it looks for a WiFi signal or cellphone signal and connects to the internet automatically).
-
Page 21: Replacing The Disinfectant Container
German Light Products® 7. Replacing the disinfectant container The Santinel controls disinfectant consumption and current disinfectant level by counting the number of disinfecting processes carried out, measuring the disinfectant fluid level in several stages and checking the pipe system for empty running. If the Santinel runs out of disinfectant, it will indicate the need for a new container and shows a message on the display. - Page 22 11. Take the sealed lid that was on the new container and screw it onto the old, empty container. Recycle or dispose of the empty container properly. If in doubt about where to dispose of used disinfectant containers, consult your disinfectant supplier. GLP Santinel User Manual...
-
Page 23: Control Menus Overview
German Light Products® 8. Control menus overview Level 1 Level 2 Notes To reset the counter, press and hold [ENTER] for 3s. Replace Canister Reset Counter [ENTER] To cancel and escape, press [BACK]. Use the [UP/DOWN] buttons to decrease or increase the duration of each dispensing process Dispense Set Value …... - Page 24 Information Cellular Shows information on cellphone connection. Shows readouts for total number of completed disinfection processes, total number of aborted Counters disinfection processes and approximate number of disinfection processes remaining until the container will be empty. GLP Santinel User Manual...
-
Page 25: Cleaning And Maintenance
German Light Products® 9. Cleaning and maintenance WARNING! Any service operation that requires removal of a cover must be performed by a professional service technician with the necessary tools, skills, qualifications and personal protective equipment to maintain and repair electronic and electrical medical equipment safely and efficiently. Suggested maintenance intervals The recommended intervals for servicing the Santinel are as follows: Maintenance task... -
Page 26: Cleaning The Nozzle
It is only necessary to dismantle the sealing mechanism if the nozzle becomes extremely clogged. GLP Service and Support Contact information for the nearest GLP Service and Support is available online at www.glp.de/en/service, by email at info@glp.de, or by telephone at the following numbers: •... -
Page 27: Troubleshooting
(WiFi or cellphone) is installed in the Santinel. web interface or installed If you have any questions, get in touch with smartphone app GLP Service or your GLP dealer. Incorrect Check that the WiFi or cellphone network configuration is done correctly. If necessary,... -
Page 28: Technical Specifications
Mounting on horizontal surface: Standing, two quick-release camlock fasteners Mounting on vertical surface: Optional wall mounting plate Optional storage tower available Electrical Power options: Mains power or battery Mains power: 100-240 VAC / 50-60 Hz Batteries: 6 x D-size, 1.5 V GLP Santinel User Manual... - Page 29 Weight not incl. disinfectant or bracket: 9.0 kg (19.9 lbs.) Santinel storage tower Height: 973 mm (38.4 in.) Width: 400 mm (15.8 in.) Depth: 450 mm (17.8 in.) Weight: 18.5 kg (40.8 lbs.) Santinel Flightcase 1 (Single Transport Flightcase) Contact GLP for availability details Rev. 20220607-1...
-
Page 30: Dimensions
12. Dimensions GLP Santinel User Manual... - Page 31 Base Access flap...
- Page 32 Wall Mount Plate...
