This document is an installation and connection manual for the Portal product manufactured
by Eumar. Follow the guidelines in this document to install the product correctly.
NB! Please note that some steps for installing and connecting the product can only be
performed by authorized and specially trained qualified personnel!

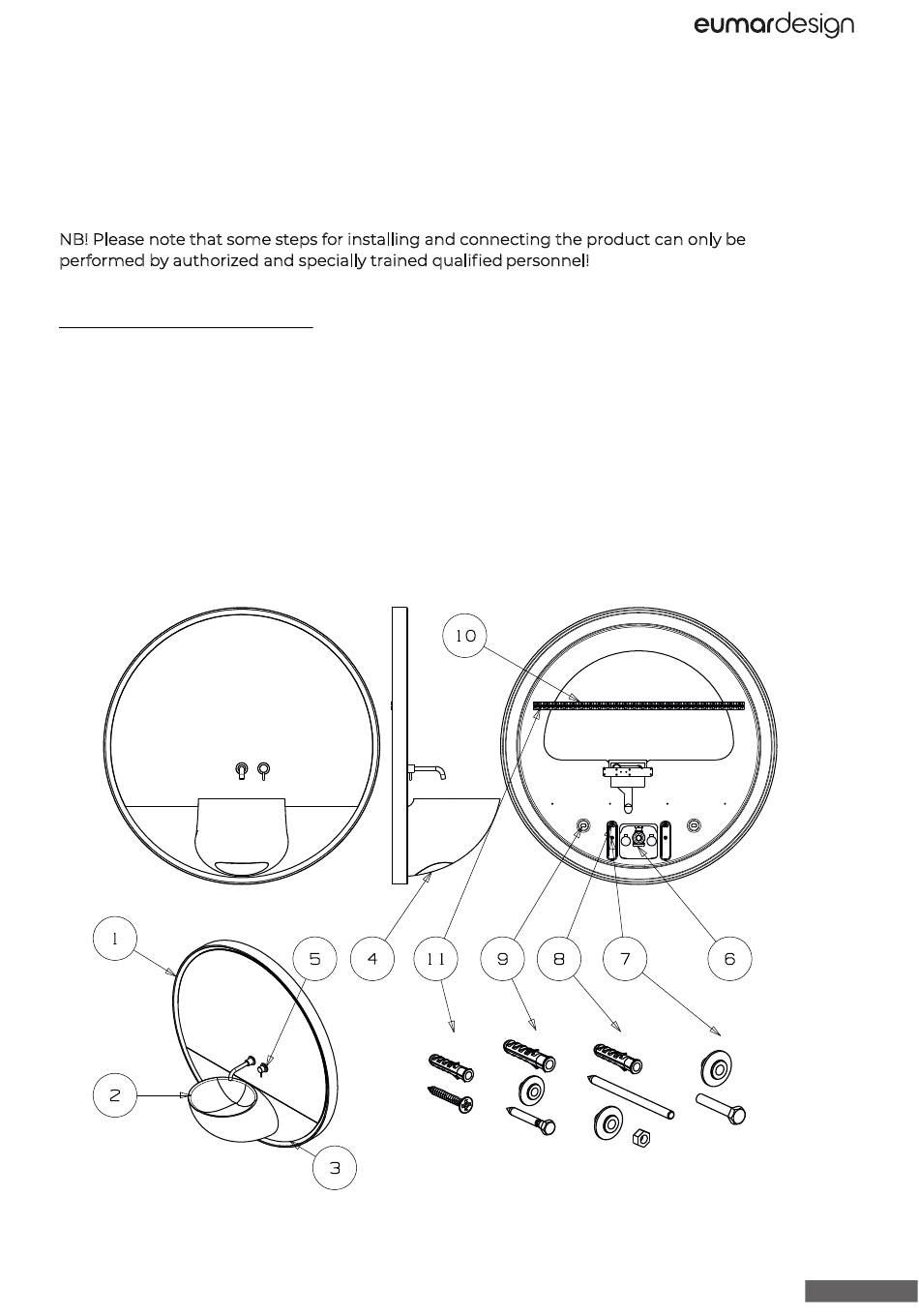

Portal washbasin set include:
1.
Portal Mirror frame - 1pc
2. Portal washbasin – 1pc
3.
Portal washbasin back wall – 1 pc
4. Portal washbasin service hatch – 1pc
5.
Faucet with hoses – 1pc
6. Bottle trap – 1pc
7. Fixing set for washbasin back panel – 2pcs
8. Fixing set for washbasin – 2pcs
9. Fixing set for mirror frame – 2pcs
10. Fixing strap for mirror frame – 1pc
11. Fixing set for mirror frame fixing strap – 4pcs
OÜ Eumar Santehnika Maleva 2e, 11711, Tallinn, Estonia Telefon: +372 60 50 530
Portal Washbasin installation manual
2x
4x
2x
E-mail: sales@eumar.ee
2x
Page 1/3
Advertisement
Table of Contents
Summary of Contents for eumar Portal wb 160c
- Page 1 This document is an installation and connection manual for the Portal product manufactured by Eumar. Follow the guidelines in this document to install the product correctly. NB! Please note that some steps for installing and connecting the product can only be performed by authorized and specially trained qualified personnel!
- Page 2 4. Screw in the mirror frame fixing bolts. Fix the product. Fig.2 4x screw 5x70 and dowels 2 x dowel 14x70 2 x dowel 12x60 Power supply cable 2 x 0,75mm2 (L=700mm) OÜ Eumar Santehnika Maleva 2e, 11711, Tallinn, Estonia Telefon: +372 60 50 530 E-mail: sales@eumar.ee Page 2/3...
- Page 3 Fig.3 Fig.4 OÜ Eumar Santehnika Maleva 2e, 11711, Tallinn, Estonia Telefon: +372 60 50 530 E-mail: sales@eumar.ee Page 3/3...
