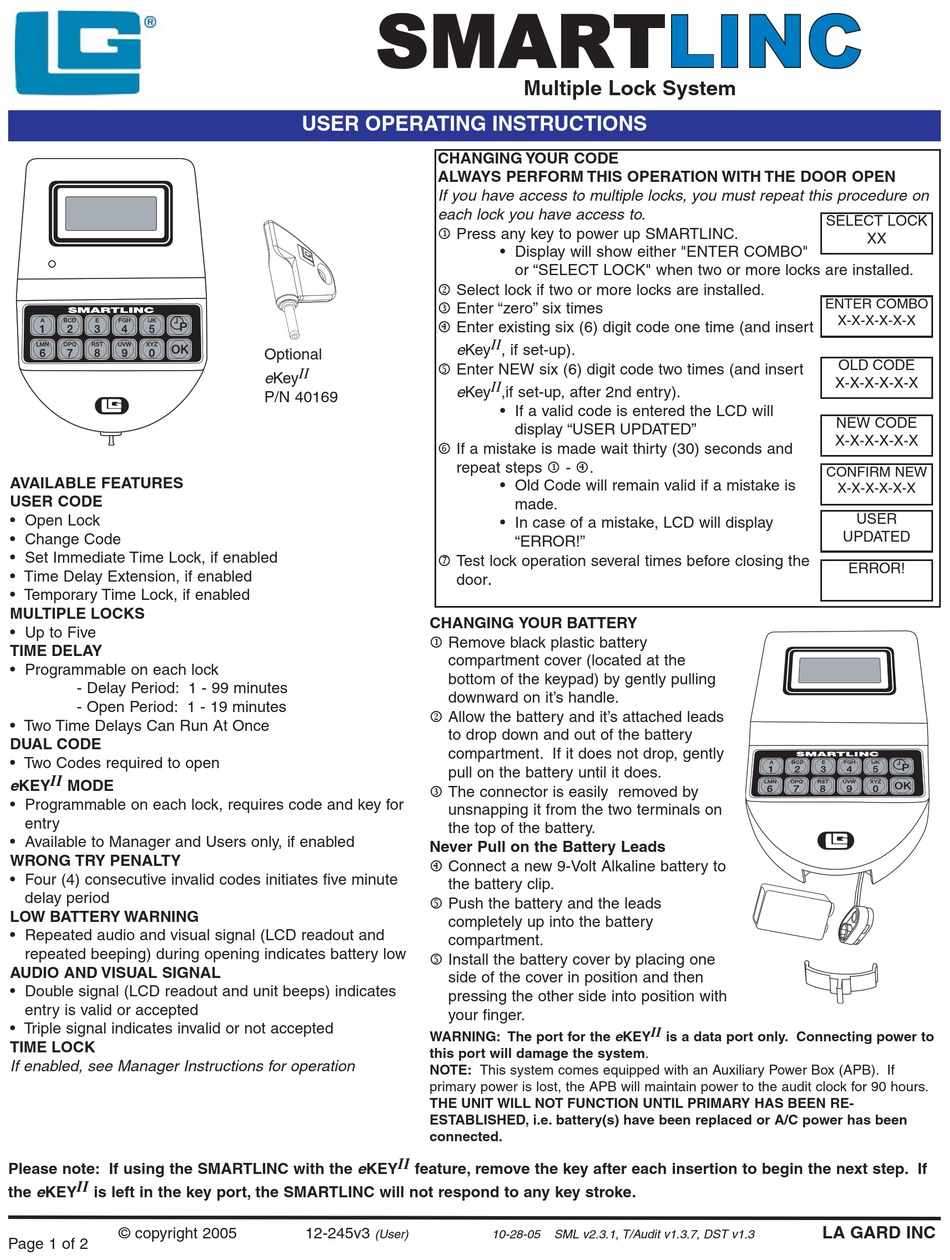

SmartLinc 40169 User Operating Instructions

AVAILABLE FEATURES

USER CODE

• Open Lock
• Change Code
• Set Immediate Time Lock, if enabled
• Time Delay Extension, if enabled
• Temporary Time Lock, if enabled

MULTIPLE LOCKS

• Up to Five

TIME DELAY

• Programmable on each lock
- Delay Period: 1 - 99 minutes
- Open Period: 1 - 19 minutes
• Two Time Delays Can Run At Once

DUAL CODE

• Two Codes required to open
e KEY II MODE
• Programmable on each lock, requires code and key for
entry
• Available to Manager and Users only, if enabled

WRONG TRY PENALTY

• Four (4) consecutive invalid codes initiates five minute
delay period

LOW BATTERY WARNING

• Repeated audio and visual signal (LCD readout and
repeated beeping) during opening indicates battery low

AUDIO AND VISUAL SIGNAL

• Double signal (LCD readout and unit beeps) indicates
entry is valid or accepted
• Triple signal indicates invalid or not accepted

TIME LOCK

If enabled, see Manager Instructions for operation
Please note: If using the SMARTLINC with the e KEY II feature, remove the key after each insertion to begin the next step. If
the e KEY II is left in the key port, the SMARTLINC will not respond to any key stroke.
© copyright 2005
Page 1 of 2
USER OPERATING INSTRUCTIONS

CHANGING YOUR CODE

ALWAYS PERFORM THIS OPERATION WITH THE DOOR OPEN
If you have access to multiple locks, you must repeat this procedure on
each lock you have access to.
1 Press any key to power up SMARTLINC.
2 Select lock if two or more locks are installed.
3 Enter "zero" six times
4 Enter existing six (6) digit code one time (and insert
Optional
5 Enter NEW six (6) digit code two times (and insert
e Key II
P/N 40169
6 If a mistake is made wait thirty (30) seconds and
7 Test lock operation several times before closing the

CHANGING YOUR BATTERY

1 Remove black plastic battery
2 Allow the battery and it's attached leads
3 The connector is easily removed by
Never Pull on the Battery Leads
4 Connect a new 9-Volt Alkaline battery to
5 Push the battery and the leads
5 Install the battery cover by placing one
WARNING: The port for the e KEY II is a data port only. Connecting power to
this port will damage the system.
NOTE: This system comes equipped with an Auxiliary Power Box (APB). If
primary power is lost, the APB will maintain power to the audit clock for 90 hours.
THE UNIT WILL NOT FUNCTION UNTIL PRIMARY HAS BEEN RE-
ESTABLISHED, i.e. battery(s) have been replaced or A/C power has been
connected.
12-245v3
(User)
Multiple Lock System
• Display will show either "ENTER COMBO"
or "SELECT LOCK" when two or more locks are installed.
e Key II , if set-up).
e Key II ,if set-up, after 2nd entry).
• If a valid code is entered the LCD will
display "USER UPDATED"
repeat steps 1 - 4.
• Old Code will remain valid if a mistake is
made.
• In case of a mistake, LCD will display
"ERROR!"
.
door
compartment cover (located at the
bottom of the keypad) by gently pulling
downward on it's handle.
to drop down and out of the battery
compartment. If it does not drop, gently
pull on the battery until it does.
unsnapping it from the two terminals on
the top of the battery.
the battery clip.
completely up into the battery
compartment.
side of the cover in position and then
pressing the other side into position with
your finger.
10-28-05 SML v2.3.1, T/Audit v1.3.7, DST v1.3
SELECT LOCK
XX
ENTER COMBO
X-X-X-X-X-X
OLD CODE
X-X-X-X-X-X
NEW CODE
X-X-X-X-X-X
CONFIRM NEW
X-X-X-X-X-X
USER
UPDATED
ERROR!
LA GARD INC
