Carlisle DEVILBISS HAF-505 Service Manual

SERVICE MANUAL
EN
1
(not shown)
2
3

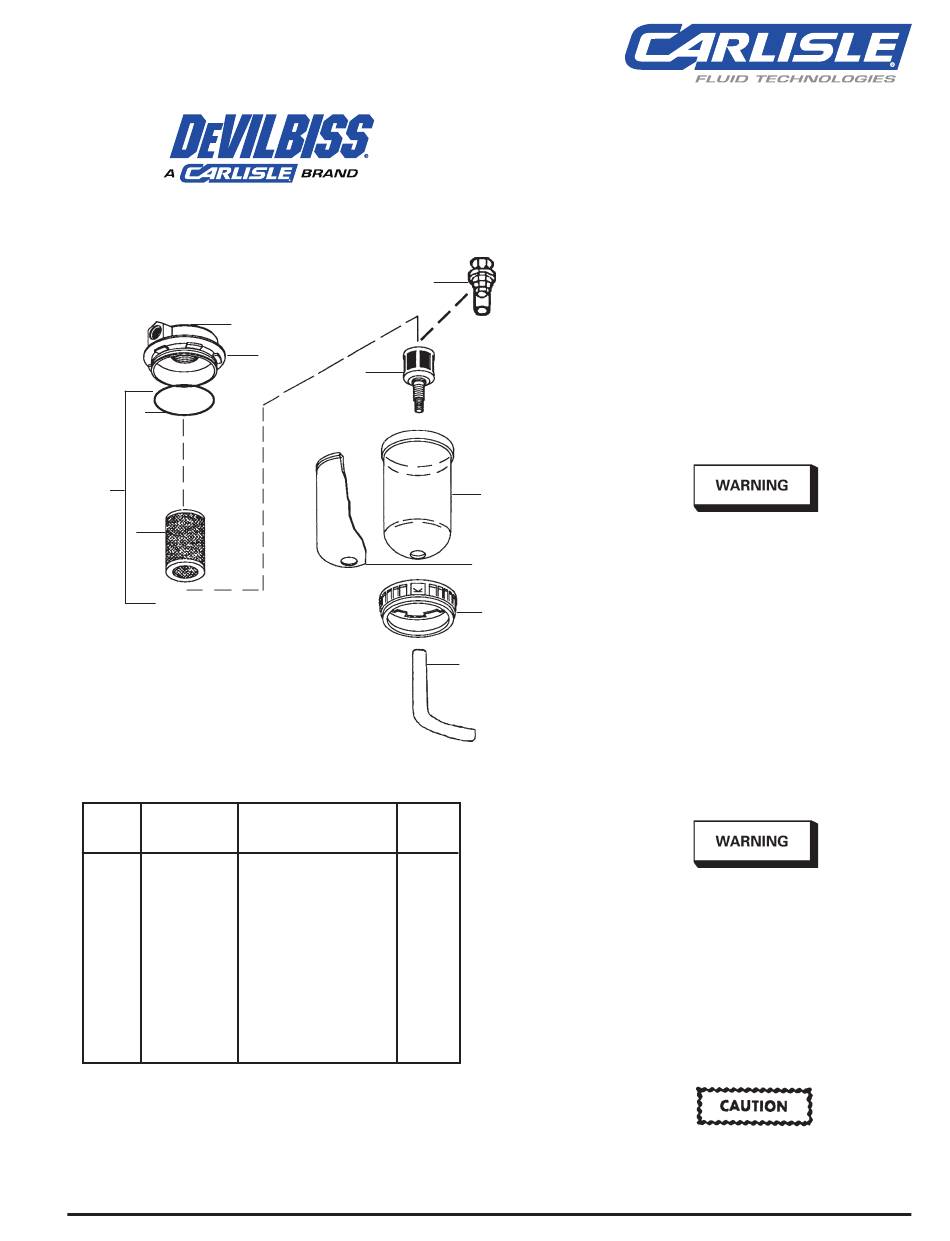

Figure 1 HAF-505 55 CFM Air Filter
PARTS LIST
Ref No. Replacement
No. Part No. Description
1 HAF-404 Filter Change Indicator
1A --- Cover
2 --- O-Ring
3 HAF-28 Filter and O-Ring Kit
4 HAF-18 Automatic Drain
5 HAF-8 Plastic Bowl
6 HAF-19 Metal Bowl Guard
7 HAF-409 Clamp Ring
8 --- 1/2 x 3/8 Vinyl Tubing 6'
9 HAF-11 Manual Drain (Optional)
DESCRIPTION
The HAF-505, 55 CFM filter is designed to remove
dirt, pipe scale and liquid aerosol. It includes
a 0.01 micron filter element and automatic
mechanical drain.
SB-6-152-R3 (10/2020)
HAF-505
55 CFM COALESCING FILTER
(Optional)
1A
4
Ind.
Parts
Required
1
(not shown)
1
1
1
1
(Standard)
1
1
1
1
1
SPECIFICATIONS
Air Filter:
Air Inlet
Air Outlet
Air Flow Capacity
Maximum Inlet Pressure
Maximum Operating Pressure
Maximum Temperature
Filter – Particulates
Filter – Oil Content
Water Vapor Removal
5
6
Except as otherwise specified by the
manufacturer, this product is specifi-
cally designed for compressed air ser-
7
v i c e a n d u s e w i t h a n y o t h e r f l u i d
(liquid or gas) is a misapplication. For example,
use with or injection of certain hazardous gases
8
in the system (such as oxygen or liquid petro-
leum gas) could be harmful to the unit or result
in a combustible condition that may cause
fire or explosion. Manufacturer's warranties
are void in the event of misapplication and
manufacturer assumes no responsibility for
any resulting loss.
INSTALLATION
Risk of injury. Do not place unit in service
without metal bowl guard installed. Filter
units are sold only with metal bowl guards. To
minimize the danger of flying fragments in the
event of plastic bowl failure, guard must not
be removed. If the unit is in service without
the metal bowl guard installed, manufacturer's
warranties are void and the manufacturer
assumes no responsibility for any resulting
loss. If unit has been in service and does not
have a metal bowl guard, order one and install
before placing back in service.
Certain solvents, paints and chemicals may
attack plastic bowl and can cause bowl failure.
Do not use near these materials.
1 / 4
1/2" NPT(F)
1/2" NPT(F)
55 CFM
150 PSIG (10.3 Bar)
150 PSIG (10.3 Bar)
150° F (65.6°C)
0.01 Micron
0.01 mg/m³ max.
-94°F Dew Point
Risk of personal injury.
Risk of property damage.
www.carlisleft.com
