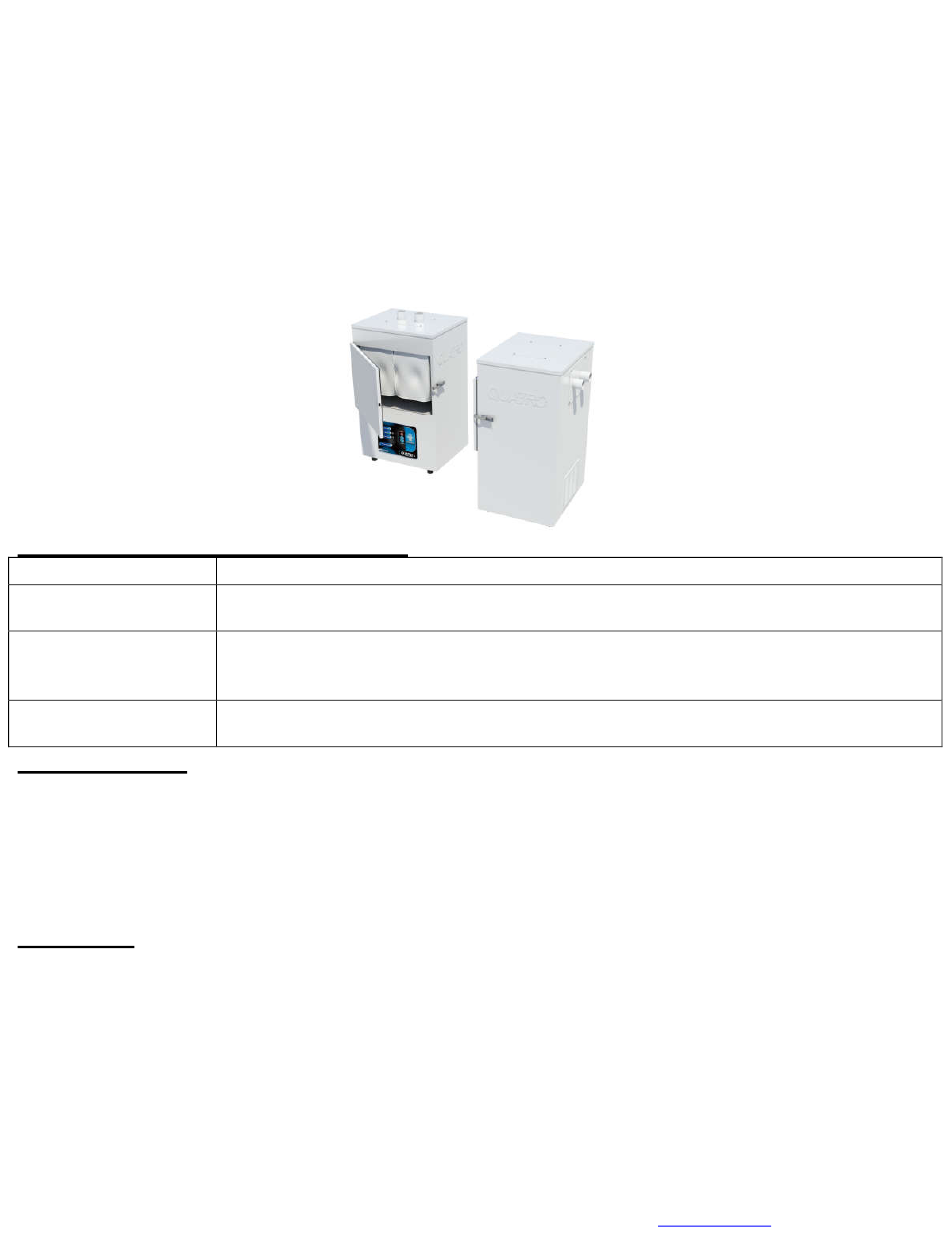

Operations & Maintenance Manual
MedEVAC MultiPure
SHIPPED WITH THE UNIT (LOOSE):
Model
CollectALL
MedEVAC Multipure
PowerStation (PS2)
INSTALLATION
1) Open filter door, remove plastic around HEPA filter (and Odor Filter if applicable)
2) Ensure filter bags are properly installed, fit into 2 tubes beneath the top of filter section
3) INSTALL CASTERS (WHEELS) IF THIS OPTION WAS PURCHASED (#AA037)
4) Plug Power Cordset to a grounded 120-volt wall outlet
4) Connect to applicable work-station/milling machine
START-UP
1) Press red POWER button on control panel to ensure unit STARTS
"System ON" LED illuminates, indicates unit is operating
2) Press POWER button again to switch unit OFF
3) You are now ready to operate
4) Connect remote hand-switch (PN AA375 or foot-pedal (PN AA175) to the remote
socket on the control panel to start unit remotely
If: "System ON" LED is OFF (indicates unit NOT operating)
If: "Remote/Standby" LED flashes (indicating unit is in WAITING MODE)
If: "Remote/Standby" LED ON (indicating unit is OPERATING)
---------------------------------------------------------
30 Hymus Boulevard, Montreal, Quebec, H9R 1C9
CollectALL
PowerStation PS2
Ships with:
Open Filter Door: PowerCord, air inlet plate, clamps, Remote Hand-Switch
Outside the unit 12-ft long, 3" diameter hose
Open Filter Door: PowerCord, air inlet plate, Remote Hand-Switch, (3) Rubber
hose cuffs (2 for 1.5" accessory, 1 for 2.5" accessory)
Outside the unit: 18-ft hose
Open Filter Door: PowerCord, air inlet plate, milling Auto-Start Cable
Outside the unit: 6-ft long hose
Engineers Of Clean Air
Tel.: (514) 630-4444 Fax: (514) 630-4454 website:
--------------------------------------------------------
www.quatroair.com
QUATRO
Air Technologies Inc.
info@quatroair.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the CollectALL MedEVAC MultiPure PowerStation PS2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Quatro CollectALL MedEVAC MultiPure PowerStation PS2

  • Page 1 QUATRO Air Technologies Inc. Operations & Maintenance Manual CollectALL MedEVAC MultiPure PowerStation PS2 SHIPPED WITH THE UNIT (LOOSE): Model Ships with: CollectALL Open Filter Door: PowerCord, air inlet plate, clamps, Remote Hand-Switch Outside the unit 12-ft long, 3” diameter hose...
  • Page 2 QUATRO Air Technologies Inc. SAFETY PRECAUTIONS Carefully read instructions in this manual before operation (keep manual as it contains information for proper operation and maintenance). Keep all fastening hardware tight to ensure that the unit is in safe working condition. Familiarise yourself with the way in which the special filter is removed, installed, and serviced.
  • Page 3 QUATRO Air Technologies Inc. Filter Bags (AG259 or AG149 depending on your application) located behind front access door Separation grille: Must be placed right below FILTER BAGS, so the filter below the Filter Bags does not clog Odor Filter (Not Pictured) located below Filter Bags (above HEPA Filter). Part number varies by application.

  • Page 4: Blower Maintenance

    QUATRO Air Technologies Inc. Motor support brackets 1- Using a ¼” socket, unscrew the 4 bolts holding down the motor (4) screws holding motor to each bracket 2- Remove the motor WITH motor support bracket from the unit 3- Separate motor from motor support bracket by unscrewing 4 screws...
  • Page 5 QUATRO Air Technologies Inc. Replacement Instructions ALLOW MOTOR(S) TO COOL FOR 45 MINS BEFORE SERVICING 1- Unplug power cord and open motor access panel. 2- Disconnect wires, cut zip ties. 3- Remove the retaining nuts & lock washer holding the motor assemblies.

  • Page 6: Warranty

    QUATRO claims no warranty as to merchantability or as to the fitness of the merchandise for any particular use and shall not be liable for any loss or damage. No person, firm or corporation is authorised to assume for QUATRO any other liability in connection with the sale of these goods.
  • Page 7 Standby Signal Of Equipment LED 5 Fading Shutdown Delay Quatro System Continues To Run For A Short Period To Remove All Debris (L5) IN-OUT From Work Area Flashing Unit Is In Standby Waiting For Remote Switch To Close (Turn On) OR To Receiving Remote...
  • Page 8 QUATRO Air Technologies Inc. Light Diagnostics Table G16.13 or G17.13 and higher Light Led1 Led2 Led3 Led4 Led5 Audible Condition Action System Service Service Filter Remote/ Alert Motor Filter Clean Standby System SOLID None Unit is operating using POWER Remote or mc2 has a shutdown delay of approximately 5-10...
