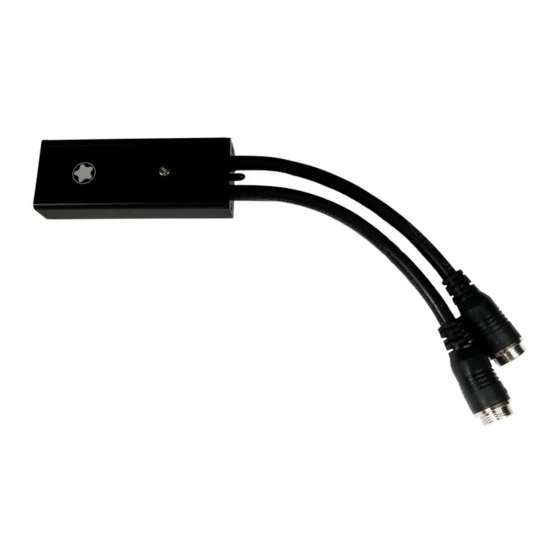

Lumen Light for Aquascaping Wifi App controller (WF-C) User manual ApplicationAA Contents Technical information Introduction, features and installation of the LED controller Safety instructions About the application Reference settings and preset modes... -
Page 2: Technical Information
Technical information DC 12V DC 24V Expand Expand Indicator - Distributor: Lumen Aquatech DOO connection connection White flash slowly - Type: FullColor Wifi (WRGB ) controller Waitnig for pairing - Reference setting: WRGB 100% White constant - Input voltage 24 Volt DC... - Page 3 Pairing (Router is required and must be connected to the Internet. Press and hold the buttonon the device for 3 seconds to restore the factory settings. The light should blink white when the device is ready for pairing and the device you want to add will appear in the application.
-
Page 4: Safety Instructions
The device can only be connected to the power supply specified by Lumen Aquatech DOO! Failure caused by supplying the device with incorrect voltage is not a warranty defect! - Covering the device is flammable, thus strictly forbidden! When installing such products, make sure that the unit is well ventilated. - Page 5 There are two modes, Auto and Manual mode with 4 channels to make varies lighting settings. (The device's auto settings can be viewed on our Lumen Aquatech youtube channel) Modes Effects set Time axis, drag to adjust time Intensity line...
- Page 6 By adjusting the effects, you can set acclimatization, lightning, lunar, and cloudy weather, to simulate the natural lighting for the aquarium life. Modes Acclimation Lunar Cloudy Lightning With acclimatization, we can easily set a daily period. This is a simplified form of the automatic function. Ramp time Set start time Set end time...
- Page 7 With the lunar effect, you can adjust the period and intensity of the night light. From the 4 channels, you can choose the color that best suits us for night lighting. Intensity level Set channel Set start time Set end time Channels intensity With the lightning effect, you can adjust the period, frequency and intensity of an artificial lightning.
- Page 8 With the cloud effect we can adjust the period and intensity of an artificial overturning. Intensity level Set start time Set end time Intensity of clouding Set clouding intensity Speed of clouding You can set, switch and turn on and off the expand output connectors . Expand connection : 12 V Expand connection: 24 V...
- Page 9 Can set the period or intensity of the 12V expand output connector Period Timers ON/OFF Set start time Set end time Intensity level Can set the period or intensity of the 24V expand output connector Period Timers ON/OFF Set start time Set end time Intensity level...
-
Page 10: Reference Settings And Preset Modes
The application settings include: (The pairing of the two devices can be viewed on our Lumen Aquatech youtube channel) System settings Helps Time format Enable pairing Set signal Reference settings and preset modes Reference setting based on which LRW1 color mixing LRW2 color mixing LRW165 -... - Page 11 LRW3 color mixing LRW4 color mixing LRW5 color mixing RED-WHITE TONE RED-BLUE TONE GREEN-BLUE TONE WBGR CH: 80%,35%,25%,100% WBGR CH: 80%,55%,30%,100% WBGR CH: 80%,60%,40%,60% LRW6 color mixing LRW7 color mixing LRW8 color mixing BLUE TONE NATURAL COLD NATURAL WHITE WBGR CH: 80%,75%,40%,80% WBGR CH: 80%,80%,75%,100% WBGR CH: 80%,35%,25%,70% ** All settings here are guidelines only, everyone can customize them to their own taste.
