Quick installation Guide
Thor Fiber F-RSD-XX RS-232/485/422 Over Fiber
Thank you for purchasing the Thor fiber optic Transmitter / receiver system.
Thank you for purchasing the Thor fiber optic
This product is a multi-purpose asynchronous fiber optic device that can extend
purpose asynchronous fiber optic device that can extend
RS-232/485/422 serial control over a single fiber optic line. This greatly increases
232/485/422 serial control over a single fiber optic line. This greatly increases
the efficiency in transmission function while simultaneously protecting transmission integrity
the efficiency in transmission function while simultaneously protecting transmission integrity
the efficiency in transmission function while simultaneously protecting transmission integrity
from common issues such as weather, surge, or electromagnetic interference.
from common issues such as weather, surge, or electromagnetic interference.
Quick start guide:
There are two devices in this package labeled either "A", or "B"(The A or B designation can be
There are two devices in this package
found on the bottom label of the devices under "Product Type:"
found on the bottom label of the devices under "Product Type:"
Each device will also include a 5v dc power adapter (please only use the manufacturer's
Each device will also include a 5v dc power adapter (please only use the
adapters as any higher voltages may result in damage to the unit).
1) Connect power adapter to device "A", and repeat the process for device "B".
1) Connect power adapter to device "A", and repeat the process for device "B".
INSERT POWER
Status lights:
Each unit has 2 status indicator LEDs that are labeled PWR and FIBER.
Each unit has 2 status indicator LEDs that are labeled PWR and FIBER.
When sufficient power is supplied to each device the PWR indicator LED
power is supplied to each device the PWR indicator LED
will light up with a solid green.
232/485/422 Over Fiber
ltages may result in damage to the unit).

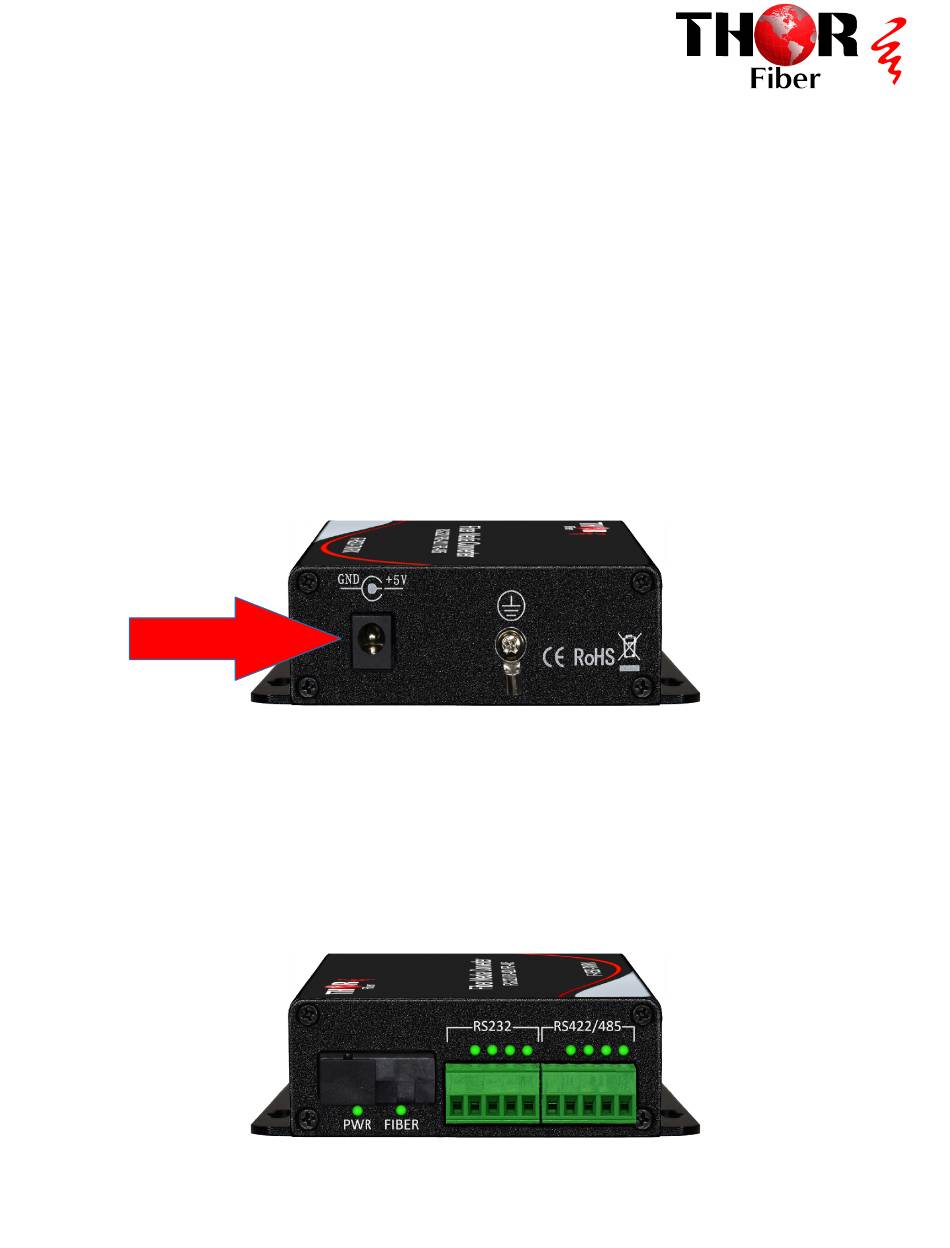

back view of the unit
Front view of the unit
B"(The A or B designation can be
A
B-
F-RSD-
-TX/RX | F-RSD
RSD-
manufacturer's supplied
).
TX/RX
Advertisement
Table of Contents
Related Manuals for Thor Fiber F-RSD Series
Summary of Contents for Thor Fiber F-RSD Series
- Page 1 232/485/422 Over Fiber Thank you for purchasing the Thor fiber optic Thank you for purchasing the Thor fiber optic Transmitter / receiver system. This product is a multi-purpose asynchronous fiber optic device that can extend purpose asynchronous fiber optic device that can extend RS-232/485/422 serial control over a single fiber optic line.
- Page 2 Before the fiber port on either device is connected the FIBER Before the fiber port on either device is connected the FIBER status indicator light will blink on and off. This is indicating that status indicator light will blink on and off. This is indicating that the device is ready and it is waiting for communication with the other the device is ready and it is waiting for communication with the other device.
