Puffer tanks AR-S (SPECIAL
FOR FALSE CEILINGS)
Primary cooling systems and
Installation instructions,
use and maintenance
heat pumps
PLENTZIA BIDEA, 3 BILLELA AUZOTEGIA
48100 MUNGIA- SPAIN
APDO CORREOS, 21
C.I.F.: A-48045199
Tlf.: +34 94 674 04 00
www.ibaiondo.com
Advertisement
Table of Contents
Summary of Contents for IBAIONDO AR-S

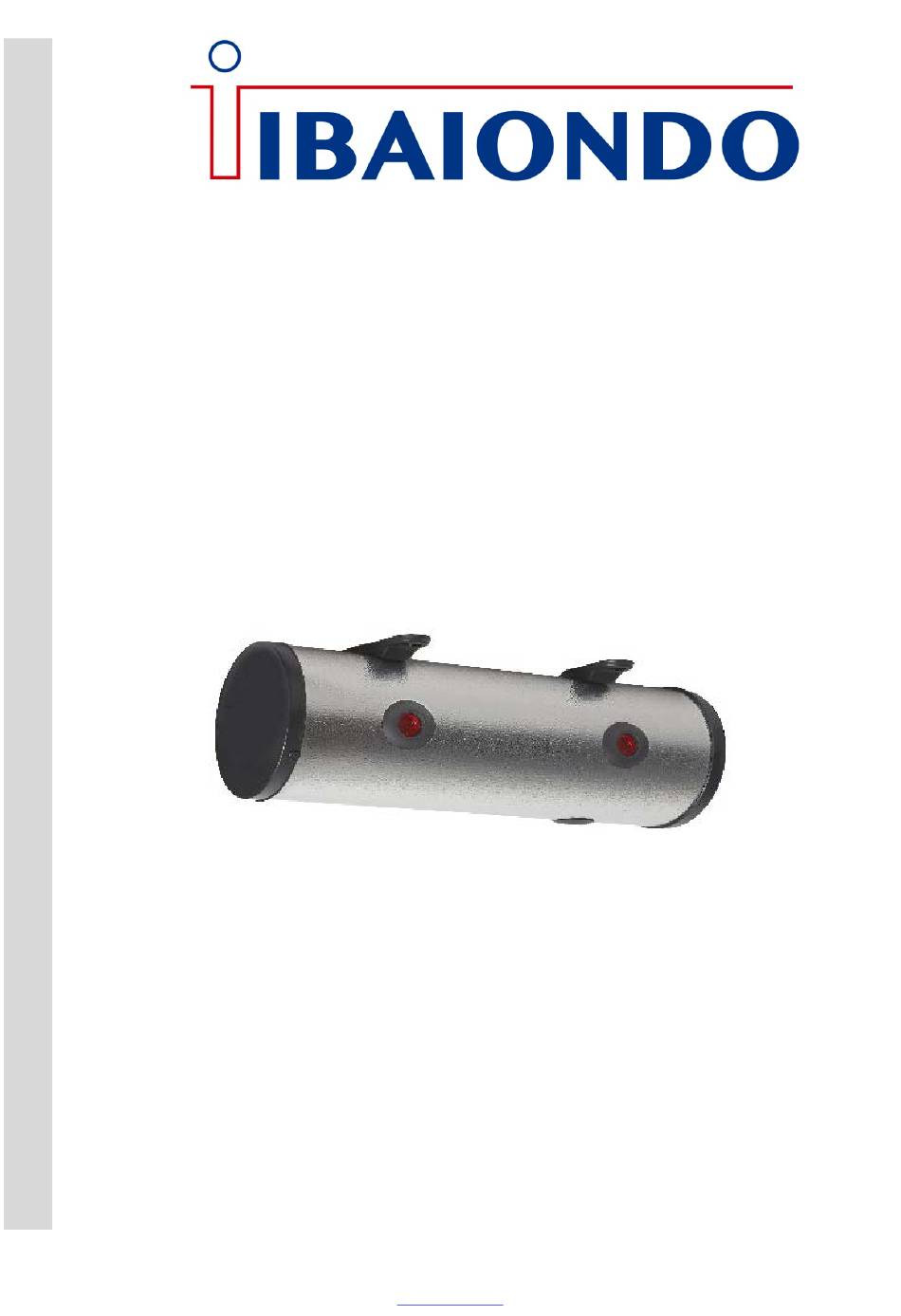

- Page 1 Puffer tanks AR-S (SPECIAL FOR FALSE CEILINGS) Primary cooling systems and heat pumps Installation instructions, use and maintenance PLENTZIA BIDEA, 3 BILLELA AUZOTEGIA 48100 MUNGIA- SPAIN APDO CORREOS, 21 C.I.F.: A-48045199 Tlf.: +34 94 674 04 00 www.ibaiondo.com...

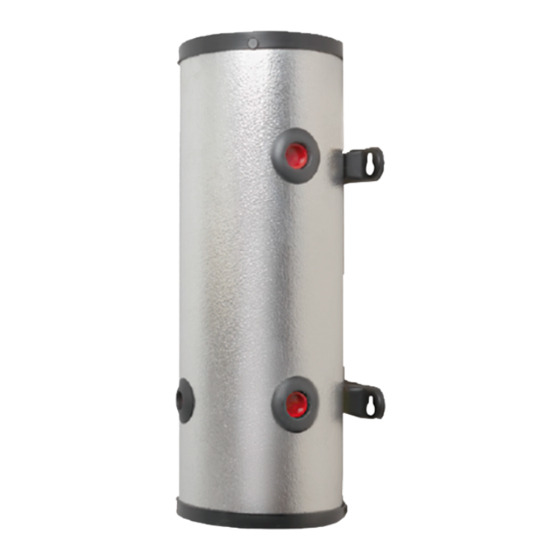

- Page 2 They come in different configurations. The accumulators of the AR-S range are specially designed for installation in false ceilings. All models comply with the European Pressure Equipment Directive 2014/68/EU (Art. 4.3).
- Page 3 EN 12897 Heat transfer to water - Specified for indirectly heated water heaters and pressure storage tanks (closed). EN 12975 Solar thermal installation and its components. 6. Installation They shall be installed in a weatherproof enclosure having the necessary access dimensions to facilitate inspection of the accumulator.
- Page 4 It is recommended to install air vents to prevent air accumulation. The installation of automatic filling valves in closed primary heating circuits is not recommended, as it may lead to re-oxygenation in the system. In the case of combined systems, potential oxygen supply parts of the system must be isolated from the primary circuit or materials must be used to prevent oxygen supply.
- Page 5 Verify temperatures. Declaration of Conformity INDUSTRIAS IBAIONDO, S.A., with VAT number A48045199 and address at Plentzia bidea, nº3, 48100 Munguia (Vizcaya), declares that the models contained in this document have been designed and manufactured in accordance with good technical practice, in accordance with article 4.3 of European...
- Page 6 AR-S SPECIAL PUFFER TANKS FOR FALSE CEILINGS GENERAL CHARACTERISTICS AND DIMENSIONS Model 20 AR-S 30 AR-S 40 AR-S Model code 30002161 30003161 30004161 Nominal capacity (Litres) Maximum working pressure (Bar) Temperature (ºC) -10 / +100 -10 /+100 -10 / +100...
- Page 7 The warranty period starts from the date of sale of the product by our customer, with a maximum limit of 12 months, counting from the date of delivery note from IBAIONDO. For this purpose, the invoice or sales receipt must be provided, showing the identification data of the product claimed (description and serial number).
