Summary of Contents for AUDAC SP202

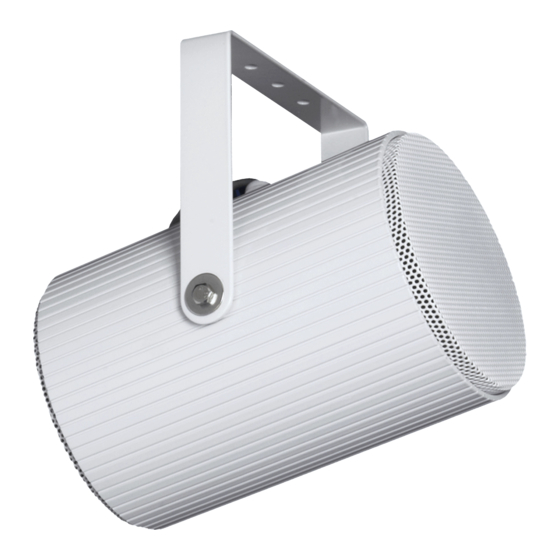

- Page 1 Sound Projector SP202 AUDAC PROFESSIONAL AUDIO EQUIPMENT Bidirectional Sound Projector SP202 Installation Guide...
- Page 2 Introduction The AUDAC SP202 is a Bidirectional and humidity proof sound projector with a high efficiency. It is suitable for speech and music and ensures a powerful and high quality sound reproduction. It features two 5” full range speakers and a built-in 100 Volt line transformer with four different power taps, to be used in large 100V PA applications.
- Page 3 Connections To avoid electric shocks during installation, always switch of the amplifier power when connecting loudspeakers. A 4 core connection cable comes out of the cable gland, on top of the loudspeaker. By connecting the appropriate cable cores, the desires power taps for the loudspeaker can be selected, to be used in 100V public address applications.
- Page 4 Technical Specifications Projector way Bidirectional Max Power 2 x 20 Watt RMS Power 2 x 10 Watt Line Transformer Power taps 20 Watt (2 x 10 Watt) 500 Ohm 10 Watt (2 x 5 Watt) 1000 Ohm 5 Watt (2 x 2.5 Watt) 2000 Ohm Line Voltage 100 V...
