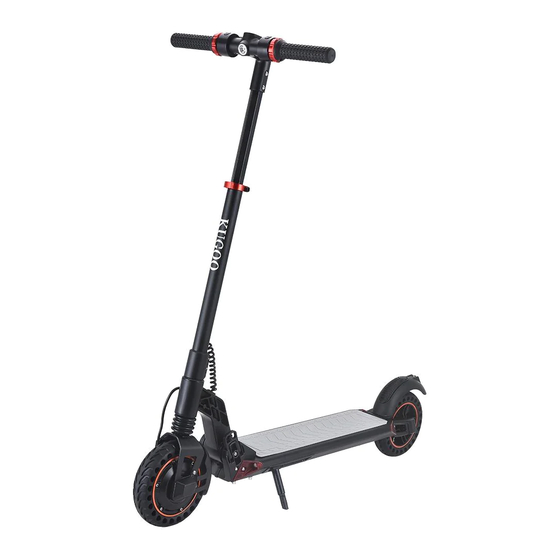

Thank you for purchasing KUOO KIRIN S1 Electric bicycle
In order to ensure safety of you and others, please read the instruction before you use it.
There might be slightly different between the product and the picture
Catalogue
1
Basic information
1.1 Important information
1.2 Safety warning
1.3 Scrap disposition
1.4 Product standard
2 Product introduction
2.1 Container loading list
2.2 Diagram of KUOO KIRIN S1
2.3 Button information
2.4 Display information
Advertisement
Related Manuals for KUGOO KIRIN S1
Summary of Contents for KUGOO KIRIN S1
- Page 1 Thank you for purchasing KUOO KIRIN S1 Electric bicycle In order to ensure safety of you and others, please read the instruction before you use it. There might be slightly different between the product and the picture Catalogue Basic information 1.1 Important information...
-
Page 2: Chapter 1 Basic Information
6.3 Transport 7 maintaining Chapter 1 Basic information This instruction will tell you the function，usage and maintaining of the KUOO KIRIN S1. Please prepare your purchase information before contacting the customer service ， because the information is needed in this process. - Page 3 If there is any damage，please don t use it Use the right charger look after your kid if they uses the product Only use the components from our company Be careful with the electricity. No water or liquid connected Use a dry cloth to remove dust. Do not spray liquid onto product. Do not immerse the product, any of its components or accessories in water Do not use on the stairs The bicycle could only take one person...
- Page 4 2.1 Packing List S1 bicycle x1 Internal hexagonal wrench x1 Charger x1 Instruction x1 Screw x4 2.2 Diagram of KUOO KIRIN S1 1. handle 11.screen 2.light 12 brake 3. shock absorption 13 power button 4. front mudguard 14.speed up finger 5.front fork...
- Page 5 Indicates the rest of the power Indicates the speed. The readings are in km/h and mp/h ：Indicates the speed mode. Mode 1- white; Mode 2- orange; Pattern 3- red. ：Indicates when the controller is at high temperature. ：Indicates the status of the application, which is open/closed. ：Indicates the status of the headlights, i.e.
- Page 6 3.3 Fold and unfold the bicycle 1.pull down the folding latch.Then push the stem down the pedal. 2.you have to make sure entirely fold or unfold 3 if you want to open it,Pull the stem up off the pedal, you will hear the sound, It means it's fully expanded.Like the picture below...
- Page 7 4. Battery charge Please charge the scooter before use. 4.1 How to charge 1.turn off the power when you start to charge 2 find the socket 3.use the right charger 4.when it is charging the light will be red 5.Light will turn to green when charging completed. If it is the first charge, please charge the scooter for at least 4 hours before use.
- Page 8 Charging time 4-5hours voltage Capacity Weight 1.6KG Size 340 * 75 * 42mm operating -10°C to 40°C temperature Charging 5°C to 45°C temperature storage -20°C 至 50°C temperature 216Wh Protection Overcharge, overdischarge, overheat automatically shut down 5 Usage Before riding S1, please read the following information. You have to wear the helmet or other protective clothing Only 100Kg are allowed Obey the local law...
- Page 9 Put your other foot on the ground, push it back and start sliding.Use a handle to control. Press the speed dial button to start riding. If you want to stop, release the acceleration dial, then use the brake dial and gradually slow down to a stop.Be very careful when you get off.
- Page 10 6.2 Maintaining To store S1, please follow the below information. Please charge it before you store it Charge it every 3 month Cover S1 to prevent dust from entering.Do not store it in a dusty environment, which may cause damage. Don’t put it in unstable temperature, water or moisture can cause damage to batteries and electrical circuits.
- Page 11 7 maintaining Your S1electric scooter is warranted to the original owner for one year from the date of purchased against defects in material and workmanship under normal use and service. This warranty gives you specific legal rights, and you may have other rights, depending on local laws.This warranty lasts for one year from the date of purchase.If the product is repaired or replaced, the warranty period will not be extended.This warranty only covers technical hardware defects under normal use conditions during the warranty period.
