Summary of Contents for Populife Smart Deadbolt

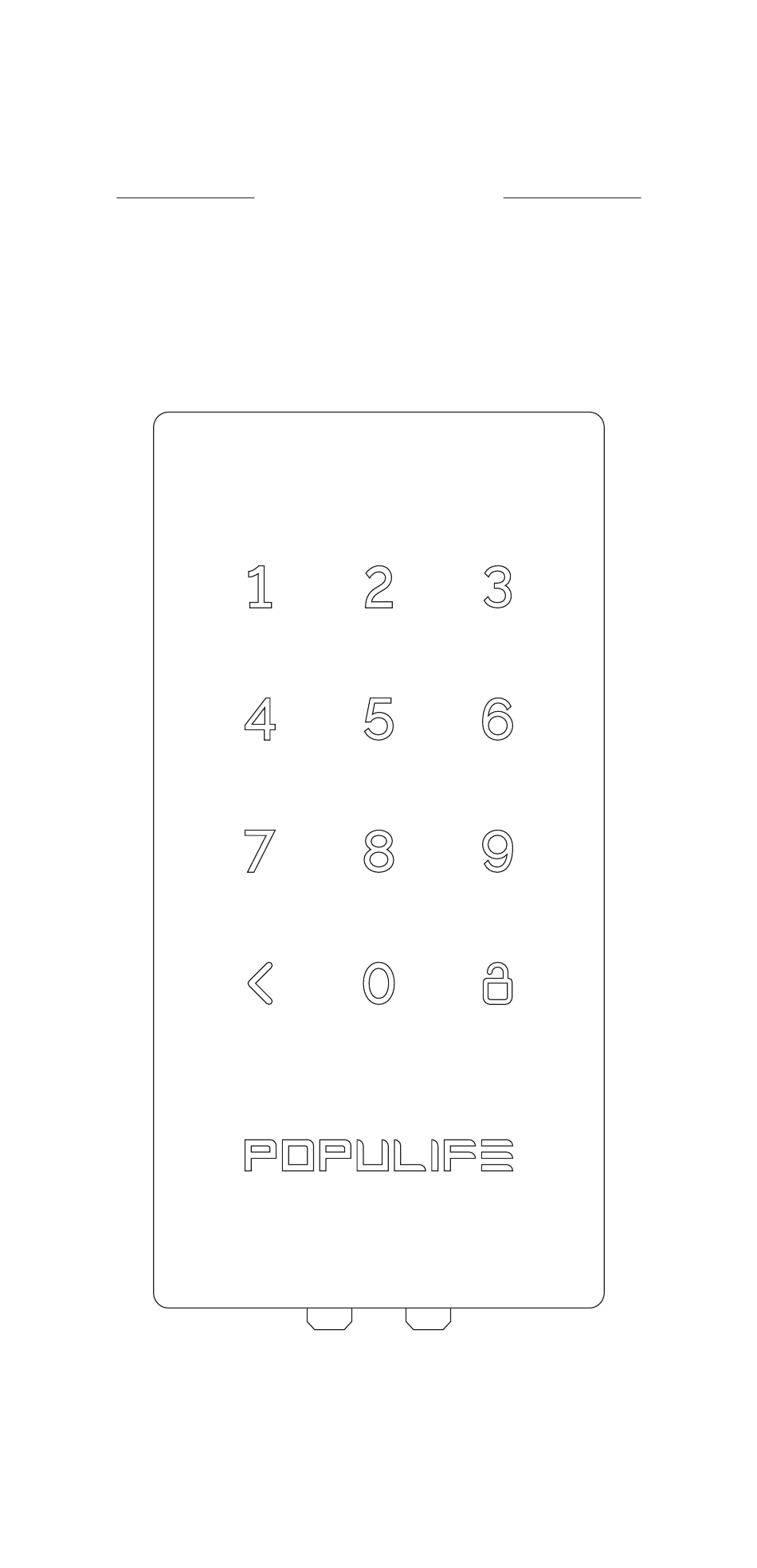

- Page 1 Populife Smart Deadbolt User Guide populife.co...
- Page 2 13/64"(5mm) x 2 Installation Template x Any question in this step? 1. Log in to Populife App, click " " on the lock page to open the customer service window and send us a message 2. Contact us by email support@populife .co...
- Page 3 Specifications Model Front body : 4½ x 2¼ x 1¾ (in) Dimensions Back body : 6½ x 2½ x 1¾ (in) Material Zinc Alloy Color Shiny + Matt black 1.34 pounds Weight BLE 4.1 Wireless Protocol 1-3/8” to 2-3/4” Door Thickness Door thickness : Type of door : wooden door, left-hand door, right-hand door...
- Page 4 If the pairing fails, please check and make sure that the batteries and the cable are OK, and restart Populife App as well as phone Bluetooth, then try again. If any help is still needed, please feel free to contact us via in-App online service "...
- Page 5 Installation 1. Preparing door 1. If you have already mounted a mechanical deadbolt, please remove and replace it with our smart Deadbolt. Attention Do not use electric drill, this might damage your lock! (Remove and replace it) 2. Check the door's opening direction: If the front body is fastened on the left, turn the toggle button to the L, and if it is fastened on the right, turn it to the R.
- Page 6 Installation 2. Exploded view...
- Page 7 4” min. Any question in this step? 1. Log in to Populife App, click " " on the lock page to open the customer service window and send us a message 2. Contact us by email support@populife .co...
- Page 8 2-3/8" 2-3/4" Any question in this step? 1. Log in to Populife App, click " " on the lock page to open the customer service window and send us a message 2. Contact us by email support@populife .co...
- Page 9 Make sure it fits through this hole in the correct position Any question in this step? 1. Log in to Populife App, click " " on the lock page to open the customer service window and send us a message...
- Page 10 6. Back body installation x 3 (or x 2) Any question in this step? 1. Log in to Populife App, click " " on the lock page to open the customer service window and send us a message 2. Contact us by email support@populife .co...
- Page 11 7. Sensor (Optional) 8. Place the rubber pad firmly Any question in this step? 1. Log in to Populife App, click " " on the lock page to open the customer service window and send us a message 2. Contact us by email support@populife .co...
- Page 12 1-3/8 " Cut along the slot Any question in this step? 1. Log in to Populife App, click " " on the lock page to open the customer service window and send us a message 2. Contact us by email support@populife .co...
- Page 13 Ensure that the wire is installed properly and securely. Any question in this step? 1. Log in to Populife App, click " " on the lock page to open the customer service window and send us a message...
- Page 14 90° and re-insert and rechek. Once the bolt is moving properly, the knob is in the right position. Any question in this step? 1. Log in to Populife App, click " " on the lock page to open the customer service window and send us a message...
- Page 15 Any question in this step? 1. Log in to Populife App, click " " on the lock page to open the customer service window and send us a message 2. Contact us by email support@populife .co...
- Page 16 Push the battery cover inwards to close. Any question in this step? 1. Log in to Populife App, click " " on the lock page to open the customer service window and send us a message 2. Contact us by email support@populife .co...
- Page 17 Multi-function Button Privacy Mode Button & Reset Button Any question in this step? 1. Log in to Populife App, click " " on the lock page to open the customer service window and send us a message 2. Contact us by email support@populife .co...
- Page 18 Read these notes before using 1. In "Factory mode" (Before App pairing), the default keypad password is 123456. Once the lock is paired in Populife App, the default password becomes invalid and you will get a new Admin password in "Lock settings" in App. If you delete the lock from the App, the password 123456 becomes valid again.
- Page 19 13 in page 22. Note When adding a lock in Populife app, ensure that the lock keypad is lit up all the time. If the lock item on app’s "Nearby Locks" page is displayed without a "+" icon which indicates the lock is not addable, please long-press the "Reset"...
- Page 20 Bluetooth keys in App. You can share Bluetooth keys by following these steps: Lock page in Populife App > Bluetooth keys > Click the button " " on top right > Send Bluetooth key > Configure and set the Bluetooth key >...
- Page 21 Security Automatic locking Please confirm that the Populife Deadbolt is nearby. 1. In the Lock page of Popuife App, click the “Settings” icon. 2. In the “Lock Settings” menu, click “Automatic locking” and make sure the “Automatic locking” is enabled.
- Page 22 “ # ” on lock keypad to unlock it. Note Once the lock is added in Populife App on phone, the original password becomes invalid and you can get the new admin password in lock settings. If you delete the lock from the App, the password 123456 becomes valid again.
- Page 23 1. You can have your own customized password by either of the following ways: 1) Modify Admin password: Keep phone near the lock >> Lock page in Populife App >> Lock settings >> Admin password >> enter your own password >> Save >> OK 2) Create a customized password: Keep phone near the lock >>...
- Page 24 More questions? Please contact us. @populifelock Instagram www.facebook.com/populife Facebook support@populife.co E-mail +1 619-797-6198 (7am - 10pm GMT+8 available) Phone www.populife.co...
