minus40 MED75HD Instruction Manual

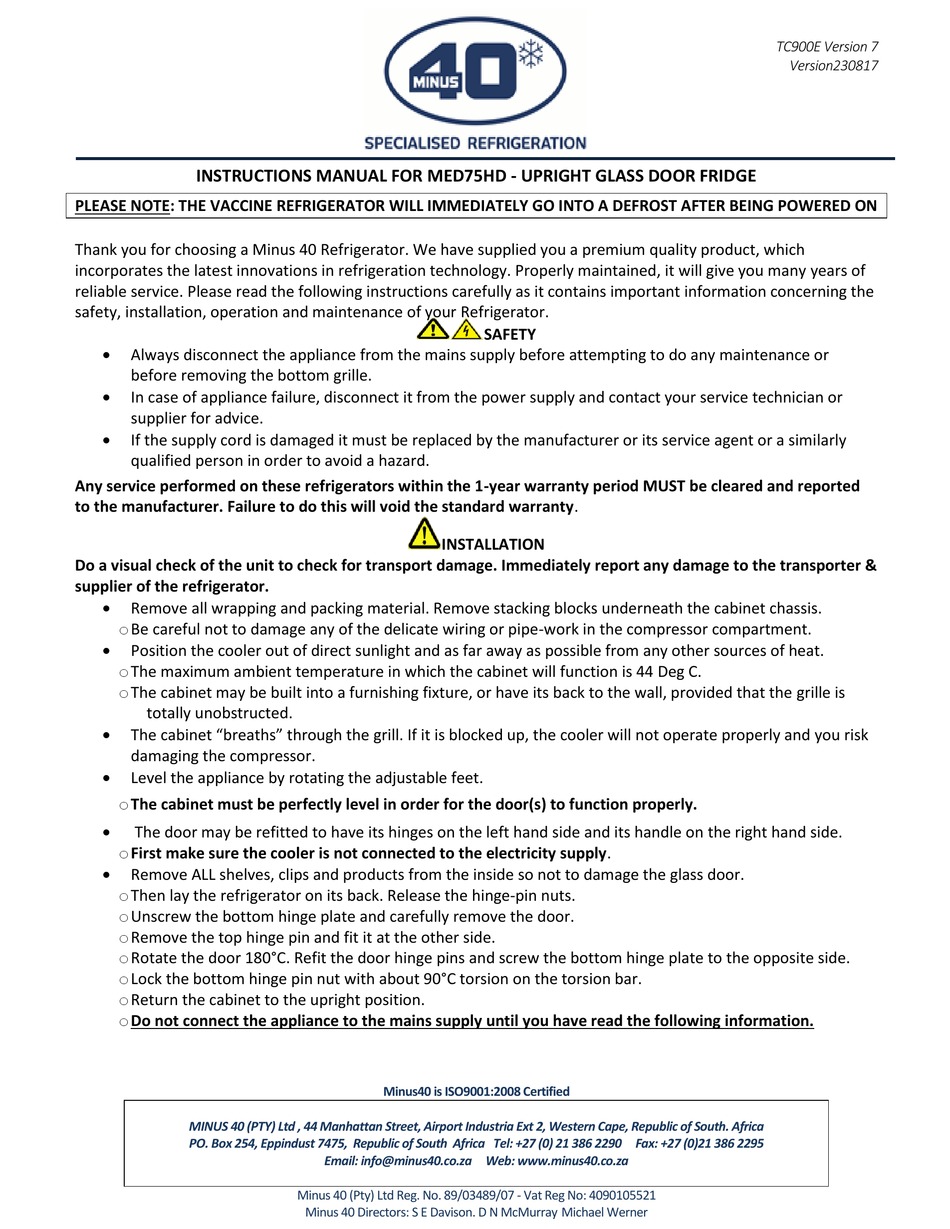

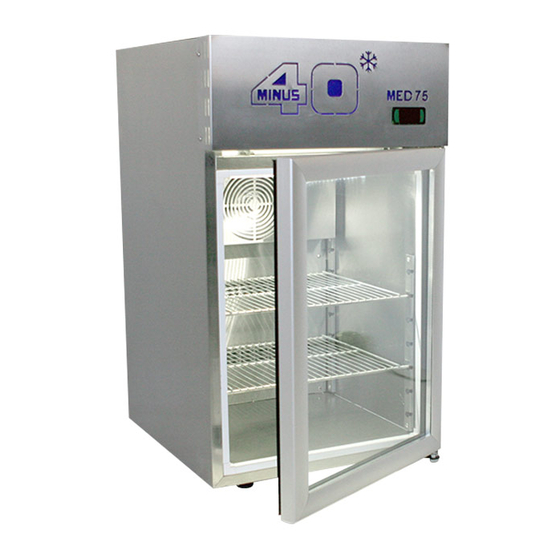

INSTRUCTIONS MANUAL FOR MED75HD - UPRIGHT GLASS DOOR FRIDGE
PLEASE NOTE: THE VACCINE REFRIGERATOR WILL IMMEDIATELY GO INTO A DEFROST AFTER BEING POWERED ON
Thank you for choosing a Minus 40 Refrigerator. We have supplied you a premium quality product, which
incorporates the latest innovations in refrigeration technology. Properly maintained, it will give you many years of
reliable service. Please read the following instructions carefully as it contains important information concerning the
safety, installation, operation and maintenance of your Refrigerator.

Always disconnect the appliance from the mains supply before attempting to do any maintenance or
before removing the bottom grille.

In case of appliance failure, disconnect it from the power supply and contact your service technician or
supplier for advice.

If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
Any service performed on these refrigerators within the 1-year warranty period MUST be cleared and reported
to the manufacturer. Failure to do this will void the standard warranty.
Do a visual check of the unit to check for transport damage. Immediately report any damage to the transporter &
supplier of the refrigerator.

Remove all wrapping and packing material. Remove stacking blocks underneath the cabinet chassis.
o Be careful not to damage any of the delicate wiring or pipe-work in the compressor compartment.

Position the cooler out of direct sunlight and as far away as possible from any other sources of heat.
o The maximum ambient temperature in which the cabinet will function is 44 Deg C.
o The cabinet may be built into a furnishing fixture, or have its back to the wall, provided that the grille is
totally unobstructed.

The cabinet "breaths" through the grill. If it is blocked up, the cooler will not operate properly and you risk
damaging the compressor.

Level the appliance by rotating the adjustable feet.
o The cabinet must be perfectly level in order for the door(s) to function properly.

The door may be refitted to have its hinges on the left hand side and its handle on the right hand side.
o First make sure the cooler is not connected to the electricity supply.

Remove ALL shelves, clips and products from the inside so not to damage the glass door.
o Then lay the refrigerator on its back. Release the hinge-pin nuts.
o Unscrew the bottom hinge plate and carefully remove the door.
o Remove the top hinge pin and fit it at the other side.
o Rotate the door 180°C. Refit the door hinge pins and screw the bottom hinge plate to the opposite side.
o Lock the bottom hinge pin nut with about 90°C torsion on the torsion bar.
o Return the cabinet to the upright position.
o Do not connect the appliance to the mains supply until you have read the following information.
MINUS 40 (PTY) Ltd , 44 Manhattan Street, Airport Industria Ext 2, Western Cape, Republic of South. Africa
PO. Box 254, Eppindust 7475, Republic of South Africa Tel: +27 (0) 21 386 2290 Fax: +27 (0)21 386 2295

INSTALLATION

Minus40 is ISO9001:2008 Certified
Email: info@minus40.co.za Web: www.minus40.co.za
Minus 40 (Pty) Ltd Reg. No. 89/03489/07 - Vat Reg No: 4090105521
Minus 40 Directors: S E Davison. D N McMurray Michael Werner

SAFETY

TC900E Version 7
Version230817
