Summary of Contents for SGS CapHeat

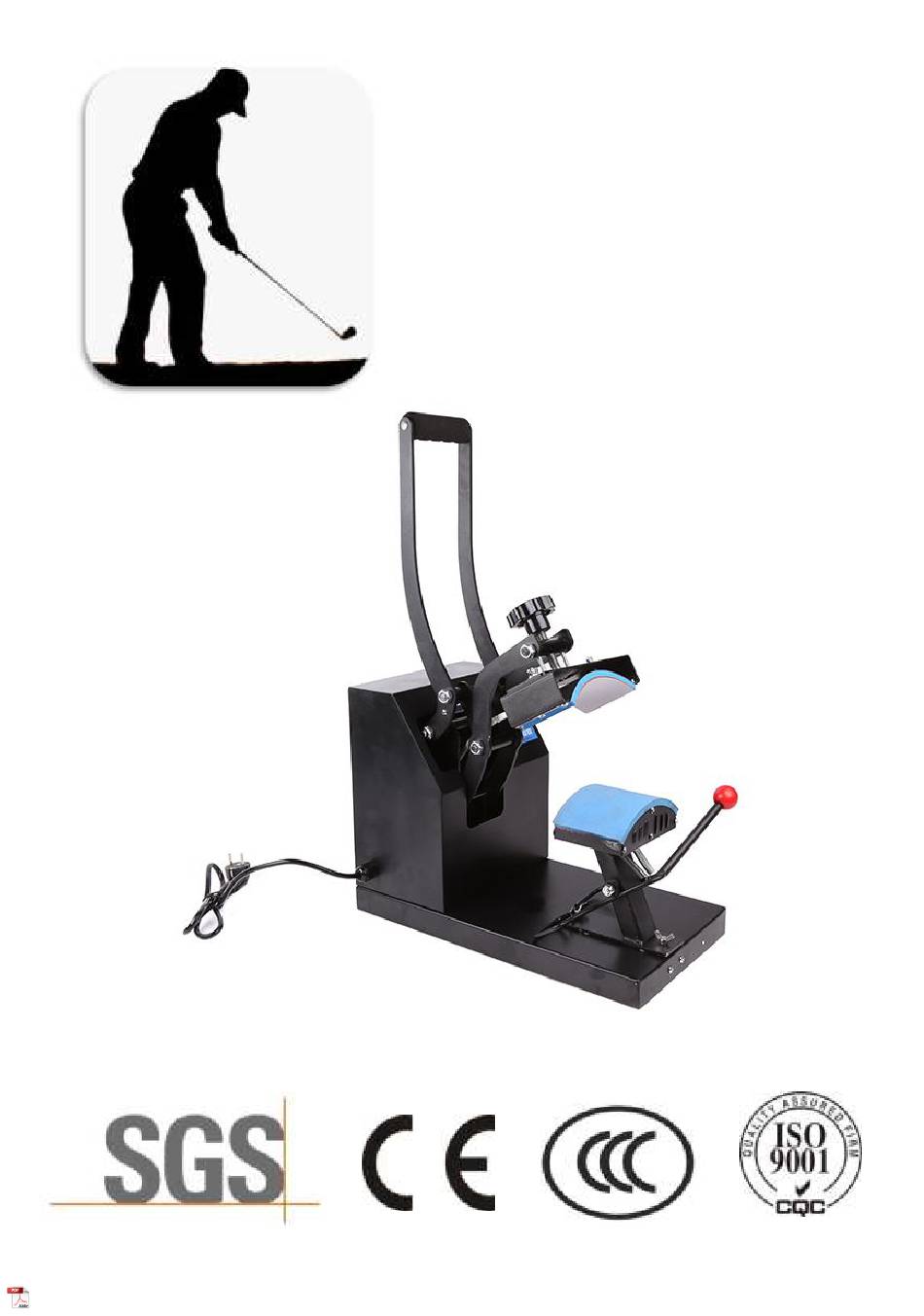

- Page 1 Golf CapHeat Press Machine User Manual...
- Page 2 Ⅰ. Commissioning 1. Remove the package and cable ties, lift the pressure handle, as shown in Figure 1. Rotate the “adjustment hand wheel” to an appropriate position of pressure, as shown in Figure 2. Pressure handle Adjustment hand wheel Heating plate Mould Power switch Figure 2...
- Page 3 c. Technological parameter setting (Celsius degree) Operating temperature: press button “temperature setting” in the initial state, temperature indicator starts blinking. Press “+” or “-“ to set the operating temperature. When temperature setting is completed, press “temperature setting” again to return to the initial state. Heating time: press button “time setting”...
- Page 4 6. Preparations: clean up the surface of the material to be transferred, attach the transfer paper to the surface of material to be transferred, fix it using the high temperature tape, and keep the front side of the material up. Rotate the “adjustment hand wheel”...
