Summary of Contents for smart acoustic SPM120

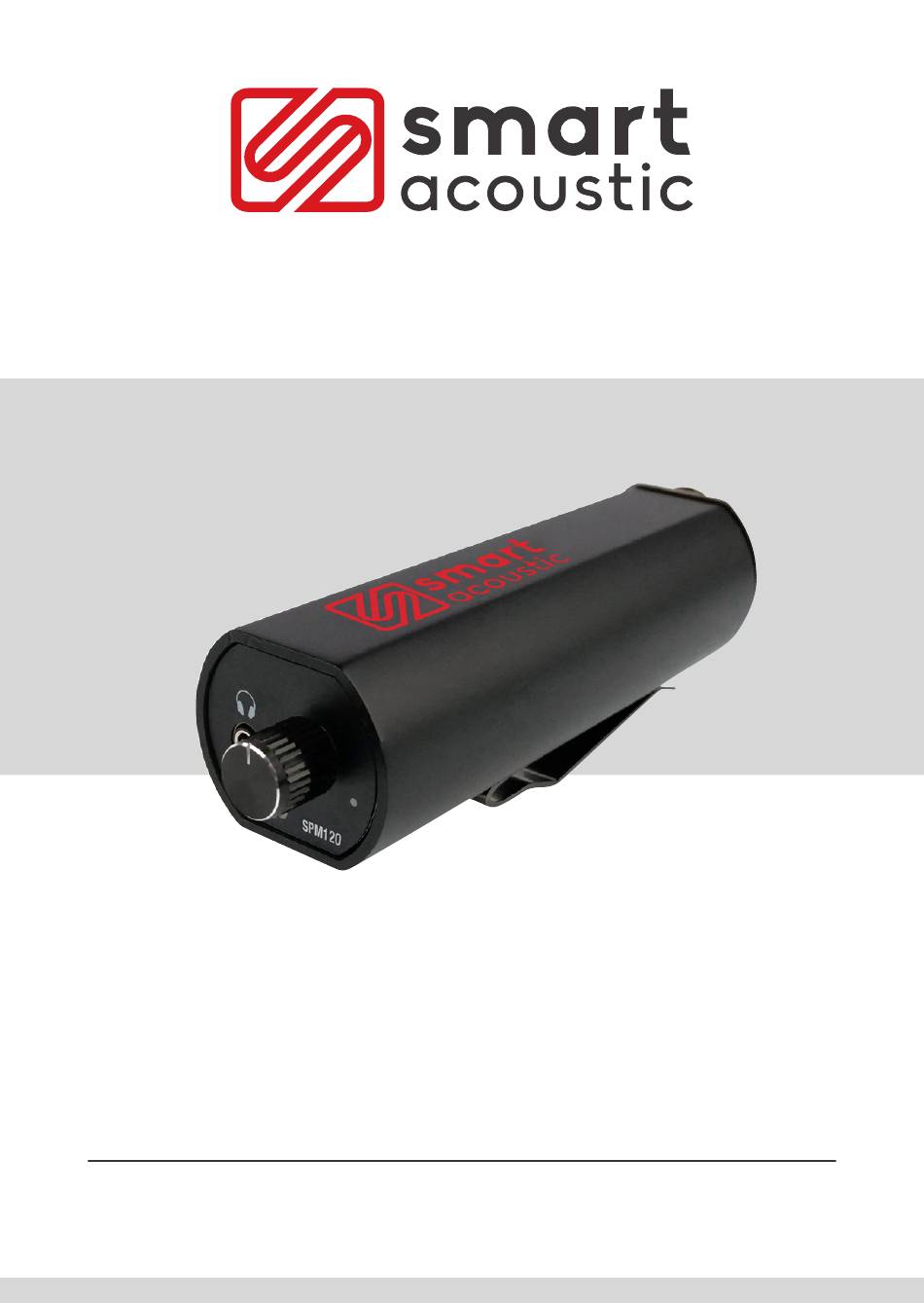

- Page 1 OPERATION MANUAL SPM120 - PERSONAL MONITOR HEADPHONE AMP...

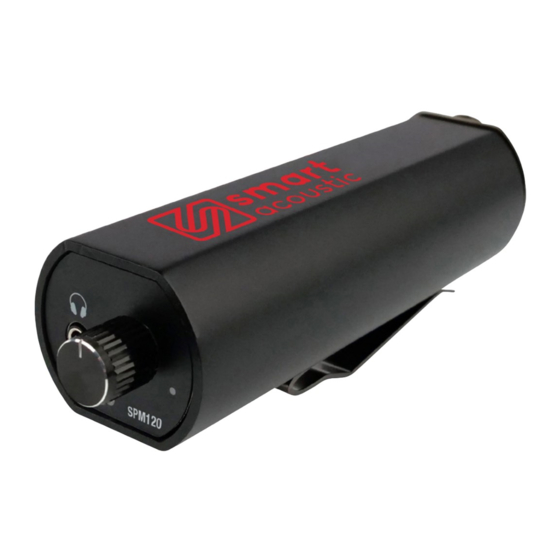

- Page 2 01. Features & Specifications SPM120 is an active converter for personal monitor application, with a built-in battery. An XLR or 1/4” jack can be connected to the personal monitor. The volume knob adjusts the output level and powers the unit off when turned counterclockwise. The adjacent green LED will light when the power is on.
- Page 3 lnput for XLR or 1/4” Jack male plug for connection to the personal monitor. Volume knob adjusts the output level and powers the unit off when turned fully counter clockwise. The green LED will light when the power is on and battery indicator.
- Page 4 Hold the RELEASE button down and slide the outer shell down toward the input jack to expose the unit’s interior. Insert the batteries into battery slots and insert the unit’s interior back into position. 03. Connection of SPM120 www.smart-acoustic.com...
