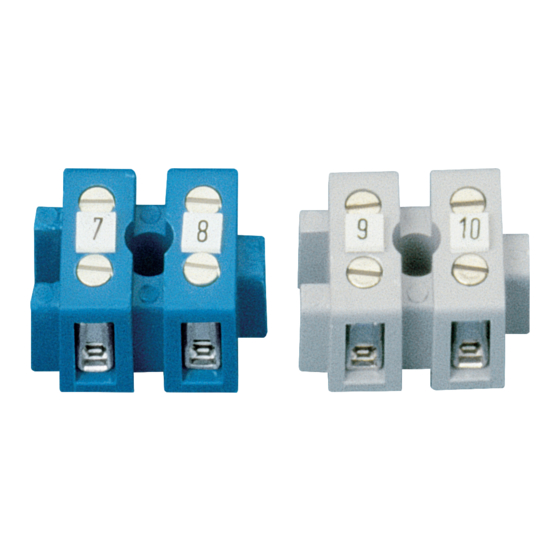

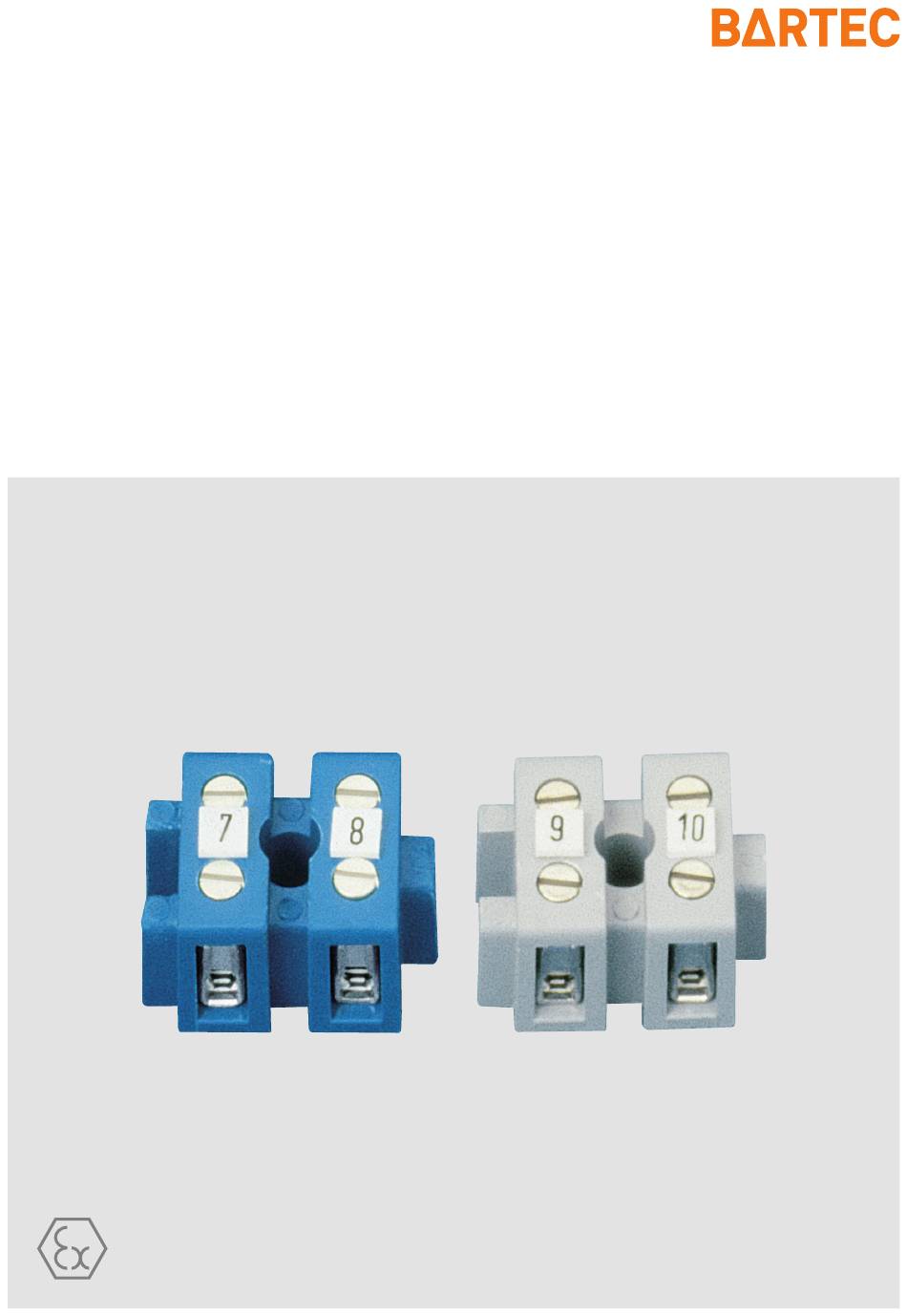

- Page 1 Mini-terminal Type 07-9702-0*2*/****...
-
Page 2: Explosion Protection
IECEx Ex eb IIC Gb Ex eb I Mb Certification IECEx EPS 21.0038 U Other approvals and certificates, see www.bartec.com -55 °C to +120 °C (-67 °F to +248 ° F) Service temperature range Approved for zones 1 and 2... -
Page 3: Safety Instructions
Utilization in areas other than those specified or the Assembly, Installation, modification of the product by anyone other than the manufacturer is not permitted and will exempt BARTEC from and Commissioning liability for defects and any further liability. The generally applicable statutory rules and other binding... -
Page 4: Operation
01-9702-7M0001/C-04/2022-ESS-286298 Operational Instruction (Original) Accessories, Spare Parts NOTE See BARTEC catalogue. 2-pole mini-terminals must be secured against rotation if fitted singly. If mounting the terminals onto a rail, use an anti-rotation device, order number 05-0010-0005. If mounting Disposal the terminals onto the base, use an anti-rotation device, order number 05-0010-0002. - Page 5 Operational Instruction (Original) 01-9702-7M0001/C-04/2022-ESS-286298 Dimensions in mm (in) Ordering 2-pole mini-terminal 3-pole mini-terminal Rotation stop for base mounting Order number 05-0010-0002 Ø 3.2 (0.13) Ø 3.2 (0.13) Ø 5.3 (0.21) Ø 5.3 (0.21) 11 (0.43) 18.4 (0.72) 18.4 (0.72) Rotation stop for rail mounting Order number 05-0106-0015 Ø...
-
Page 6: Eu Declaration Of Conformity
01-9702-7M0001/C-04/2022-ESS-286298 Operational Instruction (Original) EU Declaration of Conformity Konformitätsbescheinigung Attestation of Conformity Attestation de conformité 01-9702-7C0001_D Nous BARTEC GmbH Max-Eyth-Straße 16 97980 Bad Mergentheim Germany erklären in alleiniger declare under our sole attestons sous notre seule Verantwortung, dass das Produkt responsibility that the product responsabilité... - Page 7 BARTEC BARTEC GmbH Max-Eyth-Str. 16 97980 Bad Mergentheim Germany Tel.: +49 7931 597-0 info@bartec.com bartec.com 01-9702-7M0001/C-04/2022-ESS-286298...
