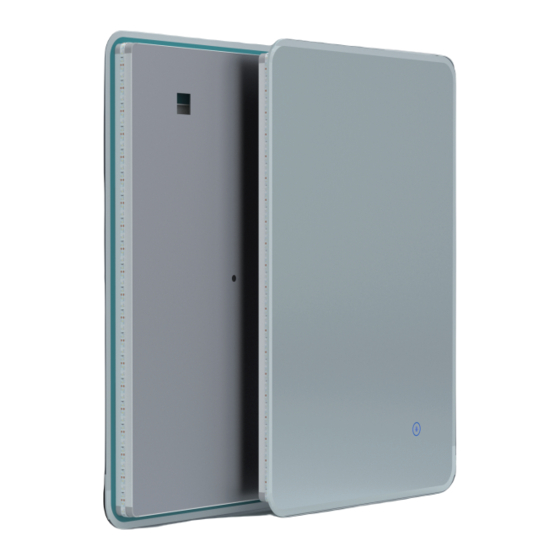

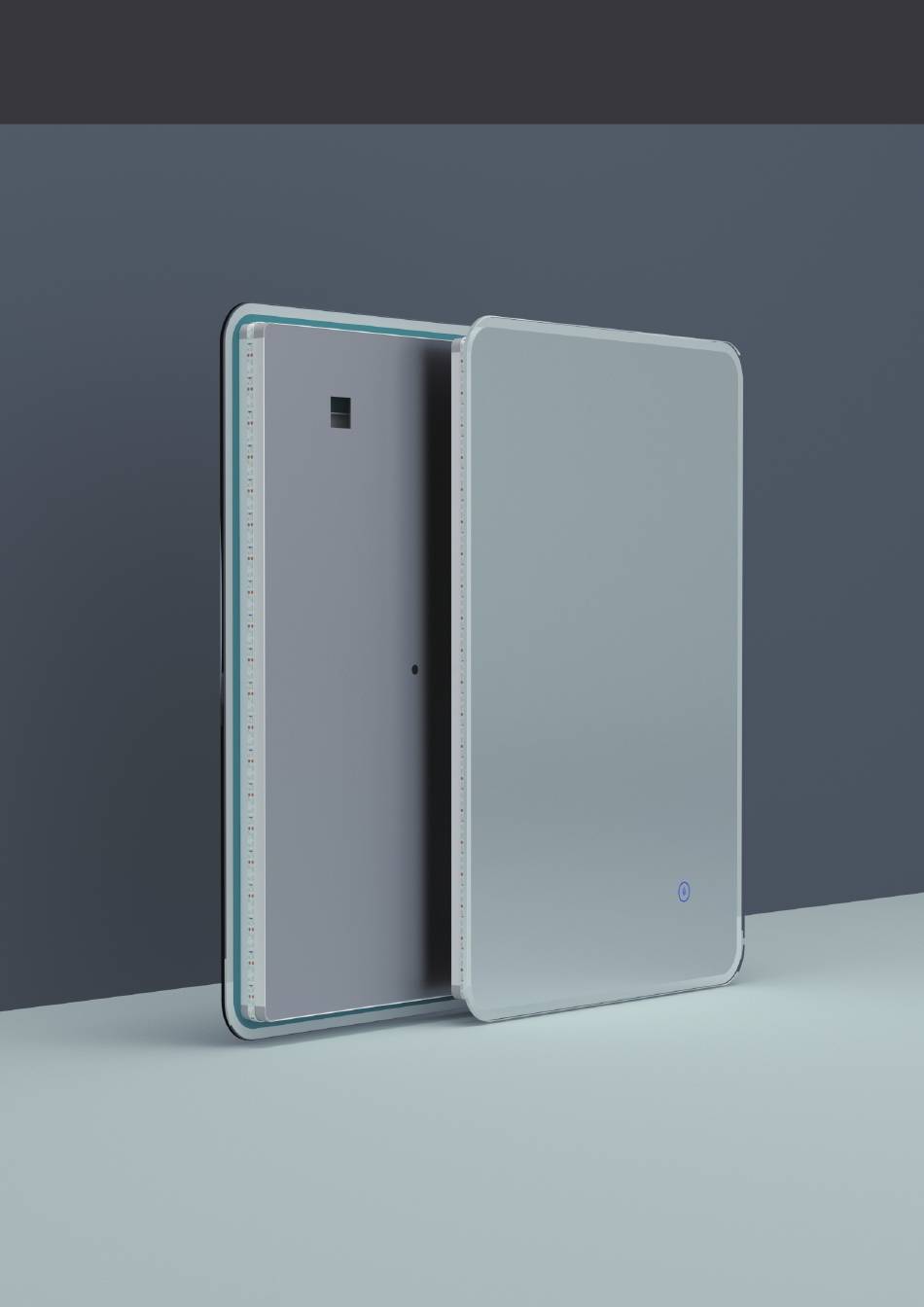

- Page 1 MIRROR 006 INSTRUCTION MANUAL...
-
Page 2: Front View
MIRROR 006 Mirror 500x700mm R40mm ON/OFF BUTTON 500mm Front View 35mm HOOKS WIRE OUTLET Side View Back View... -
Page 3: Technical Details
MIRROR 006 Technical Details Heated Demister Pad This mirror comes with a demister pad,which heats the surface of the mirror above room temperature removing the mist on surface .It turns ON/OFF along with the led light once you touch the power button... - Page 4 MIRROR 006 Safety & Installation Notes Thankyou for purchasing this Product Please read these instructions thoroughly and refer back to them during installation to ensure product safety. Retain this leaflet for future reference Before installation ,ensure the domestic electrical mains supply is switched off.Before drilling ,ensure there are no hidden cables or pipes in the wall.
-
Page 5: Installation Instructions
MIRROR 006 Installation Instructions General Information This product conforms to U.K. safety standards and must be installed in accordance with the current IEE Wiring and Building regulations(Part P). This product must be earthed and should not be connected to an unearthed circuit.If there are only two wires coming from your power supply it means that this fitting can be wired to an unearthed circuit. -
Page 6: Installation Procedure
MIRROR 006 Installation Procedure Notes: To ensure the normal use of products, it is required you set out wires as per the regulations of IEE at the installation places. The Products are only applicable to being installed on the indoor solid wall.The installation must be carried out by a professional electrician and wrong installation may lead to product damage and personal injury. -
Page 7: Schematic Diagram
MIRROR 006 Wiring Diagram for Input Brown Brown Yellow green Yellow green Blue Blue LUMINAIRE MAINS SUPPLY Schematic Diagram Fig. 3 Waste Electrical & Electronic Equipment Regulations (WEEE) requires that any of our products showing this mark (left) must not be disposed off with other household or commercial waste. - Page 8 MIRROR 006 LED Mirror FAQ's 4.30kg Mirror Weight (kg) Mlrror+Box Weight (kg) 5.50kg Light Source Light source average span 5K HOURS Total Rated Wattage (W) 32.16w Lumens(Lm) 1450 Kelvins(K) 5000 Is the mirror Dimmable? Energy Rating PORTRAIT What orientation can the mirror be hung in ?
