SmartBridges airClient Nexus PRO TOTAL sB3412 User Manual

Smartbridges airclienttm nexus pro total user guide sb3412
Hide thumbs Also See for airClient Nexus PRO TOTAL sB3412:
Table of Contents

Advertisement

Quick Links

Download this manual

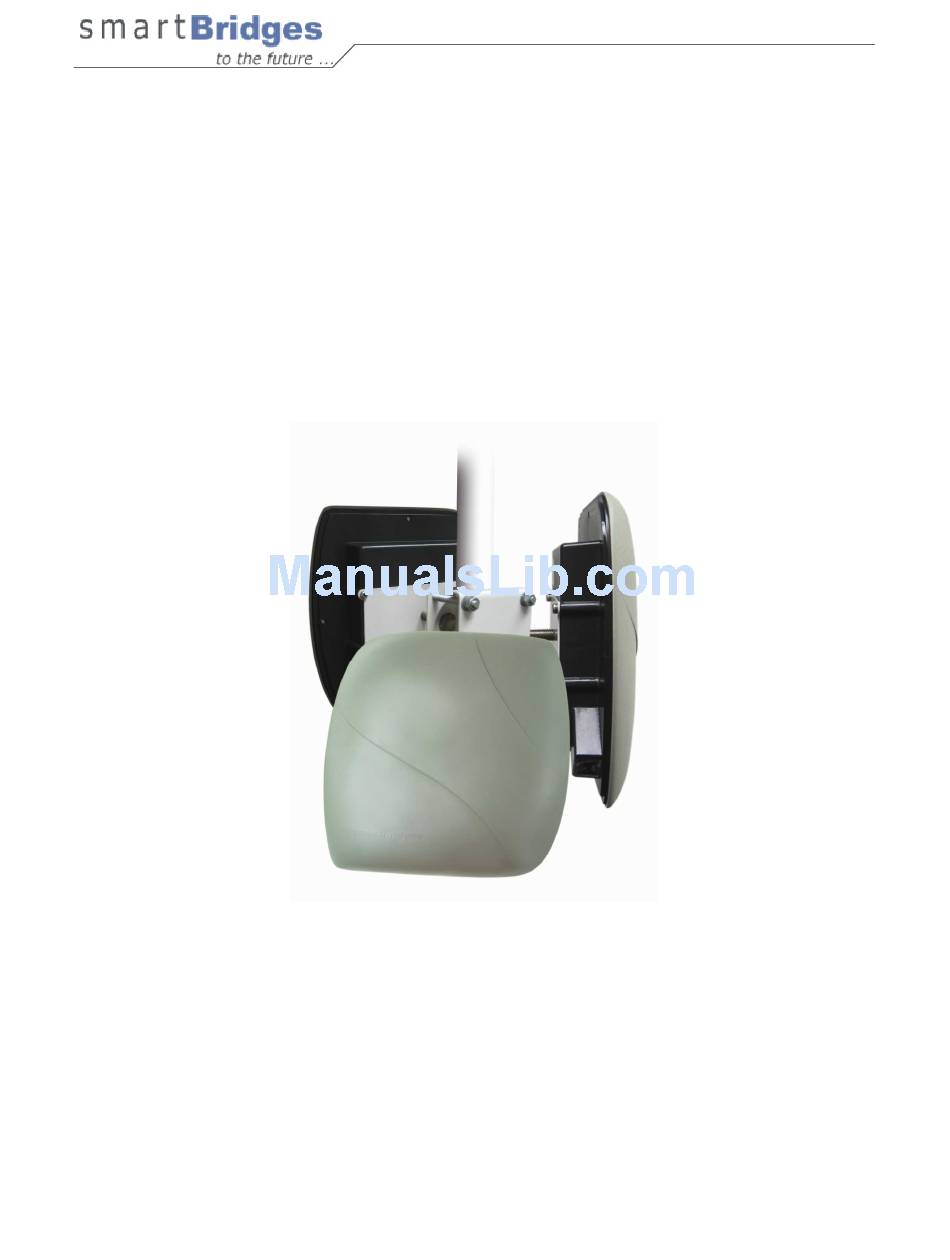

u n w i r i n g
o u r
w o r l d
T M
airClient™ Nexus
PRO TOTAL
sB3412
User Guide
Version 1.0
Copyright © smartBridges Pte Ltd. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the airClient Nexus PRO TOTAL sB3412 and is the answer not in the manual?

Questions and answers

Related Manuals for SmartBridges airClient Nexus PRO TOTAL sB3412

Summary of Contents for SmartBridges airClient Nexus PRO TOTAL sB3412

  • Page 1 Nexus PRO TOTAL sB3412 User Guide Version 1.0 Copyright © smartBridges Pte Ltd. All Rights Reserved.

  • Page 2: Table Of Contents

    About This Document ...4 Technical Support Center ...5 Introduction ...6 ...6 YSTEM EQUIREMENTS 1.1...6 1.2..7 HECKLISTS aCNPT Configuration ...11 OGIN AND ICENSE 2.1...11 2.2. GUI A DMINISTRATOR 2.3. SING THE ONFIGURATION 2.4. EVICE ONFIGURATION 2.5. CNPT R /NAT OUTER 2.6.
  • Page 3 8.1.3 NTP Time Server Setup ...64 ...64 ROFILE ANAGER 8.2.1 Save Profile ...66 8.2.2 Load Operating Profile ...66 8.2.3 Profile Calendar...66 ...67 UDGET LANNING 9. Firmware Upgrade ...72 Appendix A – SNMP Trap...74 Appendix B – Useful terms and definitions ...75 Appendix C –...

  • Page 4: About This Document

    About This Document This User Guide is for the networking professional who configures and manages the smartBridges’ Intelligent Nexus Platform of wireless client device, the airClient™ Nexus PRO TOTAL (sB3412). It provides detailed information on using the web-based configuration GUI to configure the airClient Nexus PRO TOTAL unit, hereafter shortened to aCNPT.

  • Page 5: Technical Support Center

    To access technical support resources, please visit support center website http://www.smartbridges.com/support/ You will need to register for certain services and downloads on the smartBridges support center website. airClient™ Nexus PRO TOTAL User Guide Page 5 of 78...

  • Page 6: Introduction

    1. Introduction This User Guide provides information on how to set-up and deploy the airClient Nexus PRO TOTAL unit. A web-based management tool is provided to assist the user to configure the aCNPT. The aCNPT web-based management tool provides the user with the following features: 1.

  • Page 7: Checklists

    Mbps (Internal antenna dBi is 15 for 802.11b/g and 17 for 802.11a) Horizontal/Vertical Miles/km Parabolic/sector smartBridges/Name of other manufacturer Horizontal – deg Vertical – deg p l a t f o r m Site A Site B Page 7 of 78...
  • Page 8 Length of external cable connecting a Radio and antenna Fade Margin taken into account for a link budgeting Model of smartBridges aCNPT equipment selected for a link. Please refer to note below for selecting the right equipment Grounding- Earth to Neutral Voltage...
  • Page 9 IP address of Wireless Port Noise Floor RSSI Channel selected for Link Radio TX Output Power Model of smartBridges aCNPT equipment selected for a link. Antenna Gain Antenna Polarization Antenna Type (if using external antenna) Antenna Mfg. (if using external antenna)
  • Page 10 Signature of Engineer: Name: Email: Installation Date: Commissioned Date: latest information http://www.smartbridges.com/ airClient™ Nexus PRO TOTAL User Guide i n t e l l i g e n t w i r e l e s s Units Yes/No Yes/No...

  • Page 11: Acnpt Configuration

    The default user name is Administrator and the password is smartBridges (case sensitive). 4. Click the ’OK’ button. A license agreement page will appear as shown in Fig 2-2 below.
  • Page 12 i n t e l l i g e n t w i r e l e s s p l a t f o r m Figure 2-2 License Agreement Page Figure 2-3 aCNPT Summary Information Page airClient™ Nexus PRO TOTAL User Guide Page 12 of 78...

  • Page 13: Web Gui Administrator Password Change

    2.2. Web GUI Administrator Password Change By default the administrator password is smartBridges (case sensitive). Follow the steps below to change the Administrator password: 1. Click on the Tools | User Manager drop down menu in the navigation menu bar. An Administrator Password Change GUI will appear.

  • Page 14: Using The Configuration

    2.3. Using the Configuration Pages The aCNPT Nexus configuration system comprises several pages for configuring each parameter. A common navigation menu bar is provided at the top of each page for easy navigation as shown in the figure below. Figure 2-5 Navigation Menu Bar showing editable boxes for parameters System configuration information is displayed as read-only in each page.
  • Page 15 Menu Item Menu Sub-items Networking Bridge Configuration DHCP Traffic Statistics Bandwidth Controller Routing Table Radio Main airClient™ Nexus PRO TOTAL User Guide i n t e l l i g e n t w i r e l e s s Description Displays the bridge address, generic bridge port table, spanning tree port...
  • Page 16 Security airClient™ Nexus PRO TOTAL User Guide i n t e l l i g e n t w i r e l e s s Security: Allows user to set the WEP Keys Open/Shared System modes of authentication. WPA-PSK: Where automatically rekeying)
  • Page 17 Information on Technical Support Links to online User Guide Allows user to register product and provide feedback or suggestions. LInks to smartBridges website for any software updates. General system description, software version information and warranty information. p l a t f o r m...

  • Page 18: Device Mode Configuration

    2.4. Device Mode Configuration The device operational mode is displayed at the top right hand corner of each page. The Device Mode Configuration allows the user to configure the aCNPT in Bridge, Router and NAT. NAT: This is the default operating mode. This mode allows a Local Area Network (LAN) to use one set of IP addresses for internal traffic and a single wireless IP for external traffic.

  • Page 19: Acnpt Router/Nat To Acnpt Bridge

    2.5. aCNPT Router/NAT to aCNPT Bridge Follow the steps below to change aCNPT Router/NAT mode to aCNPT Bridge Mode 1. Go to ‘Tools | System Configuration’ drop down menu. The ‘System Configuration’ will be displayed. 2. Click on the ‘Current Operational Mode’ link to go to the ‘System Configuration’ page. Choose ‘Bridge under the ‘Remote Device’...

  • Page 20: Acnpt Bridge To Acnpt Router/Nat

    2.6. aCNPT Bridge to aCNPT Router/NAT Follow the steps below to change aCNPT Bridge mode to aCNPT Router/NAT mode 1. Go to ‘Tools | System Configuration’ drop down menu. The ‘System Configuration’ will be displayed. 2. Click on the ‘Current Operational Mode’ link to go to the ‘System Configuration’ page. Choose ‘Router’...

  • Page 21: Acnpt Bridge Configuration

    2.7. aCNPT Bridge Configuration The aCNPT in Bridge mode can associate only with a smartBridges airPoint access point in bridge mode (SB3210) as they both use WDS link implementation. It can associate with any third party bridge but the link is more effective with a smartBridges airPoint.

  • Page 22: Wireless Configuration

    2.7.2. Wireless Configuration The wireless parameters need to be configured to allow the aCNPT in Bridge mode to associate with an airPoint™ (sB3210) in Bridge mode. Follow the steps below to configure the aCNPT Bridge Mode wireless association parameters: 1. Select ‘Main – aCNPT Bridge Mode’ from the ‘Radio’ drop-down menu on the menu bar. 2.
  • Page 23 i n t e l l i g e n t w i r e l e s s p l a t f o r m Figure 2-11 Radio Main (Wireless Settings Page) - Associated Click on ‘Status’ to view the association link-status graph. Figure 2-12 Link Status Noise Floor is the measure of the signal created from the sum of all the noise sources and unwanted signals within a measurement system.

  • Page 24: Bridge Configuration

    2.7.3. Bridge Configuration In Bridge mode the aCNPT unit acts as a transparent bridge between the Radio and the Ethernet interfaces. The figure below shows the bridge configuration and the table of bridge forwarding information. The STP (Spanning Tree Protocol) is disabled by default. Figure 2-13 Bridge Configuration Information 2.7.4.

  • Page 25: Stp Settings Configuration

    2.7.5. STP Settings Configuration STP is disabled by default. The table below lists the default STP settings when the STP is enabled. Setting Default Value Bridge priority 32768 Bridge max age Bridge hello time Bridge forward delay Ethernet port (ETH A) path cost Ethernet port (ETH A) priority...
  • Page 26 Ethernet port (ETH B) priority Radio port (Radio A) path cost Radio port (Radio A) priority The Radio and Ethernet interfaces are assigned to bridge group by default. When the user enables STP and assigns a priority on bridge, STP is enabled on the radio and Ethernet interfaces. The interfaces adopt the priority assigned to bridge.
  • Page 27 i n t e l l i g e n t w i r e l e s s p l a t f o r m 10. Enter the values of Ethernet Port Priority and/or Port Path Cost for ETHA. 11.

  • Page 28: Acnpt Router/Nat Configuration

    2.8. aCNPT Router/NAT Configuration The aCNPT unit can also be configured in Router or NAT mode which behaves like Infrastructure mode. The procedures for configuring the parameters in Router/NAT mode are given below. In this mode, the units will associate with any access point. Note: The configuration procedure of parameters in NAT mode is the same as for Router mode.

  • Page 29: Wireless Configuration

    2.8.2. Wireless Configuration The wireless parameters need to be configured to allow the aCNPT Router/NAT unit to associate with an airPoint or any third party access point. Follow these steps below to configure the aCNPT Router/NAT Mode Wireless IP Settings parameters: 1.
  • Page 30 i n t e l l i g e n t w i r e l e s s p l a t f o r m Figure 2-17 aCNPT Router Wireless Association Settings Click on ‘Status’ to view the association link-status graph. After getting the associated the page looks as follows Figure 2-18 Wireless Settings Page (Associated) airClient™...

  • Page 31: Dhcp Configurations

    Noise Floor is the measure of the signal created from the sum of all the noise sources and unwanted signals within a measurement system. Note: If the association status window does not appear, click on the Java link to download the JRE. 2.8.3.
  • Page 32 6. Enter DNS Server IP address(es). 7. Click on the ’Apply Changes’ to change the settings. Note The system will validate the input parameters and notify users of invalid entries. The Starting IP address will be in the same network segment as the device wired-side Ethernet IP address.

  • Page 33: Dhcp Relay Configurations

    2.8.4. DHCP Relay Configurations If the user has a DHCP Server, the aCNPT Router can be configured as a DHCP Relay agent of the DHCP Server for IP address assignment. Follow the steps below to configure the aCNPT Router unit as a DHCP Relay Agent: 1.

  • Page 34: Routing Table

    2.8.5. Routing Table The aCNPT Router web-interface provides viewing of the routes and allows for adding and deleting of the static routes for the aCNPT Router mode only. To view the route entry in the aCNPT Router device, click on ‘Networking’ | ‘Routing Table’ from the menu bar to access the view routing table page.

  • Page 35: Wireless Settings Management

    i n t e l l i g e n t w i r e l e s s p l a t f o r m Figure 2-24 Adding Static Route 2.8.6. Wireless Settings Management The Radio Configuration Main page can be accessed from the Radio menu. The contents will be slightly different for each mode, Bridge, Router or NAT.

  • Page 36: Wireless Settings

    2.8.7. Wireless Settings The following table summarizes the information for the wireless settings. Page Items Descriptions This is the current SSID. User can change the SSID. The SSID is a unique identifier that SSID wireless networking devices use to establish and maintain wireless connectivity.

  • Page 37: Security

    2.8.8. Security The different types of Security that can be configured on a Remote Router/NAT are as follows: 1. WEP Only 2. WPA –RADIUS 3. WPA –PSK 4. WPA2-RADIUS 5. WPA2-PSK Note: Default Security is None. WEP: Wireless Equivalent Privacy (WEP) encryption is used for security between the aCNPT and the airPoint or any other access point.
  • Page 38 4. Choose a WEP Key Size (64 Bits or 128 Bits) from the pull-down list. WEP key length is 10 characters for 64 Bits and 26 characters for 128 Bits. 5. Choose a Valid Key from the pull-down list. 6. Enter the WEP key in the Key Table entries. 7.
  • Page 39 Page Items WPA-PSK is an extra-strong encryption where encryption keys are automatically changed (called rekeying) and authenticated between devices after a specified period of time, or after a specified number of packets has been transmitted. WPA-PSK WPA-PSK is far superior to WEP and provides stronger protection for the home/SOHO user for two reasons.
  • Page 40 3. Enter the User id and the Password in the dialog box provided 4. In order to validate the certificates, click on the validate certificate radio button ( appears with a browser button, which you can use to browse for the certificates on your local machine.
  • Page 41 Figure 2-30 Authentications between the supplicant and the Authentication server The wireless client (laptop) is known as the Supplicant. The access point is known as the Authenticator and the RADIUS server is known as the Authentication server. Follow the steps below for Configuring the WPA2-RADIUS: 1.

  • Page 42: Performance Parameters And Bandwidth Controller

    3. Performance Parameters and Bandwidth Controller This chapter gives instructions for editing the wireless radio protocol parameters to optimize radio performance and changing the Bandwidth Controller. These procedures are the same for all the three modes. 3.1. Link Performance Parameters and Features The radio protocol parameters are: Fragment Length (between 256 and 2346) RTS/CTS (between 256 and 2346)
  • Page 43 Throughput The Throughput Optimizer is used to optimize the radio Link speed and Optimizer performance. The Valid range is 0 to 10. The default value is 6. Setting a higher value will cause the radio to attempt to establish at the highest possible data rate in an aggressive way.

  • Page 44: Bandwidth Controller

    3.2. Bandwidth Controller Using the Bandwidth Controller on the aCNPT, the user can limit the wireless link bandwidth for the upload/download speed. The default is disabled and provides bandwidth up to 6Mbps. This is subject to the available upstream bandwidth, signal level and distance. The user can key in the upload and download bandwidth for the wireless link.
  • Page 45 i n t e l l i g e n t w i r e l e s s p l a t f o r m Figure 3-3 Added list airClient™ Nexus PRO TOTAL User Guide Page 45 of 78...

  • Page 46: Quality Of Service (Qos)

    i n t e l l i g e n t w i r e l e s s p l a t f o r m 4. Quality of Service (QoS) The primary goal of QoS is to provide priority for certain applications by dedicating bandwidth, controlling jitter and latency (which are required by some real-time and interactive traffic), and improving loss characteristics.
  • Page 47 i n t e l l i g e n t w i r e l e s s p l a t f o r m Figure 4-2: QoS front page In total, there are 9 different classes which can be configured. Note: Class 1 indicates the default value.
  • Page 48 3. Select whether the packet has to be filtered based on the IP or MAC. Figure 4-4: Selection Menu of IP/MAC based filter 4. Select whether the packet has to be filtered based on source address or the destination address. If the packet being filtered is based on IP, then enter the IP address.
  • Page 49 i n t e l l i g e n t w i r e l e s s p l a t f o r m Figure 4-6: IP address dialog box. 5. Select the Port, either Destination or Source based and select the Port Number from the drop down menu.
  • Page 50 i n t e l l i g e n t w i r e l e s s p l a t f o r m Figure 4-8: Selection menu of type of port (It can be customized by the user with the port number). 6.
  • Page 51 i n t e l l i g e n t w i r e l e s s p l a t f o r m Figure 4-10: Selected filter list window 8. After adding the desired filters to the list, click on the Apply Changes to save the configuration of the filters.
  • Page 52 9. The filters added can be deleted by first selecting the added filters from the list and then clicking on “Delete Selected filters “. 10. In order to configure with the desired minimum and maximum bandwidth, priority across classes or disable certain classes, go to the QOS main page, click on the “QoS”.
  • Page 53 12. In order to enable a particular class, click on the radio button. Tick mark indicates that the particular class is enabled. In order to disable, click on the radio button and the tick mark disappears, indicating that the class is disabled. 13.

  • Page 54: Site Survey Tool

    i n t e l l i g e n t w i r e l e s s p l a t f o r m 5. Site Survey Tool To access the Site Survey page, go to the ‘Tools’ | ‘Site Survey’ drop down menu. The following figure shows the list of SSID from the site survey.

  • Page 55: Antenna Alignment

    6. Antenna Alignment Antenna alignment can be used to optimize the radio performance and check the RSSI. To access the antenna alignment, go to the menu bar under Tools and choose ‘Antenna Alignment’. In order to view this information (Link Status), from the Radio page, use the Wireless Settings to associate the aCNPT with an access point.
  • Page 56 i n t e l l i g e n t w i r e l e s s p l a t f o r m Note: A jump in the audio frequency from low to high indicates that the RSSI is increasing and vice versa.

  • Page 57: Traffic Statistics

    7. Traffic Statistics Wireless and Ethernet Traffic Statistics can be displayed by clicking on the ‘Networking’ | ‘Statistics’ drop down menu. The following figure shows the statistics page. This page is refreshed after every 10 seconds. Transmitted Bytes Transmitted Unicast packets Transmitted Discards airClient™...
  • Page 58 Transmitted error Received Bytes Received Unicast packets Received Multicast Packets Received Discards Received Errors The wireless statistics is also available from the ‘Radio Configuration’ Main Page. Figure 7-2 Wireless Statistics from Radio Main Page Transmit Success Rate Transmit Multiple Retry count Transmit One Retry count Transmitted Failure count Received Success count...
  • Page 59 RTS Fail RTS Success No of Aborted Frames No of PHY Aborted Frames Note: The wireless statistics is also accessible from the ‘Radio Configuration’ bottom page. airClient™ Nexus PRO TOTAL User Guide i n t e l l i g e n t w i r e l e s s Total number of transmitted RTS frames for which no response CTS frame was received.

  • Page 60: Tools

    i n t e l l i g e n t w i r e l e s s p l a t f o r m 8. Tools Here you will find the relevant information for conducting the different reset options, using the Profile Manager and doing a Link Test as well as estimating the Link Budget.
  • Page 61 The following page summarizes the page contents of the System Configuration page. Table 8-1 System Configuration Page Items Page Item Descriptions. System Name Displays name of aCNPT unit Allows user to change aCNPT unit name System Description Displays description of aCNPT unit Allows user to change aCNPT unit description SNMP Security Access the SNMP security settings...

  • Page 62: Snmp Security

    8.1.1 SNMP Security The user can edit the SNMP Community String and SNMP Access filters. The SNMP community needs to match with the SNMP monitoring software used. The SNMP Access Filters allows you to determine which host(s) is authorized to monitor the device using SNMP. It is recommended that you set this for security reason and to prevent an attack.

  • Page 63: Reset Options

    8.1.2 Reset Options All reset options power cycles the device and restarts the whole system. Reset: To reset the device. The device will reboot with the current configuration/values. Reset to Defaults: To reset the device to factory default configuration values. Delayed Reset: To reset the device at a particular time and can be programmed to do so on a daily/weekly/monthly basis.

  • Page 64: Ntp Time Server Setup

    8.1.3 NTP Time Server Setup The device time comes from the network time information source. The device needs access to a network timer (NTP time server) source. The NTP time server IP can be configured as follows: 1. From the ’System Configuration’ page, click on the ’NTP Server Setting’ link. 2.
  • Page 65 Page Item Descriptions Save As: Select which profile name to save for the current configuration Profile Specify a description for the profile to be saved. Description: Save Profile Click to save current profile button Change Profile Select which profile to load as current configuration Profile Description for profile to be loaded.

  • Page 66: Save Profile

    8.2.1 Save Profile Follow the steps below to save the current configuration to a profile: 1. Select a profile name from ‘Save As’. 2. Enter a description of the profile. 3. Click the ‘Save Profile’ button to effect the changes. Existing configuration parameters in the selected profile name will be replaced with current Note: configuration parameters.

  • Page 67: Link Test

    Link Test The Link Test utility is available from the navigation menu bar in the ‘Tools | Link Test’ drop down menu. From the Link Test tools, the user can test Throughput and perform Ping Test. You can run Radio Transmit or Radio Receive.
  • Page 68 When the aCNPT is associated with an airPoint Nexus, you can do a Throughput Test to test the speed of the link. Follow the steps below to do a Throughput Test: 1. Enter a valid IP address of the far Radio. 2.

  • Page 69: Link Budget Planning

    Link Budget Planning Link Budget Planning is a very useful tool for link budget estimation. The Link Budget Planning Calculator can be accessed from the navigation menu bar ’Tools | Link Budget Planning Calculator’ drop down menu. A GPS Calculator is provided in the Link Budget Planning Calculator page to calculate the distance between two aCNPT and the access point stations.
  • Page 70 Figure 8-9 Link Budget Planning Calculator GPS Calculator Once the distance is computed follow the steps below for the link budget calculations: 1. Select the radio mode for station 1 and 2. 2. Enter the transmit output power in dBm for station 1 and 2. 3.
  • Page 71 i n t e l l i g e n t w i r e l e s s p l a t f o r m Figure 8-10 Link Budget Planning Calculator Link Budget airClient™ Nexus PRO TOTAL User Guide Page 71 of 78...

  • Page 72: Firmware Upgrade

    9. Firmware Upgrade The latest firmware for aCNPT Nexus is available for download from the smartBridges Support website at http://www.smartbridges.com/support/ The aCNPT Nexus unit firmware can be upgraded from the web management interface. Follow the steps below to upgrade the aCNPT Nexus firmware: 1.
  • Page 73 i n t e l l i g e n t w i r e l e s s p l a t f o r m Figure 9-2 aCNPT Nexus Firmware Upgrade (Firmware transferred) Figure 9-3 Successful upgrade pop-up window airClient™...

  • Page 74: Appendix A - Snmp Trap

    Appendix A – SNMP Trap aCNPT Nexus generates a SNMP trap that can be forwarded to the SNMP Trap server. The SNMP Trap server IP address is set in section. The following table provides a list of SNMP traps generated. Trap Message IP address...

  • Page 75: Appendix B - Useful Terms And Definitions

    Appendix B – Useful terms and definitions Media Access Control aCNPT aCNPT Nexus PRO TOTAL RSSI Receive Signal Sensitivity Indication SSID Service Set Identifier DHCP Dynamic Host Configuration Protocol Access Control List SNMP Simple Network Management Protocol Network Time Protocol Spanning Tree Protocol Transmission Control Protocol Internet Protocol...
  • Page 76 According to the IEEE 802.11 standard, Wired Equivalent Privacy (WEP) is intended to provide “confidentiality that is subjectively equivalent to the confidentiality of a wired local area network medium and that does not employ cryptographic techniques to enhance privacy.” WEP relies on a secret key that is shared between a mobile station and an access point. WEP uses the RC4 stream cipher invented by RSA Data Security.
  • Page 77 i n t e l l i g e n t w i r e l e s s p l a t f o r m DHCP DHCP stands for ‘Dynamic Host Configuration Protocol’ and is a means for networked computers to get their TCP/IP networking settings from a central server.

  • Page 78: Appendix C - License

    Appendix C – License aCNPT Nexus is Copyright © 2004-2005 by smartBridges. All rights reserved. Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met: 1.
