iSMA-B-AAC20 Hardware User Manual Table of Contents Introduction ..........................3 Revision History..........................3 Safety Rules..........................4 Technical Specification ......................5 Hardware Specification ......................8 Hardware Versions..........................8 Power Supply............................9 Grounding and Shielding......................10 Front Panel for iSMA-B-AAC20 ....................11 Front Panel for iSMA-B-AAC20-LCD ..................11 Communication..........................

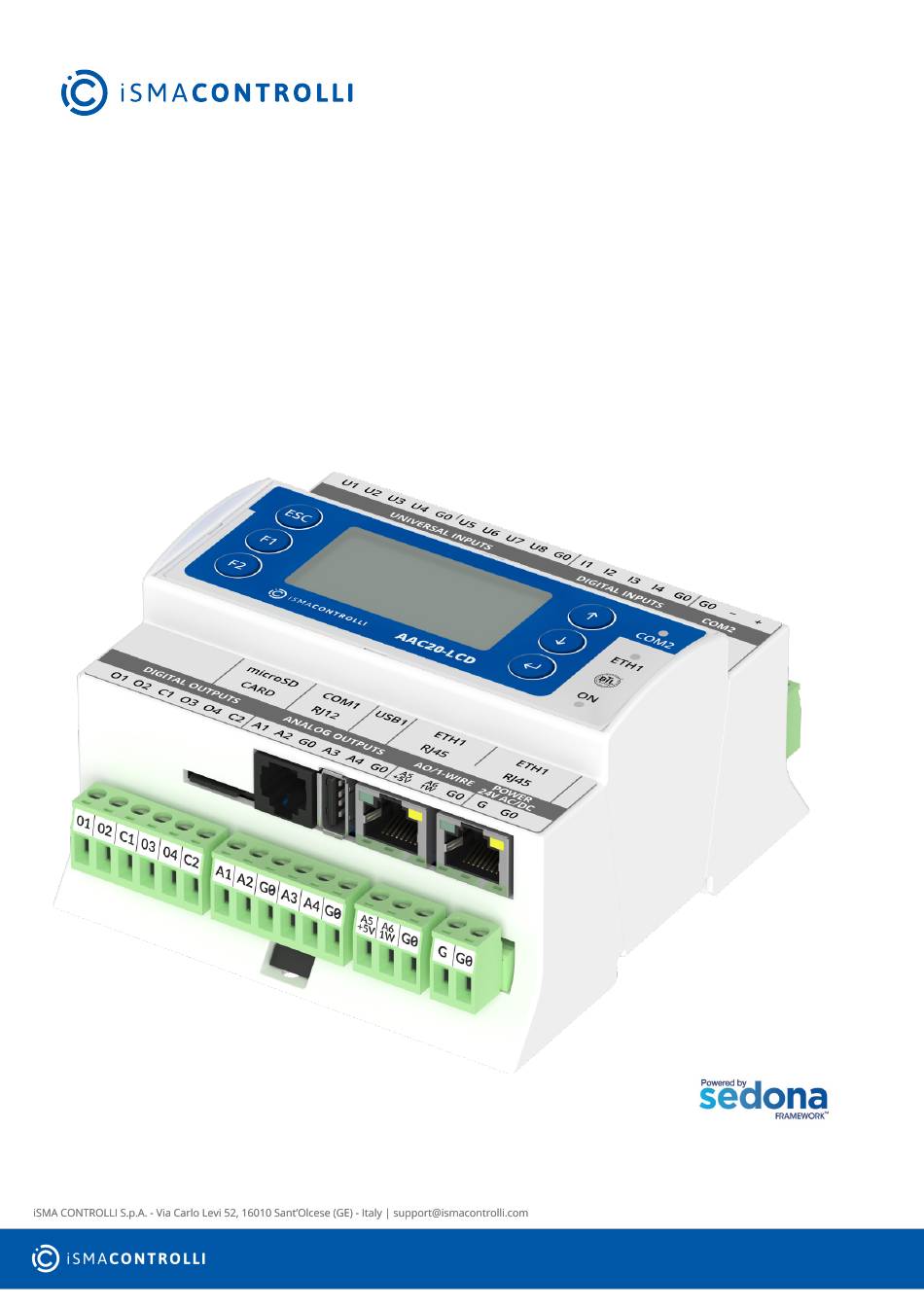

The iSMA-B-AAC20 is a universal controller with built-in different types of I/Os, which operates based on the Sedona framework environment. Using a specific set of inputs and outputs (8 UI, 4 DI, 6 AO, and 4 DO) allows to use the device in different applications. The controller provides control, data logging, alarming, scheduling, integration.
iSMA-B-AAC20 Hardware User Manual 2 Safety Rules • Improper wiring of the product can damage it and lead to other hazards. Make sure that the product has been correctly wired before turning the power on. • Before wiring or removing/mounting the product, make sure to turn the power off. Failure to do so might cause an electric shock.
iSMA-B-AAC20 Hardware User Manual 3 Technical Specification Power Supply Voltage 24 V AC/DC ± 20% Power consumption 7 W at 24 V DC; 10.5 VA at 24 V AC Universal Inputs Number of inputs Temperature input Measurement with attached RTDS Accuracy ±0.1˚C For sensors PT1000 and NI1000 use 16-bit resolution...
Page 6
iSMA-B-AAC20 Hardware User Manual Digital Outputs Number of outputs (Relays) Contact material AgSnO2 Resistive load 3 A at 230 V AC or 3 A at 30 V DC Inductive load 75 VA at 230 V AC or 30 W at 30 V DC COM1 RS485 interface Up to 128 devices...
Page 7
iSMA-B-AAC20 Hardware User Manual Humidity Relative 5% to 95% (without condensation) Screw Connectors Type Separable Maximum cable size 2.5 mm2 Dimensions Width 110 mm/4.33 in Length 106 mm/4.17 in Height 62 mm/2.44 in Table 2. Technical specification www.ismacontrolli.com DMP239en | 1st Issue rev. 0 | 02/2022 page 7 of 42...
The iSMA-B-AAC20 controller is an advanced control device for building automation and HVAC systems. The controller is based in the Sedona Virtual Machine (SVM), which allows the user to quickly and easily program the controller in real time. Large number of inputs and outputs allows to integrate with other devices and sensors (AAC20 provides 8 UI, 4 DI, 6 AO, and 4 DO).
iSMA-B-AAC20 Hardware User Manual Figure 8. AAC20 extended M-Bus version • iSMA-B-AAC20-D: basic hardware version, native protocols: Modbus, BACnet, display port, 1-Wire, DALI, and • iSMA-B-AAC20-LCD-D: LCD display, native protocols: Modbus, BACnet, display port, 1- Wire, DALI: Figure 9. AAC20 extended DALI version 4.2 Power Supply The iSMA-B-AAC20 controllers are designed to work with 24 V AC/DC power supply.
iSMA-B-AAC20 Hardware User Manual Figure 10. AC power supply connection Figure 11. DC power supply connection 4.3 Grounding and Shielding In most cases controllers are installed in enclosures along with other devices, which generate electromagnetic radiation (for example, relays, contactors, transformers, motor invertors, etc.).
iSMA-B-AAC20 Hardware User Manual 4.4 Front Panel for iSMA-B-AAC20 Figure 12. Front panel for AAC20 The basic iSMA-B-AAC20 hardware version (iSMA-B-AAC20, iSMA-B-AAC20-M, iSMA-B- AAC20-D) has a front panel equipped with status diodes and a DIP switch. • The power LED (ON) is on (green) when the controller is running properly. •...
iSMA-B-AAC20 Hardware User Manual • The communication Ethernet LED (ETH1) is on (orange) for 20 ms after sending each message. • The Esc button is an exit key. • The Enter key is used to select an element or to move the cursor to the right. •...
iSMA-B-AAC20 Hardware User Manual 4.6.2 RS485 COM2 Figure 15. RS485 connection 4.6.3 1-Wire 1-Wire is a special protocol for device which is made by the Dallas company. Temperature sensors use DS18D20 chip. The 1-Wire bus uses 3 wire cable (+5 VCC, Data, GND) of maximum 100 m long (it is recommended to use shorter distance) and up to 32 sensors.
iSMA-B-AAC20 Hardware User Manual hardware version with the M-Bus interface (max. 20 devices) and with firmware version 5.1 and above. Figure 17. M-Bus connection 4.6.5 DALI In a standard license, there are available 64 DALI devices, and this number cannot be expanded.
iSMA-B-AAC20 Hardware User Manual 4.6.6 USB The USB1 port allows to enter the system console of the device with an A-to-A USB cable: • connect the device to the PC; • open the AAC20 Updater tool; • enter the system console using the Console button. 4.6.7 SD Card The SD card allows to save historical data and alarms that occurred during the operation of the controller.
iSMA-B-AAC20 Hardware User Manual 5 Inputs and Outputs The iSMA-B-AAC20 is equipped with 20 inputs and outputs: • 8 universal inputs; • 4 digital inputs; • 6 analog outputs; • 4 digital outputs. 5.1 Universal Inputs The iSMA-B-AAC20 device is equipped with 8 universal inputs. Universal inputs support four types of input signals: •...
iSMA-B-AAC20 Hardware User Manual 5.1.4 Universal Input Dry Contact Connection Figure 22. Universal input dry contact connection 5.2 Digital Inputs The iSMA-B-AAC20 device is equipped with 4 digital inputs. Digital inputs operate as standard dry contact inputs and, additionally, as high speed pulse counters up to 100 Hz.
iSMA-B-AAC20 Hardware User Manual 5.3.3 Analog Output Actuator Connection Figure 26. Analog output actuator connection 5.4 Digital Outputs The iSMA-B-AAC20 is equipped with 4 digital outputs. Digital outputs operate as relay outputs with maximum loads of: • resistive load: 3 A at 230 V AC, and 3 A at 30 V DC; •...
