Summary of Contents for Sirius Satellite Radio Stream Jockey II XTR2CK

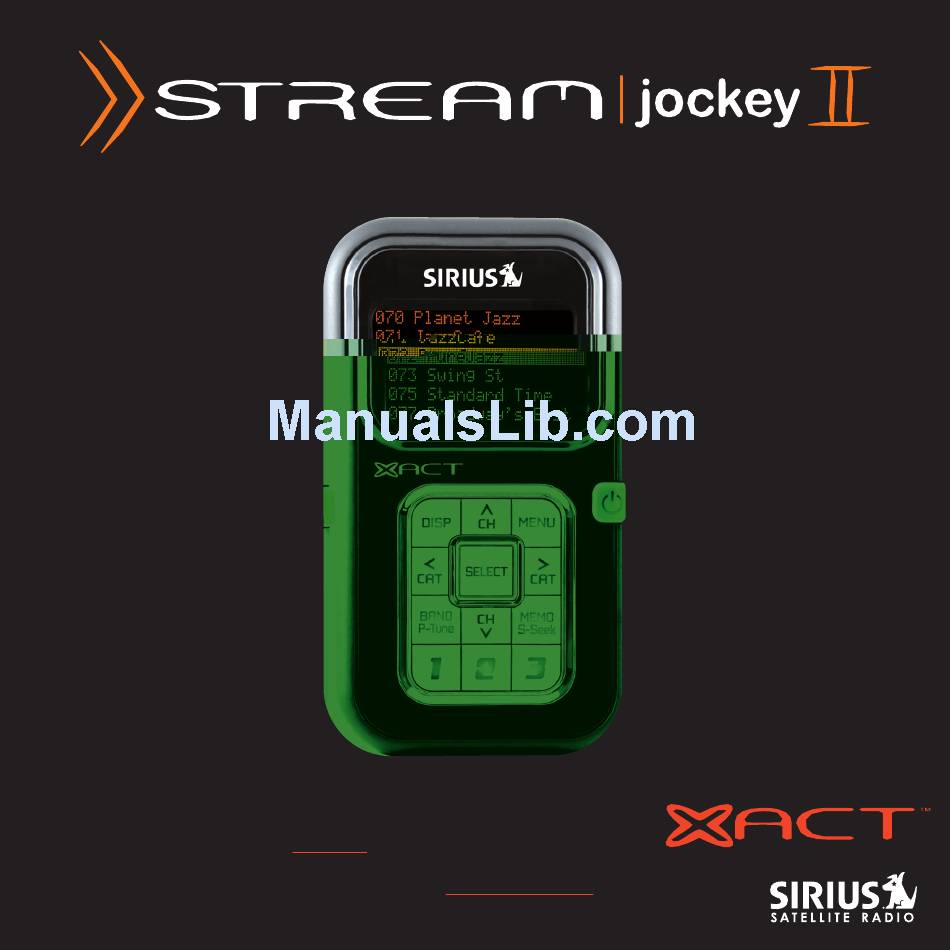

- Page 1 Instruction Manual Model XTR2CK To activate your Satellite Radio Receiver or for latest news and questions regarding SIRIUS ® Satellite Radio service visit sirius.com or call 1-888-539-SIRIUS (7474). For accessory & product information visit us at www.getxact.com.
- Page 2 KEEPMOVING...
- Page 3 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 4 SAFETY Warning Follow these notifications to avoid any traffic accidents or personal injury: 1. Installation must be performed according to this user guide. 2. Do not install the device where it may obstruct your view through the windshield or of your vehicle’s indicator displays.
-
Page 5: Table Of Contents
TABLE OF Introduction Product Overview Package Contents Components Guide Xact Stream | jockey II SIRIUS ® Wireless Remote Control Getting Started Mounting Your Xact Stream | jockey II Satellite Radio at Home Mounting Your Xact Stream | jockey II Satellite Radio in a Vehicle Activating Your SIRIUS ®... - Page 6 TABLE OF Daylight Saving Time Alarm Clock Time Program Alert Program Day/Time Channel Selection Auto Shutdown Sleep Mode Factory Default Display Messages Problem Solving Warranty CONTENTS Page 28 Page 28 Page 28 Page 29 Page 29 Page 30 Page 30 Page 31 Page 31 Page 33...
-
Page 7: Introduction
INTRODUCTION Product Overview Thank you for purchasing this product! Your new plug and play XACT Stream | jockey II satellite radio is specifically designed to mount in a vehicle or indoor/outdoor location. In the event that any item is missing or if you find any mismatch or damage, promptly contact your dealer. Your Xact Stream | jockey II Satellite Radio Receiver must be used in conjunction with any one of the following Xact Kits, such as the Universal kit, Home kit or Boom Box as required by you specific needs. -
Page 8: Components Guide

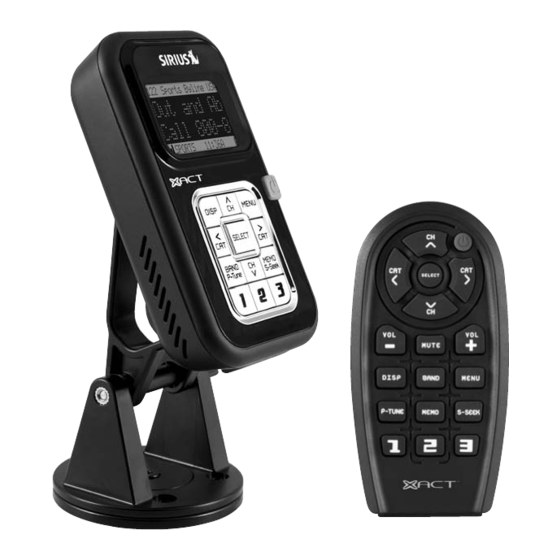

COMPONENTS XACT Stream | jockey II SIRIUS LCD Monitor (Main Display) CH (Channel) (Ascend/Descend Buttons) DISP (Display) CAT (Category) (Left/Right Directional Buttons) BAND (P-TUNE) IR for Remote Control Power Button MENU Options List SELECT (OK Button) 10. MEMO (S-Seek) 11. Numerical Keys 12. -
Page 9: Wireless Remote Control
COMPONENTS Wireless Remote Control The wireless remote control packed with your plug and play XACT Stream | jockey II satellite radio mirrors the operations of your plug and play XACT Stream | jockey II satellite radio receiver from a remote location. CH (Channel) (Ascend/Descend Buttons) MUTE BAND... -
Page 10: Getting Started
GETTING Mounting Your XACT Stream | jockey II Satellite Radio at Home Find an appropriate location near your stereo receiver to install your plug and play satellite radio receiver. Mounting Your XACT Stream | jockey II Satellite Radio in a Vehicle Find an accessible location in your vehicle to install your plug and play satellite radio receiver;... -
Page 11: Activating Your Sirius
Activating Your SIRIUS Before beginning to use your new device, you must first register to the SIRIUS There are two ways to activate the SIRIUS 1. Visit sirius.com and click activate, then follow the on-screen instructions. 2. Call SIRIUS ® at 1-866-845-7474. - Page 12 USING THE VEHICLE INSTALLATION NOTE! Use only the appropriate accessories or input devices with your receiver. Use only the 12v Vehicle Adapter that is provided with the kit. It is important that you do not modify it in any way since this will result in damaging your equipment and void the warranty.
- Page 13 IF YOU HAVE PURCHASED A Boom Box INSTALLATION PUSH RECEIVER ONTO CONNECTOR LATCH BOOMBOX LOCKS RECEIVER IN PLACE ROTATE RECEIVER AND CONNECTOR INTO BOOMBOX...
-
Page 14: Basic Operations
BASIC OPERATIONS After your SIRIUS ® subscription is activated, the Normal (default) Operation screen will pop up. 3-digit Channel number song title signal strength indicator Tuning to Different Entertainment Categories 1. Press the CAT button to scroll through music and entertainment categories. 2. -
Page 15: Searching For Music
Searching Music Your satellite radio offers you three ways to seek and select music: by the channel name, by artist/composer and by song title. Searching For Music By Channel (Channel List) 1. Press and hold the button while in Normal Operation mode. The Channel list screen will be displayed, numerically indicating all available channels, regardless of music category. -
Page 16: Searching For Music By Song
Searching For Music By Song (Song Title List) 1. Press and hold the button while in Normal Operation mode. 2. Continue pressing the button twice. The Song Title list screen will be displayed, indicating all currently playing songs, regardless of category. The song title data is listed in ascending order. 3. -
Page 17: Presetting Channels
Presetting Channels Your XACT Stream | jockey II satellite radio allows you to preset 18 channels. This design enables you to directly select between 6 different bands of preset channels (identified as A, B, C, D, E and F). Each band contains 3 specific channels (indicated as A-1, A-2, A-3...F-1, F-2 and F-3). -
Page 18: Searching For A Preset Channel/Artist/Song
Searching for a Preset Channel/Artist/Song 1. Press and hold the button while in Normal Operation mode. The screen will switch between the Normal Operation mode and the Preset Tuning mode. 2. Press and hold the button until the Preset Channel list pops up. 3. -
Page 19: S-Seek Function Memo (Memory Search) Button
S-Seek Function_MEMO (Memory Search) Button When in this mode, you can activate the memory search function. This will instruct your satellite radio to search the current incoming SIRIUS To Store the Information Under the Normal Operation mode or the Preset Tuning mode, press the data information is recorded in memory and the capacity status is displayed. - Page 20 What If the Program Storage is Full? If the Program Storage is full, a “Memory Full” message will pop up on the screen for a moment, followed by a “Replace” or “Cancel” message. 1. Under Normal Operation mode or in Preset Tuning mode, press the Artist Memory Full Song...
-
Page 21: Performing S-Seek Function
Performing the S-Seek Function Whenever you turn your satellite radio on, it automatically searches the incoming signal to determine if a match exits between the signal and the artist/composers or song titles that you have recorded in memory (except when S-Seek is set to Off). 1. -
Page 22: Menu Options Settings
MENU OPTIONS The following options are included on the Menu Options list: • SIRIUS ® • Display Settings • FM Transmitter • Channel Add/Skip • Lock Options BASIC SETTING 1. Press the button. The Menu Options list is displayed on the screen. 2. -
Page 23: Display Settings
Display Settings The following adjustments can be made: • Brightness Control • Contrast Control Brightness Control: A 10-segment horizontal bar graph is displayed. Move the button to adjust the dimming control function accordingly. By pressing the action, you will return to the Menu Operations list. Contrast Control: A 10-segment horizontal bar graph is displayed. -
Page 24: Fm Transmitter
FM Transmitter The following adjustments can be made: • Frequency • FM On/Off Frequency: enables you to select any one of the pre-programmed FM channels. Press the select a desired channel, then press the button. FM On/Off: To activate/deactivate the FM transmitter. Menu Options Sirius ID Display Settings... -
Page 25: Channel Add/Skip
Channel Add/Skip You can add or skip new/unwanted channels while tuning. When you enter this option, a channel list is displayed, and the current channel playing will be highlighted. Press the button to navigate the list and highlight the channel you want to skip, then press the button to confirm the setting. - Page 26 Lock/Unlock: When using Lock/Unlock for the first time, you are asked to type in the 4-digit code that is used to Lock/Unlock the channel access. Press the “0” button four times to enter the default Access Code: 0000 Thereafter, each time you enter this mode, a channel list will be displayed and the currently playing channel will be highlighted.
-
Page 27: Audio Level
2. Enter the numbers for your new access code by using the The confirmation screen will then be displayed. 3. Enter the numbers for your new access code again by using Your new access password is now modified. Audio Level Your plug and play satellite radio enables you to adjust audio level. -
Page 28: Antenna Aiming
Antenna Aiming Note: This adjustment setting is required only when you use your device at home. This way, you can assure optimum reception when mounting your SIRIUS Upon entering this option, two 10-segment horizontal bar graphs are displayed with a (-) sign to the left and a (+) sign to the right. -
Page 29: Memory Options
Memory Options In this mode, you can activate or deactivate the Memory Search Function (S-Seek). You can also remove all of the 18 memory locations. The following adjustments can be made: • Auto Memory Search • Clear All Auto Memory Search: Press the implement the setting. -
Page 30: Time Features
Clear All: Press the button to select either “Yes” or “No”. The message “Are You Sure?” will pop up on the screen. Press the Yes: will REMOVE all recorded channels. No: will CANCEL the deletion. Time Features The following adjustments can be made: •... -
Page 31: Clock
Clock: This option enables you to set up the time to be displayed on the screen. Time is kept directly by the SIRIUS ® satellite and is transmitted in GMT FORMAT. Format: Press the button to select either the “12 Hour” (default) or the “24 Hour” mode, then press the button to confirm the setting. -
Page 32: Daylight Saving Time
Daylight Saving Time (DST): Activate this option if your area is subject to DST. Press the select “DST Observed” (default) or “DST Not Observed” setting. Then press the setting. Alarm Clock: You can set your plug and play satellite radio to turn on at a selected time. Set Alarm: Press the button to select either the “On”... -
Page 33: Program Alert
Program Alert: This option allows your XACT Stream | jockey II plug and play satellite radio to tune itself to a pre-selected channel at a pre-selected time. Note: To use your programmed setting, make sure to set “Program Alert” to “Program Alert On”. The following settings can be made in this sub-menu screen: •... -
Page 34: Channel Selection
Day: Press the to navigate the day: Monday, Tuesday, Wednesday, Thursday, Friday, Saturday, Daily or Sunday. Press the button to confirm the setting. Channel Selection: Press the preference. Press the button to confirm the setting. Program Alert: Press the the setting. Auto Shutdown: This option will automatically turn your satellite radio off after an hour of inactivity. -
Page 35: Sleep Mode
Sleep Mode: When entering this mode, you can program your XACT Stream | jockey II satellite radio to shutdown after a pre-selected period of time. The following adjustments can be made: Off (default) 15 min. 30 min. 45 min. 60 min. Press the button to select the time. - Page 36 Items revert to their original factory settings as follows: All Presets revert to empty Display Dimming to 70% Display Contrast to 50% FM Transmitter to “On” Audio Output Level to 70% Access to all skipped streams restored Memory Search On Memory locations will be erased 12-Hour Clock Format Eastern time zone...
-
Page 37: Display Messages
DISPLAY MESSAGES Acquiring Signal When the audio signal is lost, a pop-up window with the message “Acquiring Signal” is displayed until the signal is recovered. Antenna Not Detected When no antenna is detected and the signal is lost, a pop-up window with the message “Antenna Not Detected”... - Page 38 Subscription Updated When a subscription update (PSV) from the SIRIUS message “Subscription Updated Anykey to Continue” is displayed for at least 3 seconds. Mute A single press of the “Mute” button will temporarily disable all analog and digital outputs from your device. Use your remote control to implement this operation.
-
Page 39: Problem Solving
PROBLEM Problem Solving Section For your assistance, we have listed a few common problems below. The Satellite Receiver does not work. Please check the Power Cables. Make sure you have contacted SIRIUS subscription 1-888-539-SIRIUS (7474). I have no sound from my Satellite Receiver. Check the audio cables and make sure they are plugged in correctly. -
Page 40: Warranty
WARRANTY W W a a r r r r a a n n t t y y I I n n f f o o r r m m a a t t i i o o n n X X A A C C T T C C o o m m m m u u n n i i c c a a t t i i o o n n One-Year Limited Warranty This limited warranty sets forth all XACT Communication responsibilities regarding your product. - Page 41 WARRANTY W W h h a a t t T T o o D D o o f f o o r r W W a a r r r r a a n n t t y y S S e e r r v v i i c c e e During the first thirty (30) days, a defective product is eligible for over-the-counter exchange at the retailer from whom it was purchased.
- Page 42 NOTES...
- Page 43 NOTES...
- Page 44 To activate your Satellite Radio Receiver or for latest news and questions regarding SIRIUS ® Satellite Radio service visit sirius.com call 1-888-539-SIRIUS (7474). Call Toll Free 1-866-466-XACT (9228) or Visit our Website: www.getxact.com...
