Manual TITAN Display Lifting System 1. Preamble The TITAN Lifter has been developed and manufactured with the highest care and attention. However, improper handling can cause a risk for safety and / or damage. Read these instructions carefully before handling and installing the product so that you can safely enjoy your device.
Manual TITAN Display Lifting System 2. Safety instructions 2.1 Warnings This manual must be handed over to the persons who install and operate the product. Please read the manual and all instruction carefully. If you ignore the safety instructions in this manual, humans may be seriously injured or there is a possibility of an accident or death.
Page 5
Contact your vendor if you are in the need of support. • Never install displays to the TITAN Lift that are not validated and certified by the manufacturer. • If smoke can be smelled/detected or if you hear a strange sound or anything else that is uncommon disconnect the device from mains power.
Page 6
• Set up the TITAN Lift and the installed display in an open area so that air intake and outlet are free to ensure a safe and good functionality. If ventilation is not working correctly fire can break out due to internal heat.
Wear appropriate safety shoes, gloves and helmet. • When the TITAN Lifter is lifting up from its case or when the screen is rotating, be careful not to catch the upper and lower limbs between the moving parts and especially underneath the base plate.
Page 8
Electrical devices should be tested in regular time frames depending on local laws and regulations. TITAN Lift is a device of protection class 1 and requires a protective grounding and may only be connected to circuits that are protected by a Residual Current Device (RCD).
Manual TITAN Display Lifting System 3. Scope of delivery Note: Please check the delivery for completeness and damage immediately after you receive the shipment. Please contact your vendor in case of missing or damaged parts. Item quantity Manual Remote control wired Power cable IEC-320-C13 4.
Manual TITAN Display Lifting System 4.2 VESA Adapter VESA Adapter Model Number: TITAN-VESA-01 Optional accessory used to mount displays with different VESA standards. For more information refer to the TITAN-VESA-01 manual Figure 2 VESA Adapter 4.3 Lifting eye bolts 2x Lifting eye bolts...
5. Description of the product 5.1 Intended use The TITAN Display Lifting System is a professional product for easy transport and set-up of display units. It combines a mobile lifting solution with a display unit and a transport flightcase. The lifting mechanism as well as the rotating mechanism have only a functional purpose and are not intended to be used for entertaining purposes.
The flightcase is a very robust, rollable transport box. It has two main cover hoods that need to removed when setting up the TITAN Lift. It has 8 wheels which can be locked individually. The dimensions and the weight differ, depending on the size of the installed display unit.

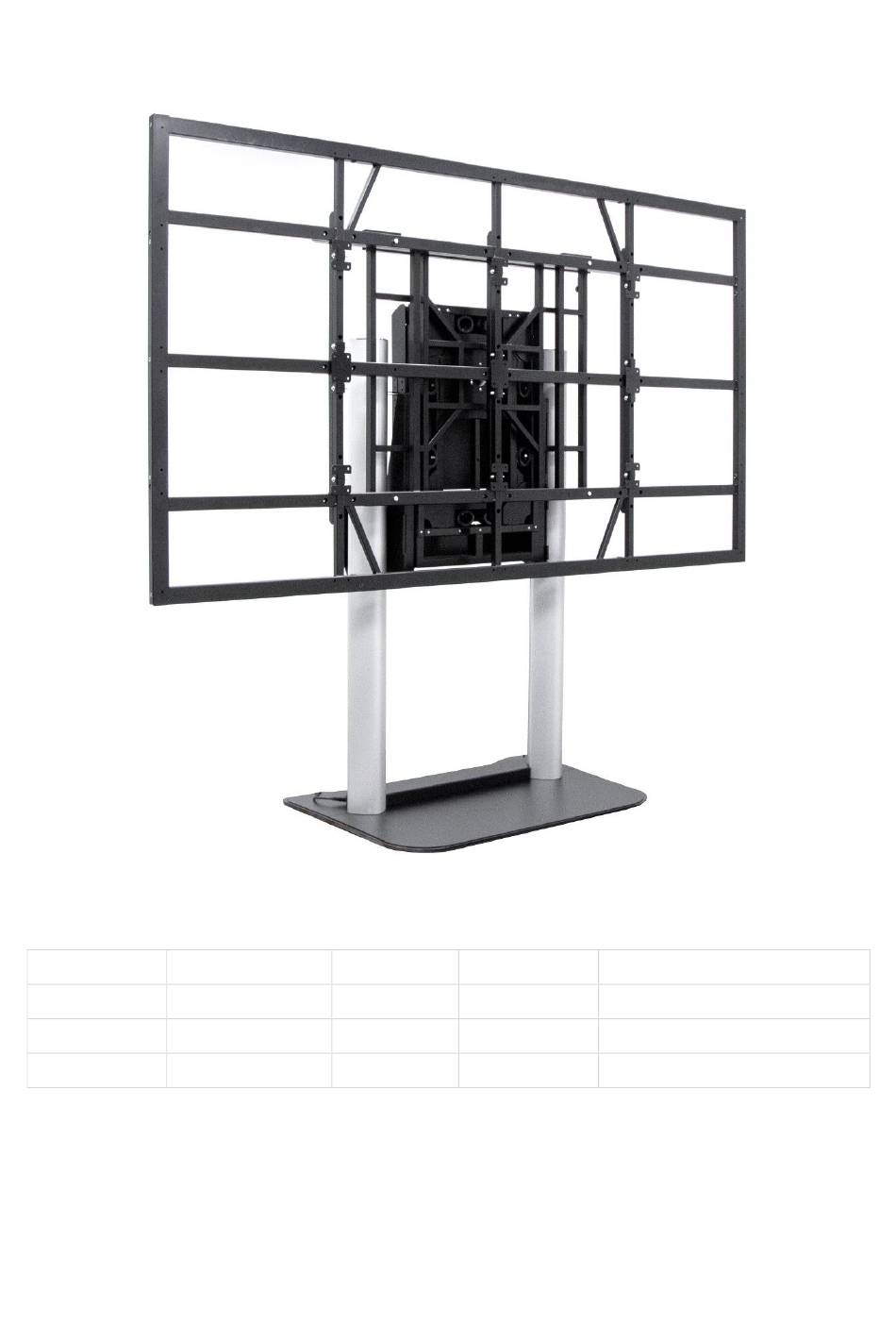

5.3.2 TITAN Base Unit The TITAN Base Unit is the core and the main component of the system. It carries the display unit and has the capability to lift and to lower the display unit and also to rotate it to a 90⁰ angle.
Page 14
Manual TITAN Display Lifting System Figure 5 TITAN Base unit. Back isometric view 12.11.2020 Page 14 of 37...
Manual TITAN Display Lifting System 5.3.3 Display unit Standard Display units that are designed to be mounted on the TITAN Base are the fLED screen 108” and fLED screen 136”. Other custom displays can be also mounted on the TITAN Base, for more information please access the www.exactsolutions.de...
Additional people may have to be included in the installation or handling process. For a safe and secure installation of a display unit to the TITAN Lift, a suitable tool (for example lifting crane) is necessary. In rare situations the TITAN Base Unit might request a reset drive. Such a situation can be caused when for example the power supply is interrupted while the system is driving up or down.
6.2 Flightcase 6.2.1 Opening the flightcase Move the TITAN Display Lift to the desired position. Secure the wheels by locking the brakes. Remove the two cover hoods of the flightcase one by one. To do so, open the butterfly latches only of one hood.
Manual TITAN Display Lifting System 6.2.2 Unloading the TITAN Lift out of the flightcase Remove the small back cover part of the flight case on the lower backside. Figure 10 Removing back cover Connect the wired remote control as well as the power cable to the control box.
Page 19
Manual TITAN Display Lifting System When moving the lift up or down make sure not to clamp body parts of persons, cables or anything else. Only use the lift when no person is in the near proximity. When lowering the base plate make sure that the area beneath is clean and flat.
Page 20
As soon as the display is completely out of the locking pins (as shown in Figure 15), gently move the bottom part of the flight case away from the columns of the TITAN Lift. Figure 16 Removing bottom part of flightcase Use the wired remote control and the “arrow up”...
Manual TITAN Display Lifting System 6.2.3 Rotating the display unit Make sure not to clamp body parts of persons, cables or anything else when rotating the display unit. Make sure cables are long enough when rotating the display. Only use the rotation mechanism when no person is in the near proximity.
Page 22
Manual TITAN Display Lifting System Carefully rotate the display unit. Make sure only to grab robust parts of the display unit to rotate Note: The process of rotating the display should be done without the need of force. It should rotate easily. If this is not the case, check if the two wing nuts are unscrewed.
As soon as the display is high enough, gently move the bottom part of the flightcase towards the columns of the TITAN Lift so that the corresponding part of the flightcase touches the columns of the TITAN Lift.
Page 24
Figure 25 The Display resting surface inside the case The base plate of the TITAN Lift will now move upwards and touch the lower side of the flightcase. The base plate will gently compress damping elements that are mounted on the lower side of the flightcase.
Page 25
Manual TITAN Display Lifting System Figure 26 Base plate gently compresses damping elements (marked in red) Remove the connected cables. Install the small back cover part of the flight case on the lower backside. Figure 27 Install back cover 12.11.2020...
Manual TITAN Display Lifting System 6.2.5 Closing the flightcase Secure the wheels by locking the brakes. Install the two cover hoods of the flightcase one by one. Close all latches. Figure 28 Closing the flightcase 12.11.2020 Page 26 of 37...
WARNING: If not handled properly, the risk of clamping the upper and lower limbs between the TITAN Base and the screen can occur. Make sure no persons are near the back of the TITAN Display Unit and the front of the Base Unit. Figure 29 Mounting the Display unit 12.11.2020...
Page 28
Now secure the Display unit with the two small square pipes. To secure the pipes, please fasten them by using the four M8x20 screws and the corresponding 8,2 mm washers. See also Figure If this step is not correctly executed, the Display unit can fall out of the TITAN Base when the Display unit is rotated.
Page 29
Manual TITAN Display Lifting System Figure 31 Correct position of the mounting screw in its corresponding hole Figure 32 Securing the Display unit with the square pipes 12.11.2020 Page 29 of 37...
TITAN Base and the screen can occur. Make sure no persons are near the back of the TITAN Display Unit and the front of the Base Unit. Rotate the display unit back to landscape orientation (0° rotation) (6.2.3 Rotating the display unit).
Page 31
Stop the process if the hanging screws are not sliding smoothly out of the corresponding holes. In this case contact the manufacturer or your vendor. As soon as the four mounting screws are no longer attached to the TITAN Base Units, carefully move the Display unit away from the TITAN Base.
The TITAN lift has no Check that the power supply cable is plugged in (see 6.2.2 power. Unloading the TITAN Lift out of the flightcase). The wired remote control Check if the power cable is connected to a power source.
Manual TITAN Display Lifting System 7. Maintenance Flightcase: Clean with pure water with the help of a soft cloth. If needed, add some amount of neutral cleaning liquid to the water. TITAN Lift: Clean with the help of a soft cloth.
