BEINAT SC100 Manual

Solar Panels control "Solar Control" SC100 / 3

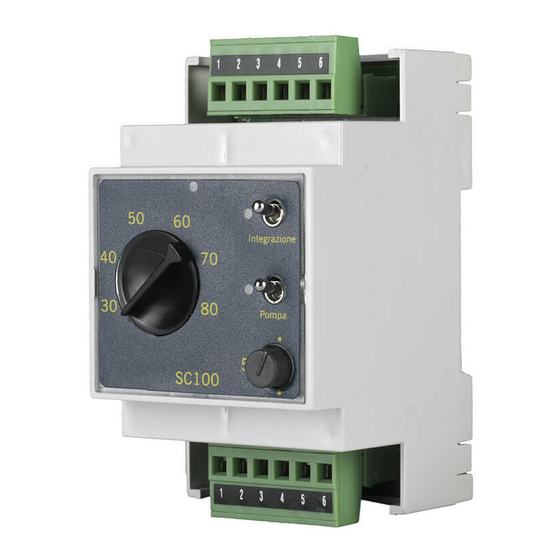

The thermostat is an electronic instrument based on BEINAT's many years of experience in temperature
control.
This device allows maintaining precise control of the temperature of the solar panels connected to the boiler's
sanitary hot water.
It detects the boiler water temperature through the 3 provided sensors and compares it with the solar panels
fluid.
When the panels temperature is higher than the boiler's water, the control unit starts the pump allowing thermal
exchange between panels and boiler.
Its second main function is to use a supplementary source of heat when the temperature is lower than the set
integration temperature.
In order to ensure a perfect thermal exchange, the device is fitted with a "delta T" temperature differential that
varies from 1 to 9°C, and can be regulated using the knob on the thermostat front panel.
Thanks to the 3-module Omega-type format, you can build several systems exploiting the modularity of the
DIN rail in the previously set electrical panels.
Important: Assembly / maintenance of the appliance must be carried out by qualified personnel
and in accordance with applicable laws and regulations.
The manufacturer assumes no responsibility for the use of products that have to comply with
particular environmental and / or installation standards.
Important note
Before connecting the equipment, it is recommended that you read the instruction manual
carefully and keep it for future reference. It is also recommended to perform the electrical
connections correctly as per enclosed drawings, observing the instructions and the Standards.
N.B. Refer to the documentation in all cases where the symbol is on the side

Installation
and user guide
I N S TA LL I N S A F E
AREA, NO ATEX
Electric connections also available on
Belonging to
CONFORMITY
EN 61010-1
DM 01/02/1986
