Trane BAYWACC11SC1AA Installer's Manual

Hide thumbs Also See for BAYWACC11SC1AA:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
INSTALLER'S
GUIDE
ALL phases of this installation must comply with
NATIONAL, STATE AND LOCAL CODES
Model:
BAYWACC11SC1AA
IMPORTANT - This Document is customer property and is to remain with this unit. Please return to service information
pack upon completion of work.

Table of Contents

Section 1. Safety Considerations.........................2
Section 2. General Information ............................3
Section 3. Hydronic Coil Assembly .....................4
Section 4. Install Hydronic Coil ............................5
Section 5. Piping ....................................................6
Section 6. Tables ...................................................7
Section 7. Ducting .................................................7
Section 8. Field Wiring Diagrams .........................8
18-GJ37D1-6A-EN
Top Mount Hydronic
Coil Accessory
Fits Hyperion
and ForeFront
TM
Air Handler models
TM

Advertisement

loading

Related Manuals for Trane BAYWACC11SC1AA

Summary of Contents for Trane BAYWACC11SC1AA

  • Page 1: Table Of Contents

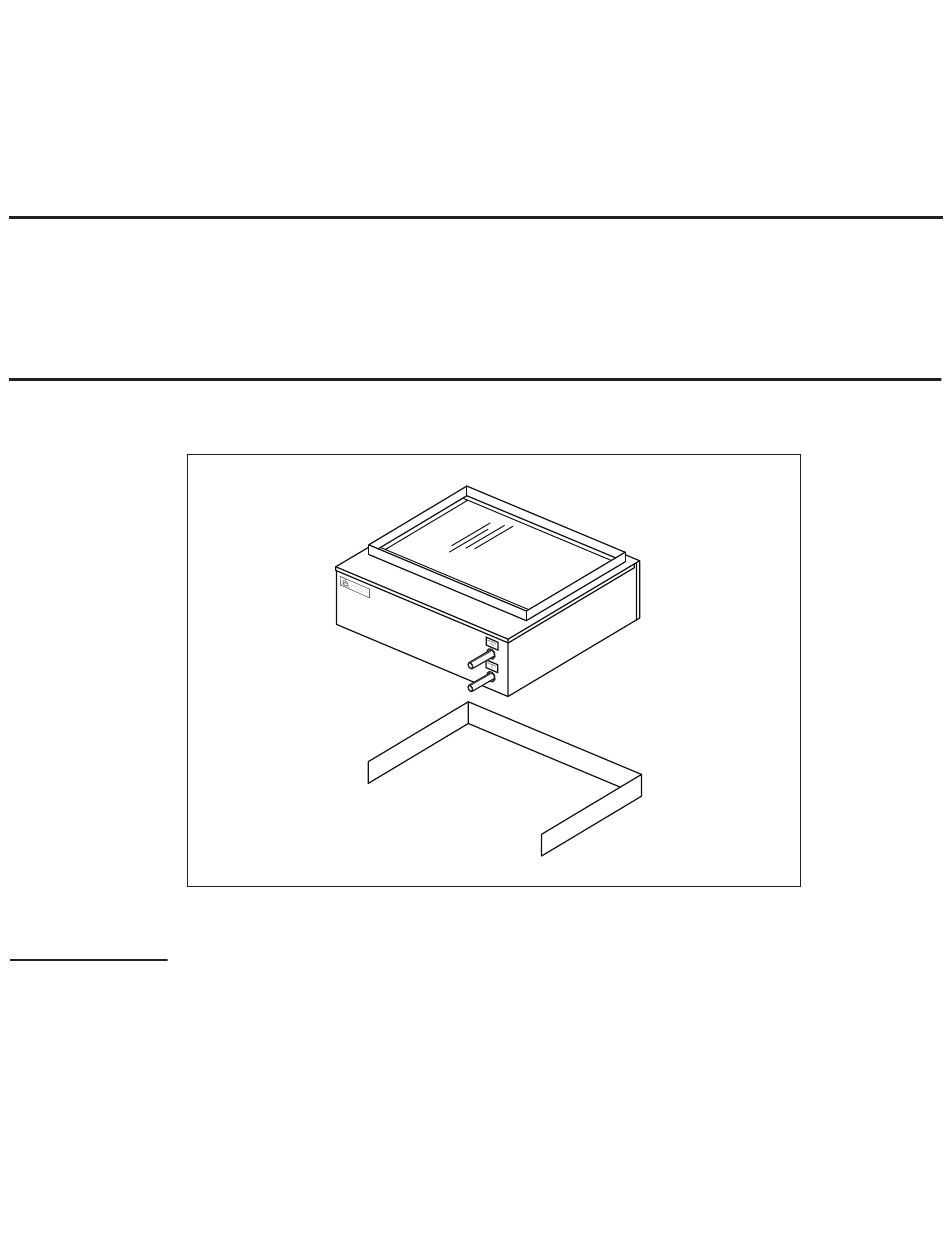

    GUIDE ALL phases of this installation must comply with NATIONAL, STATE AND LOCAL CODES Top Mount Hydronic Model: BAYWACC11SC1AA Coil Accessory Fits Hyperion and ForeFront Air Handler models IMPORTANT — This Document is customer property and is to remain with this unit. Please return to service information pack upon completion of work.

  • Page 2: Section 1. Safety Considerations

    INSTALLER'S GUIDE Section 1. Safety Considerations WARNING HIGH PRESSURE HAZARD! IMPORTANT: Read this manual carefully before attempting to install, operate, or perform maintenance on this hydronic coil. Installation, MAXIMUM ENTERING WATER TEMPERATURE IS 180°F. WATER service, and maintenance should be performed by qualified technicians TEMPERATURES EXCEEDING 180°F COULD CAUSE A HIGH only.

  • Page 3: Section 2. General Information

    INSTALLER'S GUIDE Section 2. General Information IMPORTANT - Follow all National and local codes when NOTE - The hydronic coil can be installed in upflow, down- installing this hydronic coil. flow, or horizontal positions. When the air handler is installed in the horizontal orientation, an additional strap must be used This accessory hydronic coil is designed to deliver primary or on the coil section.

  • Page 4: Section 3. Hydronic Coil Assembly

    INSTALLER'S GUIDE Section 3. Hydronic Coil Assembly Field Pipe Connections: 7/8" OD, 3/4" ID, copper tubing 21-5/8" 18" 3/4" Hydronic Coil 7-1/4" 12 Field Provided Screws, 1/2" long 23-1/2" 21-13/16" Coil Attachment Flange Gasket material Page 4...

  • Page 5: Section 4. Install Hydronic Coil

    INSTALLER'S GUIDE Section 4. Install Hydronic Coil STEP 1 - Place the hydronic coil with the supply side facing down. Apply gasket material onto the coil flanges. On the front flange, the gasket material must be at the inner edge to create an airtight seal. Gasket Place gasket material on the inner edge of...

  • Page 6: Section 5. Piping

    INSTALLER'S GUIDE STEP 4 - Attach flange to air handler and coil. Using field supplied screws, attach the coil attachment Four screws Minimum per side flange to the air handler and the coil. Use four screws minimum per side. Recommended screw length is 1/2" long. NOTE - The hydronic coil can be installed in upflow, downflow, or horizontal positions.

  • Page 7: Section 6. Tables

    INSTALLER'S GUIDE Section 6. Performance Tables BAYWACC11SC1AAA Entering Air Temperature 70°F db, 60°F wb  Airside Pressure  120°F Entering Water Temp 150°F Entering Water Temp 180°F Entering Water Temp SCFM Drop, "W.C. Total Capacity, BTUH Leaving Air Temp, °F Total Capacity, BTUH Leaving Air Temp, °F Total Capacity, BTUH Leaving Air Temp, °F 22584 37898 52052 1050 0.12 26957 44659 60251 28861 47528 66048 24485 41011 56072 1200 0.15 29226 48327 64905 31291 51432 71149 26736...

  • Page 8: Section 8. Field Wiring Diagrams

    Example: 4T outdoor unit x 400 HP Heating cfm/ton = 1600 About Trane and American Standard Heating and Air Conditioning Trane and American Standard create comfortable, energy efficient indoor environments for residential applications. For more information, please visit www.trane.com or www.americanstandardair.com ®...
