Summary of Contents for Lantronix SI-IES-1200-LRT

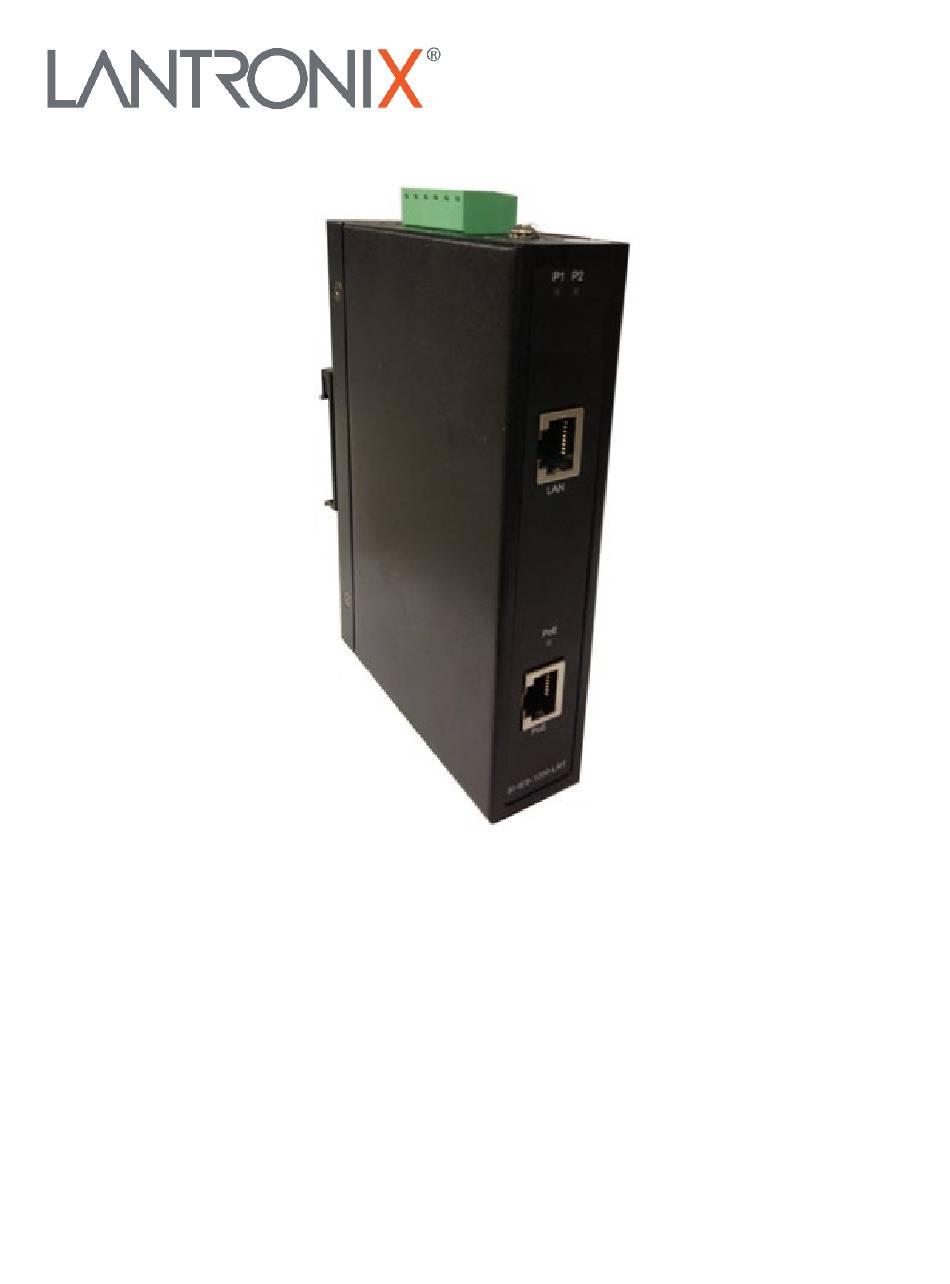

- Page 1 SI-IES-1200-LRT Hardened Gigabit PoE/PoE+ Injector User Guide Part Number 33586 Revision F June 2022...
- Page 2 SI-IES-1200-LRT User Manual Intellectual Property © 2021 Lantronix, Inc. All rights reserved. No part of the contents of this publication may be transmitted or reproduced in any form or by any means without the written permission of Lantronix. Lantronix is a registered trademark of Lantronix, Inc. in the United States and other countries.
-
Page 3: Fcc Warning
Lantronix SI-IES-1200-LRT User Manual FCC Warning This Equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 4: Table Of Contents
Lantronix SI-IES-1200-LRT User Manual Table of Contents FCC Warning ............................3 CE Mark Warning ............................3 Overview ..............................5 Product Description ........................... 5 Features ..............................5 Specifications ............................6 Packing List ............................... 6 ....................6 Optional Accessories (sold separately) Hardware Description ..........................7 Dimensions.............................. -
Page 5: Overview
SI-IES-1200-LRT User Manual Overview The SI-IES-1200-LRT is an unmanaged hardened PoE+ injector that adds up to 30 Watts of power on a network segment. Injectors are commonly used to power PoE devices in locations where a power source does not exist. The injector has redundant input power connections, and a fault alarm relay to ensure safe reliable operation in temperatures between -40°C and +75°C. -
Page 6: Specifications
Lantronix SI-IES-1200-LRT User Manual Specifications IEEE802.3 10BASE-T and IEEE802.3u 100BASE-TX IEEE802.3ab 1000Base-T Standards IEEE802.3af/at Power over Ethernet. Compliant with 802.3at in Environment A when using an isolated power supply. LAN port: Data/Signal pins 1, 2, 3, 6 PoE port: Data/Signal pins 1, 2, 3, 6... -
Page 7: Hardware Description
Lantronix SI-IES-1200-LRT User Manual Hardware Description Dimensions The Power over Ethernet Injector dimensions are: Width: 1.2” [30 mm] x Depth: 3.7” [95 mm] x Height: 5.5” [140 mm] Page 7 of 19 33586 Rev. F https://www.lantronix.com/... -
Page 8: Front Panel
P1 & P2: The LED indicators light when their respective power inputs are active. PoE: This LED indicator lights when PoE power is being delivered. Top View The SI-IES-1200-LRT is designed with two redundant power inputs which allows you to supply redundant input power in the range of 24 to 48V. Power Inputs Grounding the PoE Injector Follow the instructions below to attach the PoE Injector to ground. -
Page 9: Wiring The Power Inputs
48 to 51VDC, so you do not need to adjust input voltage above 48VDC in order to meet IEEE802.3at PoE+ spec. The SI-IES-1200-LRT provides 51VDC with 600mA to the PD, which meets the IEEE802.3at spec. So even you have the input to the SI-IES-1200-LRT set to 48VDC, the POE port output always provides 51VDC. Page 9 of 19 33586 Rev. -
Page 10: Rj-45 Pin Assignments
Lantronix SI-IES-1200-LRT User Manual RJ-45 Pin Assignments The UTP/STP ports will automatically sense for Fast Ethernet (10Base-T/100Base-TX) or Gigabit Ethernet (10Base-T/100Base-TX/1000Base-T) connection. Auto MDI/MDIX means that the port can connect to another switch or workstation without changing straight through or crossover cabling. See the figures below for straight through and crossover cable schema. -
Page 11: 10/100Base-Tx Cable Schema
Lantronix SI-IES-1200-LRT User Manual 10/100Base-TX Cable Schema 10/100/1000Base-T Pinouts The table below describes the gigabit Ethernet RJ-45 pinouts. Pin # Signal Name Description BI_DA+ Bi-directional pair A+ BI_DA- Bi-directional pair A- BI_DB+ Bi-directional pair B+ BI_DC+ Bi-directional pair C+ BI_DC-... -
Page 12: 10/100/1000Base-T Cable Schema
Lantronix SI-IES-1200-LRT User Manual 10/100/1000Base-T Cable Schema The following two figures illustrate the 10/100/1000Base-T cable schema. Page 12 of 19 33586 Rev. F https://www.lantronix.com/... -
Page 13: Power Supply Specifications
Lantronix SI-IES-1200-LRT User Manual Power Supply Specifications Power supply option 25130 specs are provided below (subject to change). This power supply provides the isolation recommended for Environment A. 25130 Features and Specifications Features Variable AC input range • Protected against Overload and Over Voltage •... -
Page 14: 25130 Dimensions
Lantronix SI-IES-1200-LRT User Manual 25130 Dimensions Width: 1.57” [40 mm] • Depth: 3.94” [100 mm] • Height: 3.54” [90 mm] • Page 14 of 19 33586 Rev. F https://www.lantronix.com/... -
Page 15: Installation
Lantronix SI-IES-1200-LRT User Manual Installation DIN-Rail Mounting Assembling the DIN-Rail Clip The DIN-Rail clip is screwed on the device at the factory. If not, refer to the following steps and figure to secure the DIN-Rail clip on the device. 1. Use the screws to secure the DIN-Rail clip at the rear of the device. -
Page 16: Mounting The Poe Injector (Din-Rail)
Lantronix SI-IES-1200-LRT User Manual Mounting the PoE Injector (DIN-Rail) Follow the steps below to hang the device on a standard DIN rail. 1. Position the rear side of the device directly in front of the DIN rail. Make sure the top of the clip hooks over the top of the DIN rail. -
Page 17: Wall-Mount Plate Mounting
Lantronix SI-IES-1200-LRT User Manual Wall-Mount Plate Mounting Follow the steps below to mount the device with the wall-mount plates. 1. To remove the DIN-Rail clip from the device, unscrew the screws that secure it. 2. Align the screw holes of the wall-mount plates with the ones of the device. -
Page 18: Troubleshooting
Manufacture’s Address: 7535 Irvine Center Drive, Suite 100, Irvine, California 92618 This declaration of conformity is issued under the sole responsibility of the manufacturer. SI-IES-1200-LRT is in conformity with the relevant Union harmonization legislation: EN 61000-6-4: 2007 EN 61000-6-2: 2005... - Page 19 Toll Free: 800-526-8766 Phone: 949-453-3990 Fax: 949-453-3995 Technical Support https://www.lantronix.com/technical-support/ Online: Sales Offices For a current list of our domestic and international sales offices, go to the Lantronix web site at www.lantronix.com/about/contact. Page 19 of 19 33586 Rev. F https://www.lantronix.com/...
