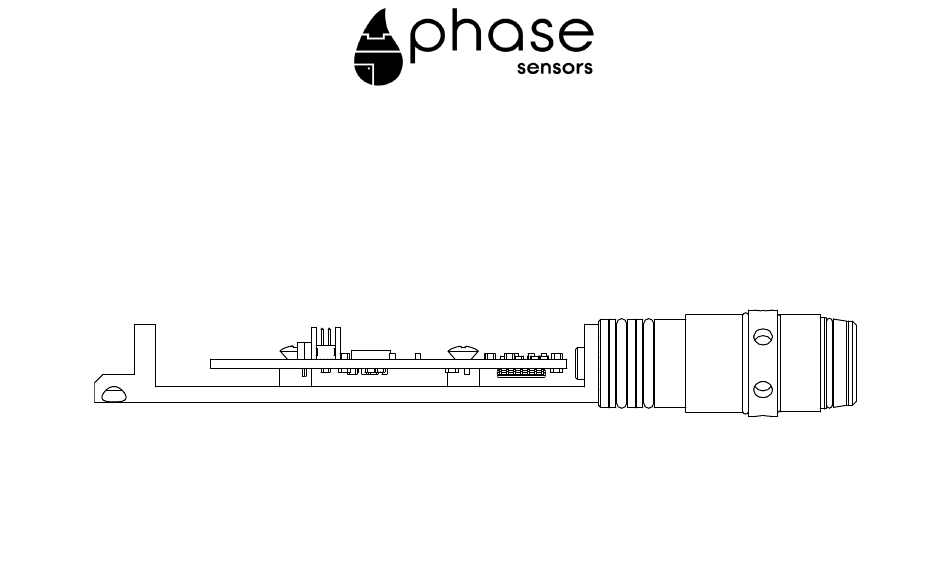

  • Page 1 XtalX DDQS1 Quartz Pressure Transducer Mechanical User Manual www.phasesensors.com...
  • Page 2 XtalX DDSQ1 Quartz Pressure Transducer Mechanical User Manual ©COPYRIGHT PHASE ADVANCED SENSOR SYSTEMS CORP. 4-016 National Institute for Nanotechnology 11421 Saskatchewan Drive Edmonton, AB, T6G 2M9 TELEPHONE: (780) 264-2659 JANUARY, 2022...
  • Page 3: Table Of Contents

    PAGE MECHANICAL INSTRUCTIONS 1.1 Process Fluid Fitting .......................... 1.2 Consumables ............................1.3 Microcap Attatchment ........................XTALX DDQS1 SPECIFICATION SHEET 2.1 Specification Hightlights ....................... 2.2 Mechanical Specifications ......................2.3 Electrical Specifications ......................... 2.4 Additional Specifications ......................2.5 Life Time Expectancy Note ......................
  • Page 4: Mechanical Instructions

    Mechanical Instructions Page 3 SECTION 1 MECHANICAL INSTRUCTIONS 1.1 PROCESS FLUID FITTING When removing or attaching the microcap to the pressure sensor, follow the procedures below: Removal Use a 11/16” hex wrench on the process end fitting and a spanner wrench (McMaster PN: 5472A1) 2.
  • Page 5: Consumables

    1.2 CONSUMABLES The following 0-rings may need to be replaced during the life of the sensor: Number O-Rings Size Qty. Material Electronics Housing 1 & 3 DN-014 PEEK Back-Up Ring 2 & 4 E-H O-Ring DN-014 FFKM Process-Side O-Ring M14 x 1mm PTFE *Note: The O-rings in the above table are not compatible with acetone.
  • Page 6 Mechanical Instructions Page 5 The placement of the O-ring is shown below: Figure 1-1. Placement of O-rings...
  • Page 7: Microcap Attatchment

    1.3 MICROCAP ATTATCHMENT Heat PTFE O-ring to 100°C for easier installation of O-ring. 2. Take care to ensure the you do not touch the membrane as it is fragile. 3. Engage the threads by hand while gently pushing the process end fitting. 4.
  • Page 8: Xtalx Ddqs1 Specification Sheet

    Specification Sheet Page 7 SECTION 2 XTALX DDQS1 SPECIFICATION SHEET 2.1 SPECIFICATION HIGHLIGHTS MAX CURRENT CONSUMPTION ................ 40 mA LOW POWER STATE CURRENT DRAW 1s SAMPLE @ 25°C ..1.212 mA CALIBRATED RANGE ........ATM to 10, 000 PSI (1 to 690 BAR) LOW POWER STATE CURRENT DRAW 1s SAMPLE @ F.S TEMP..
  • Page 9: Frequency Response Note

    2.5 LIFE TIME EXPECTANTCY NOTE: Operating at extreme temperatures can and will dramatically reduce life expectancy. The expected lifetimes above were observed in a dry environment where both the electronics and pressure fittings were subject to atmosphere. XS-HTI-4 is not rated for operation beyond 175°C and 10000psi; accuracy and quality will not be guaranteed.
  • Page 10: Ddqs1-10000-150 Specification Drawing

    Specification Sheet Page 9 2.7 DDQS1-10000-150 SPECIFICATION DRAWINGS 5.32” Figure 2-1. DDQS1 Pressure Transducer Specification Drawing...
  • Page 11: Pressure Measurment Walk Through

    SECTION 3 SOFTWARE/COMMUNICATIONS SET UP 3.1 PRESSURE MEASURMENT WALK THROUGH To start interfacing with the XtalX pressure transducer begin by: Using a FTDI Serial Cable or preferably the provided TTL-232R-3V3 FTDI cable connect to the Sensor male DIP pins Pushing The brown Male pin into the Black Female port on the FTDI Cable. If there is no male header attached to the DDQS transducer, follow the following Silk Screen to FTDI color connection Matrix when soldering and or connecting to your FTDI cable.
  • Page 12 Page 11 Software/Communications 2. Once the FTDI cable has been inserted into your computer USB port make note of which COM port is added to your device manager list of ports: Ports (COM & LPT) Communications Port (COM1) USB Serial Port (COM4) The list of connections ports, where the USB Serial device, COM4, is the newly inserted FTDI cable.
  • Page 13 Click “Open” at the bottom of the putty window. 8. A Dialog box will open with the “hcout>” prompt. 9. Enter “?” to show a list of commands to give to the sensor. v - version s - serial number h - calibration header p - pressure polynomial t - temperature polynomial...
