RF160

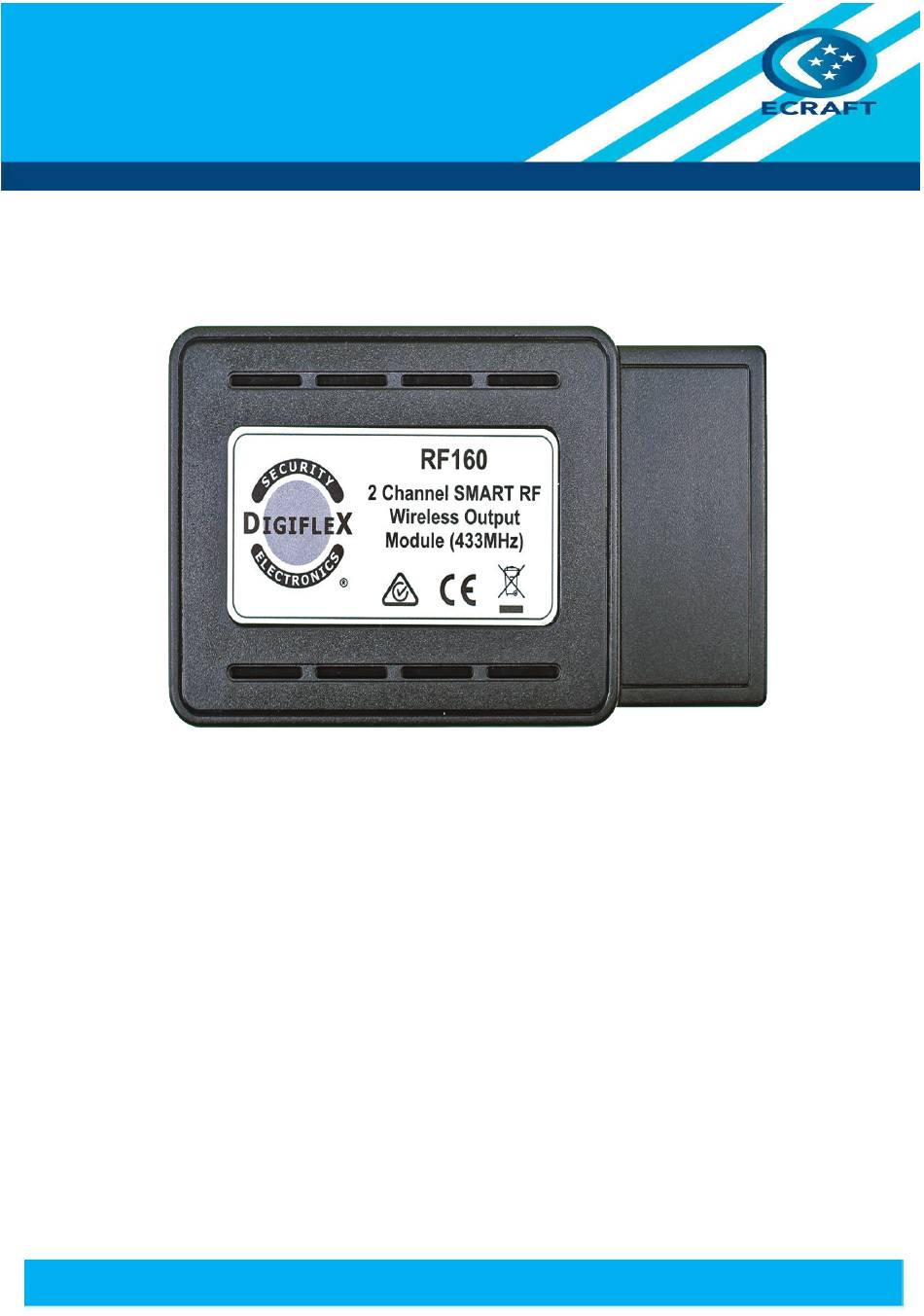

2 Channel SMART RF Wireless
Output Module - 433MHz
For more information call:
NSW: ARTARMON Unit 3, 6-8 Mclachlan Ave, Ph: 02-9438-3266 Fax: 02-9438-2924
KINGSGROVE Unit E3, 15 Forrester Rd, Ph: 02-9150-6033 Fax: 02-9150-6044
BLACKTOWN Unit 1, 36 Binney Rd Ph: 02-8811-5155 Fax: 02-9831-2139
WA: BELMONT Unit 2, 28 Belmont Avenue, Ph: 08-9478-6411 Fax: 08-9478-6422
QLD: NERANG Unit 13, 12-20 Lawrence Drive, Ph: 07-5596-5533 Fax: 07-5596-5194
Schmidt and Muller Telecommunications Pty Ltd trading as ELECTROCRAFT AUSTRALIA - ABN 79 067 000 426
Advertisement
Table of Contents
Summary of Contents for Ecraft RF160
- Page 1 Installer Reference Guide Rev 1.0 RF160 2 Channel SMART RF Wireless Output Module - 433MHz For more information call: NSW: ARTARMON Unit 3, 6-8 Mclachlan Ave, Ph: 02-9438-3266 Fax: 02-9438-2924 KINGSGROVE Unit E3, 15 Forrester Rd, Ph: 02-9150-6033 Fax: 02-9150-6044...
- Page 2 RF160 an ideal choice for controlling gates, garage The RF160 will turn on the green RX LED to indicate the doors, lights or security systems. unit is powered and it will blink off each time a signal is received.
- Page 3 Op1 External Siren Op2 Strobe Light This menu allows the installer to learn relay 1 and/or relay Op3 Smoke Sensor PWR 2 of the RF160 module to operate an output configured Press OK or MENU at the control panel.
- Page 4 RF160 and the signal strength. Receiver LED Indicators The RF160 2 Channel SMART RF Wireless Output Module includes RED and GREEN LED indicators which provide visual feedback during system operation. See Table 3 for information on the indicator colours and meanings.
- Page 5 A.C. or D.C. 9 - 28 V 3rd party device. Relay 2 terminal connections are used to connect to a 3rd party device. Figure 2: RF160 Connection Diagram Schmidt and Muller Telecommunications Pty Ltd trading as ELECTROCRAFT AUSTRALIA - ABN 79 067 000 426...
- Page 6 RF160 Housing The RF160 is housed in 3 piece plastic enclosure comprising a base plate , top cover and a terminal cover. The top cover is fixed to the base using a Phillips head screw. The top cover needs to be removed to install the wire antenna.
- Page 7 RF160 Specifications Part Number: RF160 - 2 Channel SMART RF Wireless Output Module - 433MHz Operating Voltage: 9-28V A.C. / D.C. (70mA @ 12V D.C.) Frequency: 433.42 MHz Compatability: Vision-X, Solution 6000 (V2.53.18 or higher) Dimensions: 114mm (W) 128mm (W with Mounting Tab), 62mm(D), 28mm(H) Environment: 0˚...
