- Page 1 AP-DB1223 Distant Space Static Removal Ion Bar Shanghai Anping Static Technology Co.,Ltd...
- Page 2 Suitable for electronics, optoelectronics, semiconductor and other industries Effectively solve the problems caused by static electricity Prevent adhesion of objects Prevent blockage of feeder Static removal Prevent material splash Prevent static electricity...

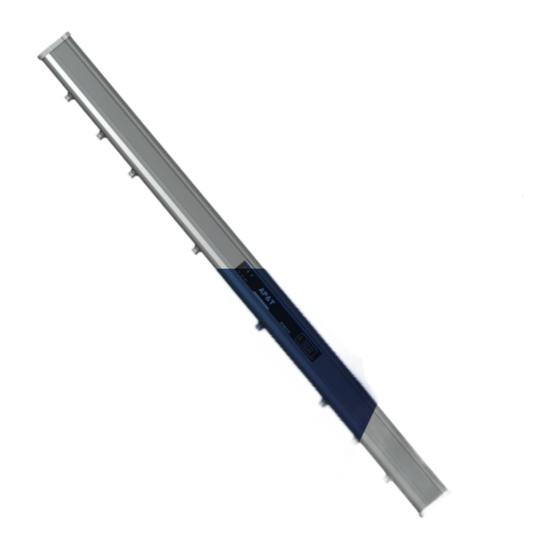

- Page 3 AP-DB1223 space ion bar is a bar-type static elimination device developed and produced by Anping Company to eliminate static electricity and maintain static balance in clean spaces, which adopts a DC high voltage power supply and a special silicon-based...
-
Page 4: Intelligent Remote Control
Intelligent Remote Control Ion balance/ion output frequency adjustable Button function instructions Function Symbol Operation instructions Unlock Unlock before adjusting operating parameters Device starts running when power is on. Press "STOP" to standby and no Run / Pause high voltage output. Press "RUN" again and the device will start working. Press CT first, then press +/- to increase or decrease the cleaning cycle. - Page 5 Intelligent Remote Control Ion balance/ion output frequency adjustable The ion balance voltage can be adjusted by adjusting the negative high voltage amplitude remotely. Increase the negative high voltage amplitude, the negative ion output increases TIME TIME Adjust ion balance voltage Reduce the negative high voltage amplitude, the negative ion output decreases TIME...
- Page 6 Pulse DC Discharge effect is better compare to power frequency AC ion bar Pulse DC VS traditional AC Positive voltage working time Pulse DC method generate ions with two polarity by （Positive high voltage） Positive pulse Negative pulse applying "+" and "-" high voltage alternately on each Pulse DC electrode needles.
- Page 7 Features Safe / Easy to use / Durable No.1 Special discharge structure design Dedicated Si electrode configuration which is suitable for the elimination of space static electricity. No.2 Working status indicator Green light: Normal work Red light: Abnormal high voltage Blue light: Infrared adjustment / pause / cleaning indication No.3...
- Page 8 Features Safe / Easy to use / Durable No.5 7 kinds of length specifications There are 7 kinds of length specifications which can meet the requirements of different ionization range and save the quantity and workload of adaptor and ion bar installed. No.6 End to end connection in series to simplify wiring...
-
Page 9: Product Use
Product Use Product details / product size / product specification Product details Status indicator Temperature and humidity sensor Power connector Coding switch Front Back Status indicator Temperature and humidity sensor Product size Unit：mm Installation slot RJ45 power/communication port Two middle electrodes' spacing is 200mm, two end electrodes' spacing is 100mm Total length of ion bar L=750 +400*n，（n=0,1,2,3,4,5,6）... -
Page 10: Product Specification
Product specification Model AP-DB1223 Input voltage DC 24V Power ＜ 5.5W Working voltage ±10KV-15KV Ion emission Pulse DC Emitter electrode 0.01，0.03，0.05，0.07，0.1，0.3，0.5，0.7，1，3，5Hz； ex-work setting：5Hz，parameters can be adjusted by coding switch or remote control. Output frequency The ion balance has been calibrated at the factory which can be adjusted again with a charge plate tester by selecting the appropriate operating frequency according to the on-site usage. - Page 11 The port wiring information is shown in the best static discharge position and install the bar body the table below. and the supporting power supply firmly. AP-DB1223 coding switch Network port cable function information Orange +24VDC 0：Pause / modify address 1：0.01HZ...
-
Page 12: Installation Position
Installation position 1) Place the ion bar in the working area where static electricity is to be eliminated and the installation angle is perpendicular to the surface of the charged body. 2) Ion bar should be at least 10cm away from the metal conductor and metal grounding body around the electrode and the bar body must be reliably connected to the ground wire. -
Page 13: Troubleshooting
Safety warning 1. Please read the instruction manual carefully before installing and using this equipment. 2. The whole set of equipment must be reliably grounded during use, otherwise it is easy to cause abnormality or even damage to the ion bar. 3. - Page 14 It can be used only after the electrical performance index is normal. After-sales service AP-DB1223 space ion bar has undergone rigorous testing and aging treatment before ex-work. Its performance has completely reached the relevant indicators marked in the usage instruction.
