User Guide For CT Series
1. Features
• Support COTEK Programmable Series power supply (Excluding AK & AEK-3000 ORing Series)
• Support max. 8 units parallel control function
• Support RS232/485 protocol
• Easy installation for parallel control.
2. Specification
• Input Voltage: 5Vdc
• Operating Temperature Range: -10℃ ~ 60℃
• Storage Temperature Range: - 30℃ ~ 70℃
• Baud rate: 4800, N, 8, 1
• Connector: DB-9F fo RS232, RJ-11 (6P4C) for RS485
• Optical Isolation: I/P - O/P: 2500Vac rms for 1 minute

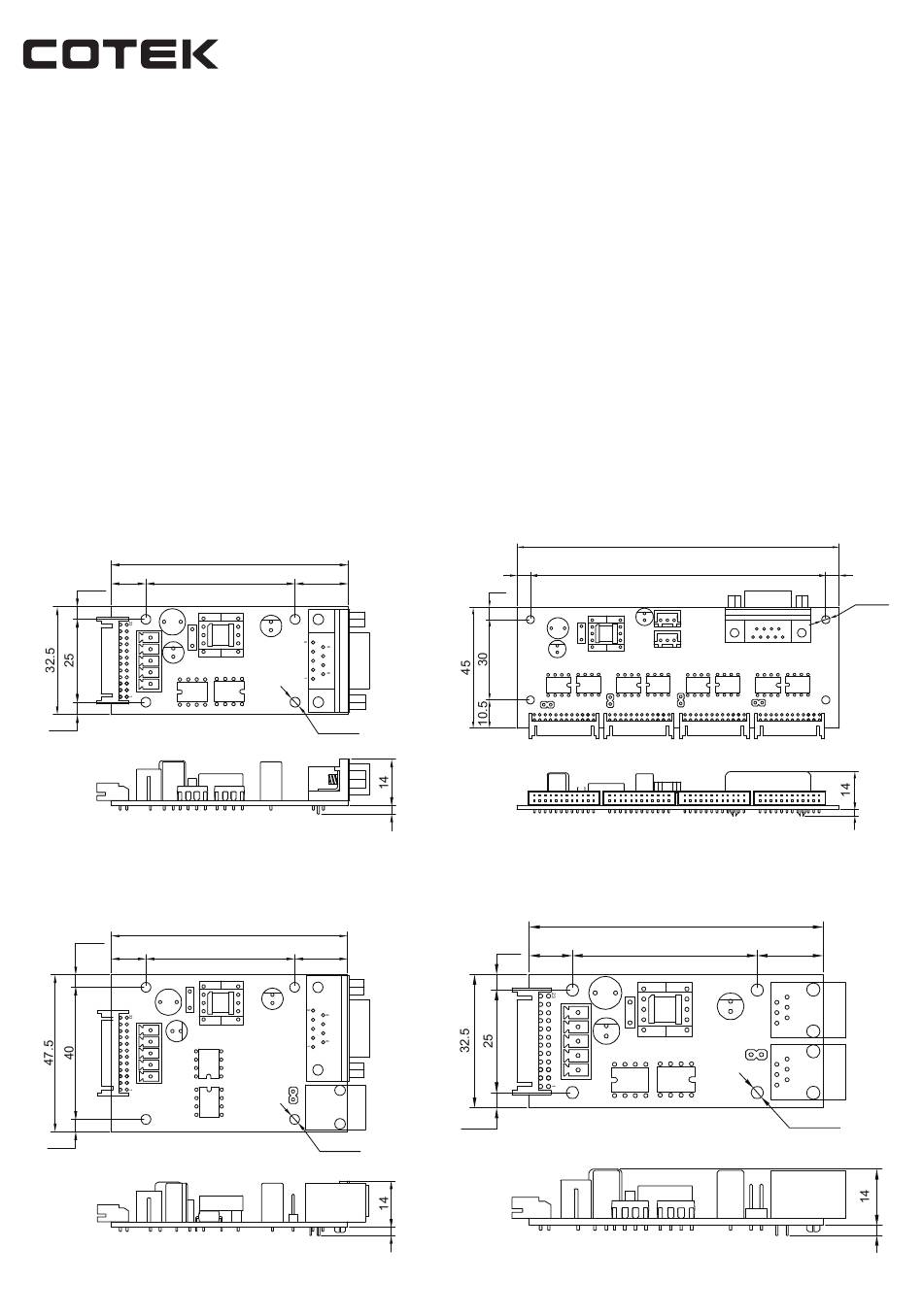

3. Mechanical dimension
MODEL: CT-201
10.5
3.75
5
4
3
2
1
CN2
CN1
3.75
MODEL: CT-251
3.75
10.5
5
4
3
2
1
CN2
CN1
3.75
71.5
45
16
CN3
4 - Ø3
MAX 3mm
71.5
45
16
CN3
J1
4 - Ø3
MAX 3mm
MODEL: CT-204
5
4.5
JP2
JP1
CN1
23
1
23
MODEL: CT-551
3.75
10.5
5
4
3
2
1
CN2
CN1
3.75
1
120
110
CN6
9
6
CN7
5
1
CN5
JP3
JP4
JP4
CN2
CN3
CN4
1
23
1
23
MAX 3mm
71.5
45
16
6
CN3
1
J1
6
CN4
1
4 - Ø3
Unit: mm
5
4 - Ø3
1
MAX 3mm
