Pro-Elec PELB1684 Instructions

Pir mains switch

Please read these instructions carefully before use and retain for future reference.

IMPORTANT SAFETY INFORMATION

•

This sensor is suitable for any load type within the maximum rating.

•

Check that the voltage indicated on the rating plate corresponds with that of the

local network before connecting the appliance to the mains power supply.

•

The sensor is suitable for connection to a 220-240V, 50Hz supply. It is designed

for permanent connection to fixed wiring, which must be a suitable circuit protected

by an RCD within a consumer unit.

•

This sensor will only operate in low light conditions (adjustable).

PIR Mains Switch

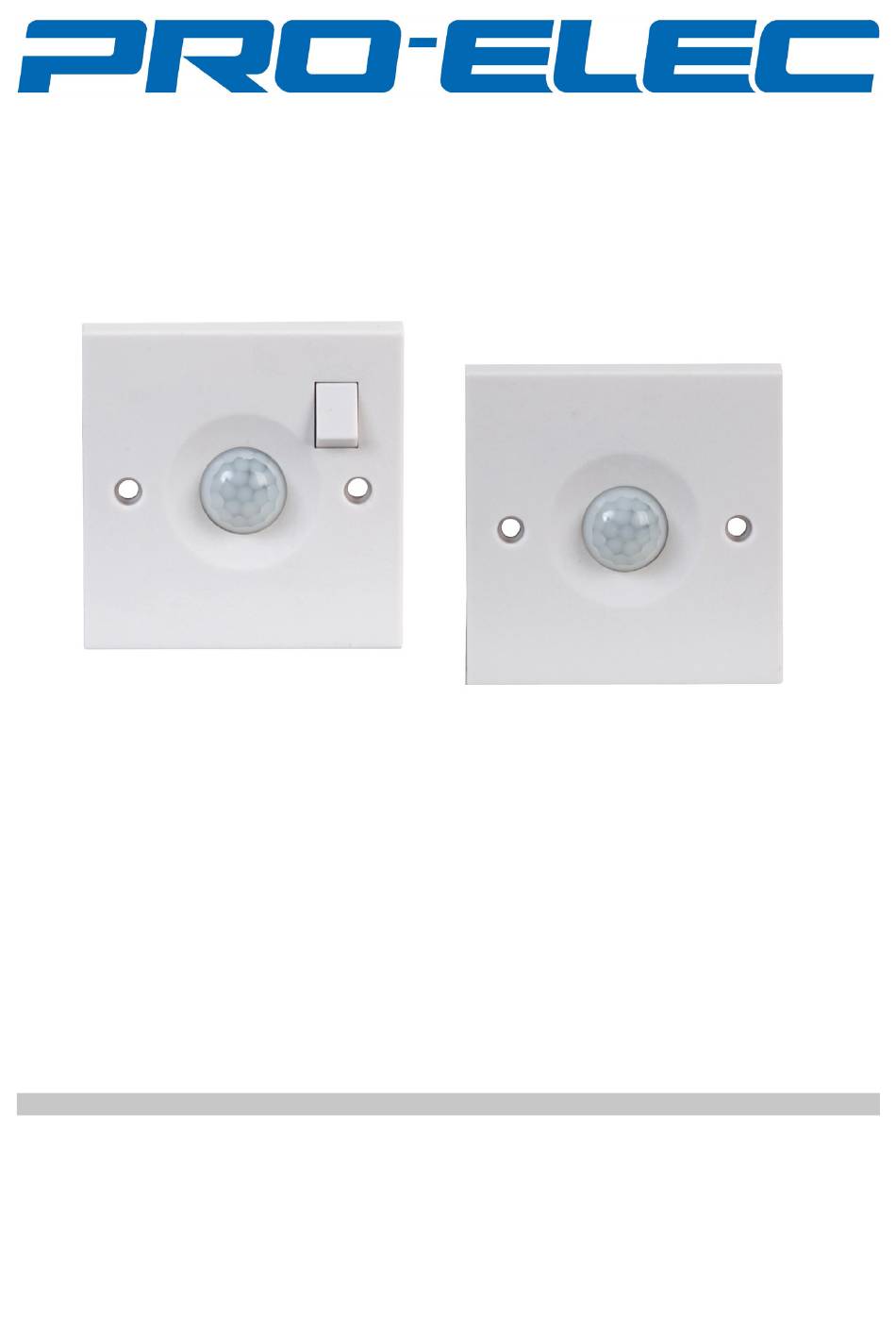

Model: PELB1684 & PELB1693

Table of Contents

Do you have a question about the PELB1684 and is the answer not in the manual?

Page 1 PIR Mains Switch Model: PELB1684 & PELB1693 Please read these instructions carefully before use and retain for future reference. IMPORTANT SAFETY INFORMATION • This sensor is suitable for any load type within the maximum rating. • Check that the voltage indicated on the rating plate corresponds with that of the local network before connecting the appliance to the mains power supply.
Page 2 INSTALLATION • This switch should be installed in accordance with BS7671 the IET Wiring Regulation. • This switch should be installed by a competent person. If in doubt consult a qualified electrician. • Isolate the mains supply before commencing installation. •...
Page 3 Locate the PIR switch in position ensuring the wiring does not become trapped before restoring the mains supply. • PELB1684 Only - Ensure the over-ride switch is in the off position as otherwise the load will be switched on permanently regardless of the PIR detection. LOAD PERMANENTLY ON...
Page 4 CLEANING & MAINTENANCE • Clean the PIR switch only with a soft dry cloth. • Do not use any chemicals, abrasives or solvents that could damage the sensor. INFORMATION ON WASTE DISPOSAL FOR CONSUMERS OF ELECTRICAL & ELECTRONIC EQUIPMENT. When this product has reached the end of its life it must be treated as Waste Electrical & Electronic Equipment (WEEE).
